Wire harness and earth locations › Roof/Seat
ElectricalRoof/Seat

Roof/Seat – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Roof/Seat

Note: LHD type is shown, RHD type is symmetrical.

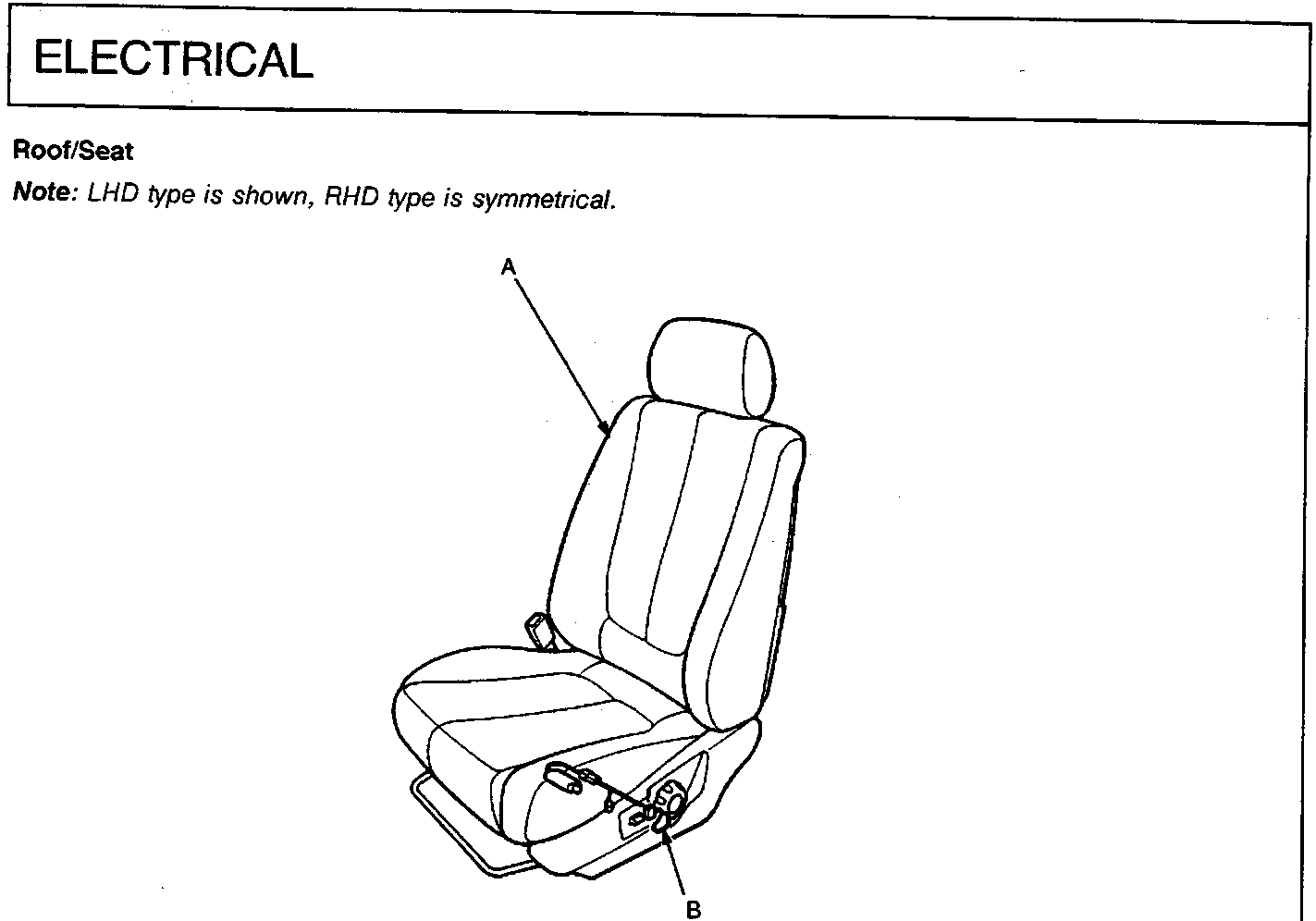

Line drawing of a car seat with callout A pointing to the headrest and callout B pointing to the side adjustment controls.

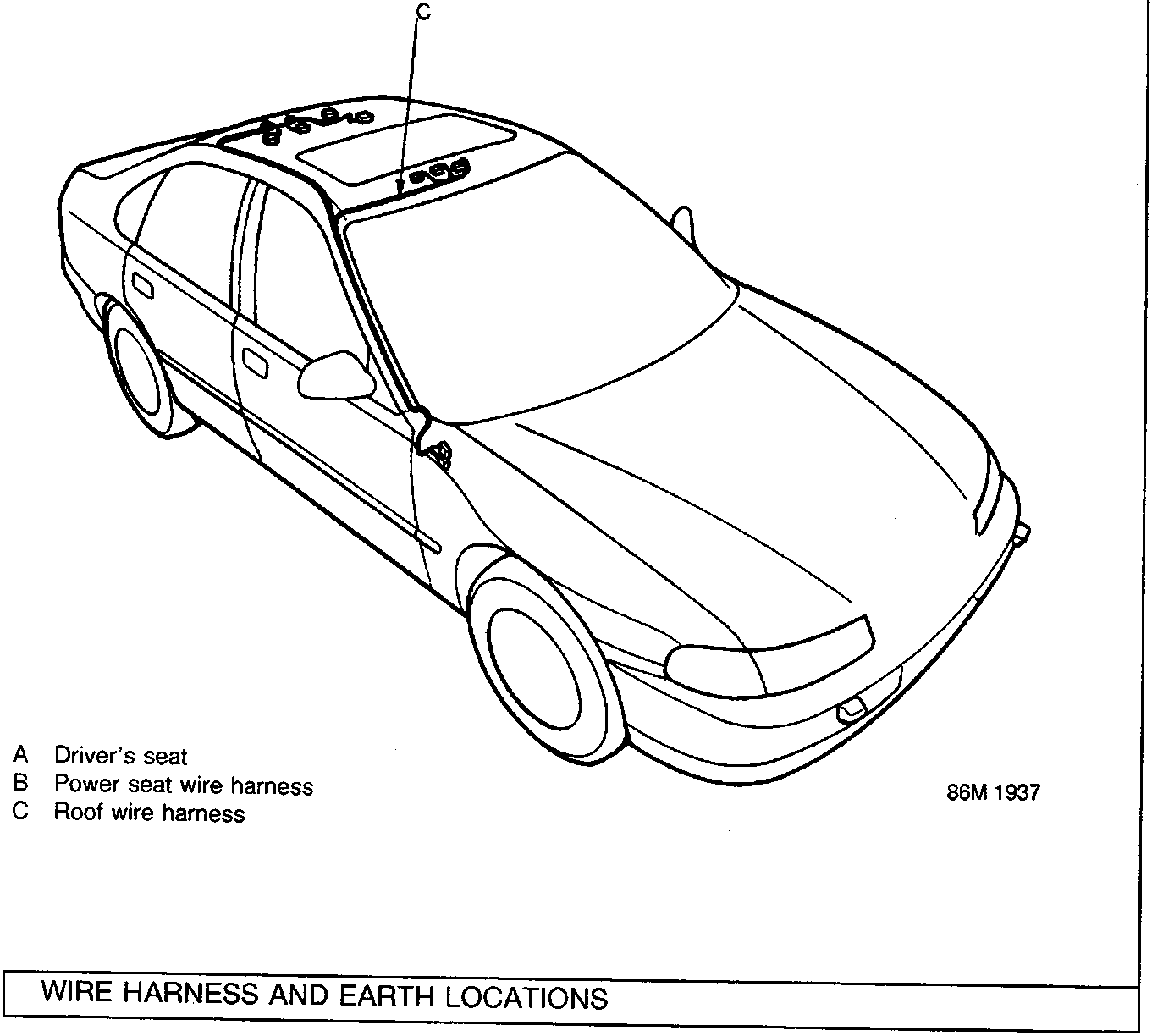

Line drawing of a car from a front three-quarter view with callout C pointing to the roof wire harness area near the windshield.
  • A Driver's seat
  • B Power seat wire harness
  • C Roof wire harness
