Wire harness and earth locations
ElectricalEngine Compartment · page 5 of 5

Engine Compartment (page 5 of 5) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Note: LHD type is shown, RHD type is similar.

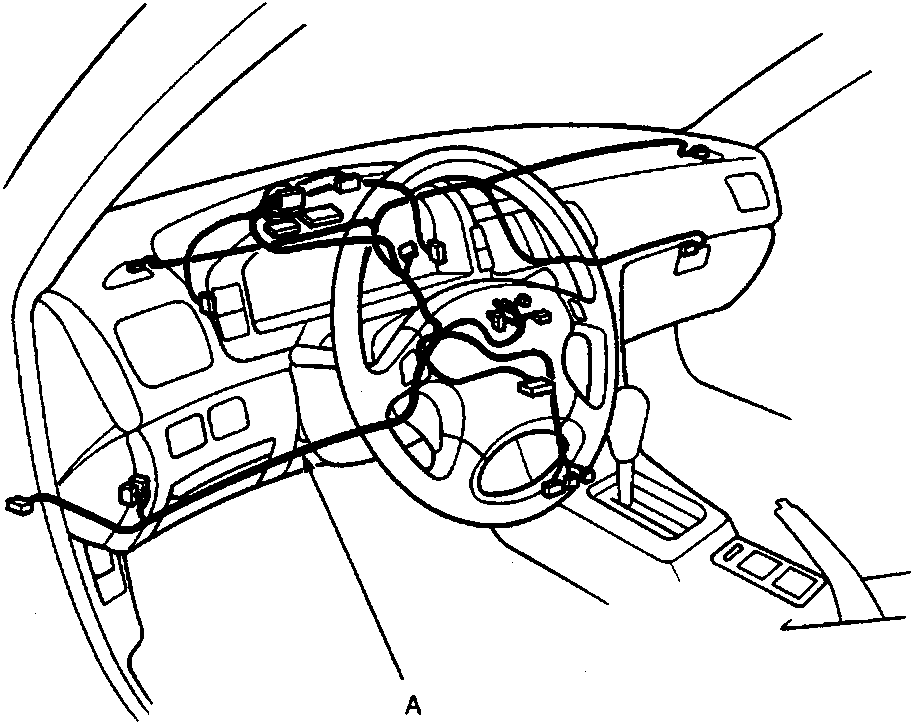

Diagram of the left-hand drive dashboard showing the routing of the dashboard wire harness (A) around the steering column and instrument panel.

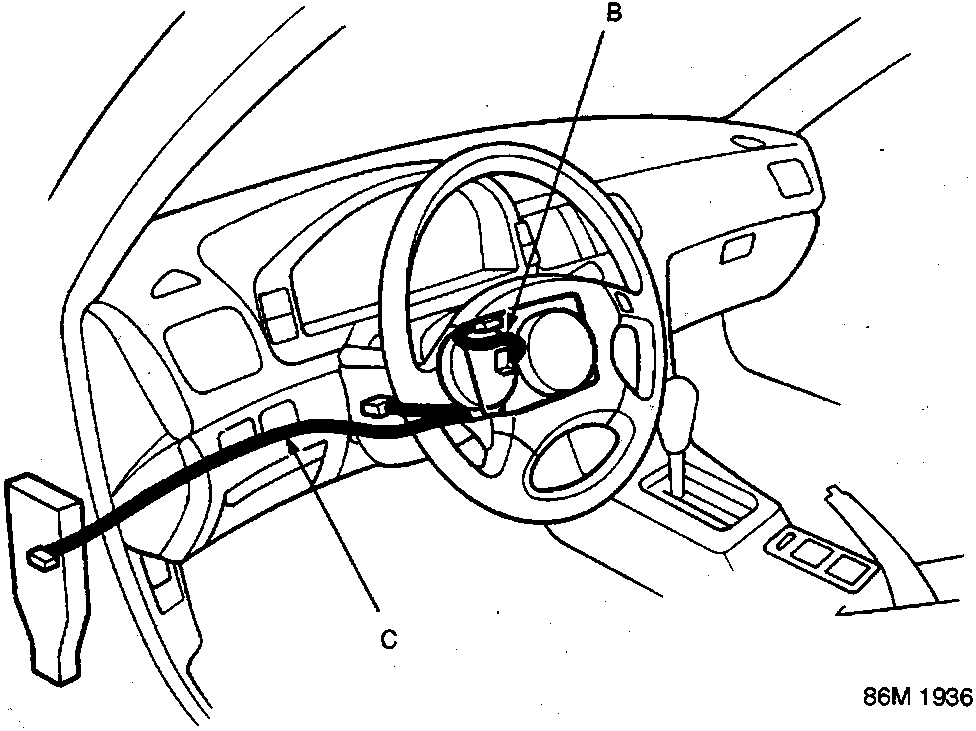

Diagram of the left-hand drive dashboard showing the SRS sub harness (B) and SRS main harness (C) routed through the steering column area and along the lower dashboard.
  • A Dashboard wire harness
  • B SRS sub harness
  • C SRS main harness
