Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

G201

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Wire harness and earth locations › G201
ElectricalG201

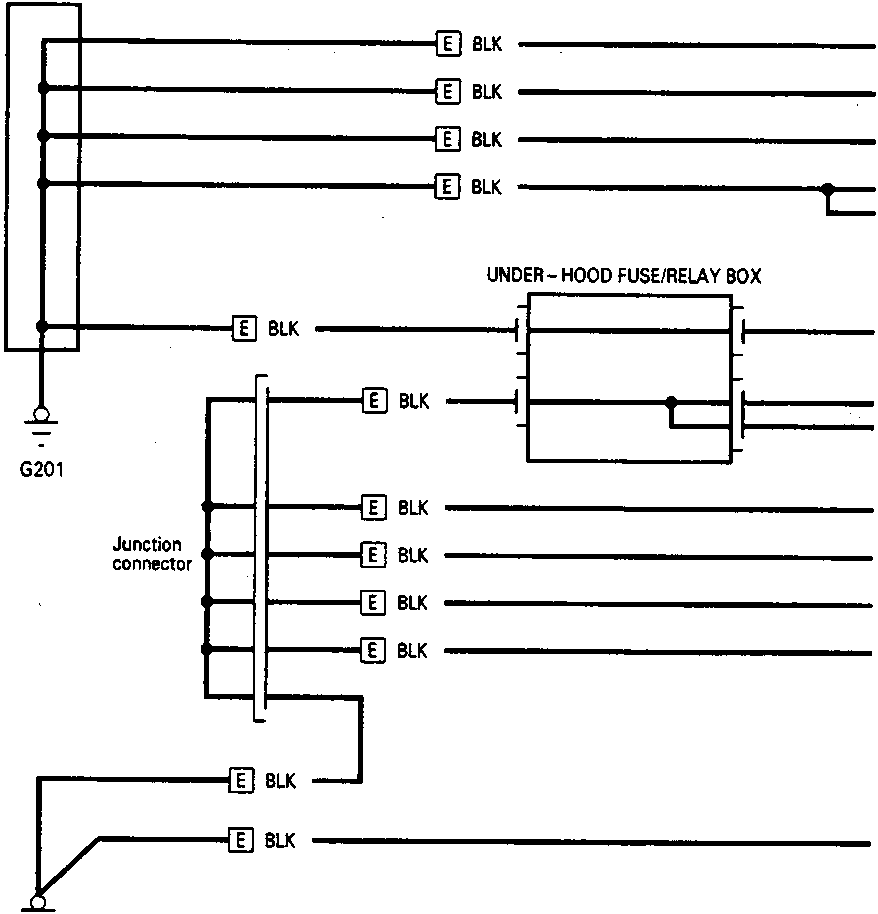

Electrical circuit diagram showing connections for right-side components including headlight, turn signal, radiator fan, hood switch, ABS pressure switch, power window relay, dimmer relay, windshield wiper intermittent relay, headlight washer control unit, dim-dip headlight control unit, brake fluid level switch, combination light switch, and windshield wiper motor.

UNDER ~ HOOD FUSE/RELAY BOX

  • Right headlight/parking light
  • Right front turn signal light
  • Radiator fan motor
  • Hood switch (With security alarm system)
  • ABS pressure switch
  • Power window relay
  • Dimmer relay
  • Windshield wiper intermittent relay
  • Headlight washer control unit
  • Dim – dip headlight control unit
  • Brake fluid level switch
  • Combination light switch
  • Windshield wiper motor

G201

Junction connector

G203

G202

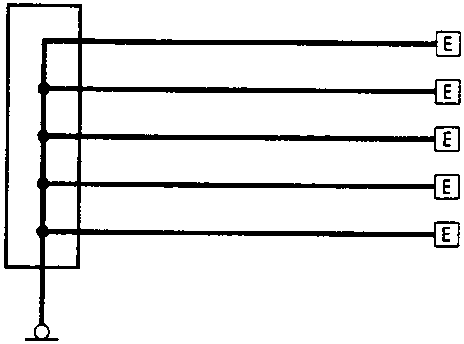

Electrical circuit diagram showing connections for left-side components including headlight, turn signal, vehicle speed sensor (VSS), windshield washer motor, and headlight washer motor.
  • Left headlight/parking light
  • Left front turn signal light
  • Vehicle speed sensor (VSS)
  • Windshield washer motor
  • Headlight washer motor

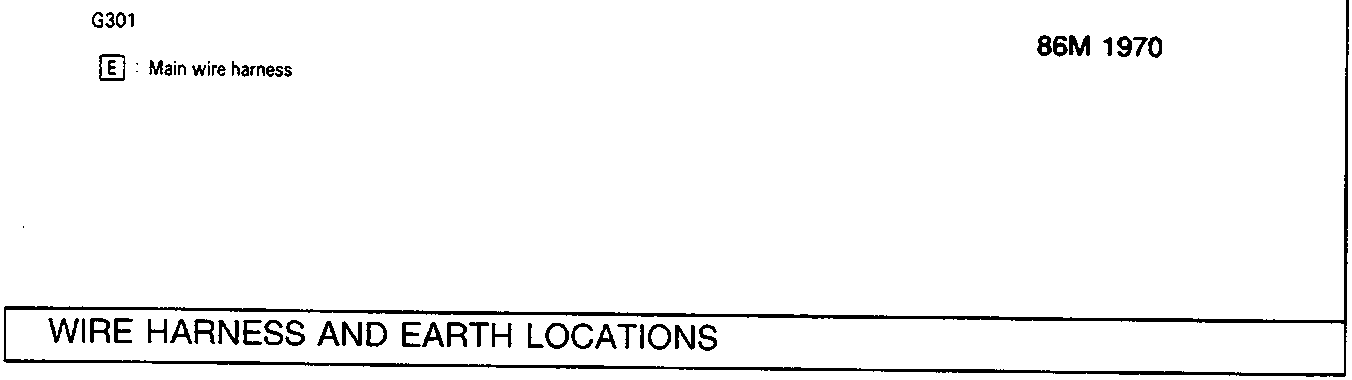

Main wire harness diagram labeled G301.

G301

E : Main wire harness

86M 1970

WIRE HARNESS AND EARTH LOCATIONS
