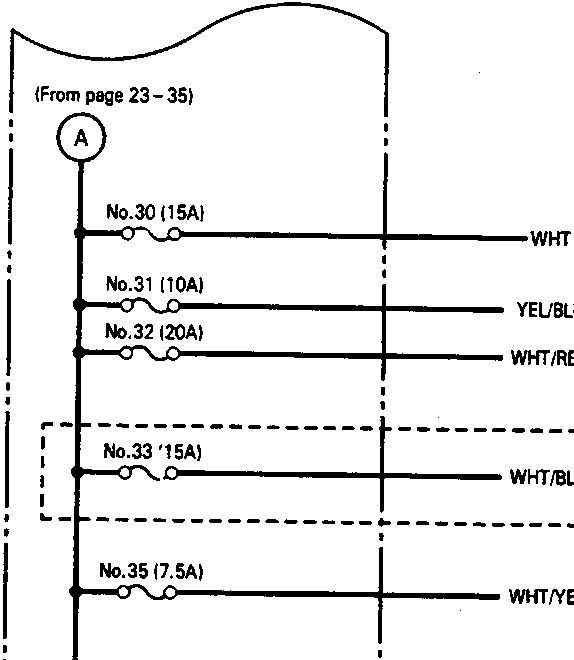

Under-hood fuse/relay box

UNDER-HOOD FUSE/RELAY BOX

(From page 23–35)

• No.30 (15A) — WHT — Condenser fan motor
  Radiator fan control module
• No.31 (10A) — YEL/BLU — PGM—FI main relay (+B)
• No.32 (20A) — WHT/RED — Power seat up–down motor
• No.33 (15A) — WHT/BLK — Left
  Right } seat heater
• No.35 (7.5A) — WHT/YEL — Engine control module (ECM)
  Transmission control module (TCM)
  Clock (+B)
  Stereo radio/cassette player

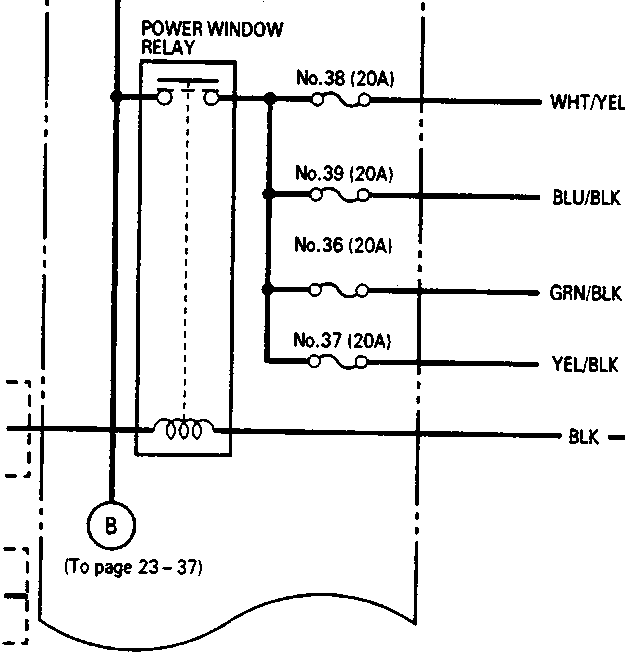

POWER WINDOW RELAY

(Without key–off operation system)

• No.5 (7.5A) FUSE
  (From page 23–41) — YEL/GRN

(To page 23–37)

• No.38 (20A) — WHT/YEL — Master power window switch
  Driver’s power window motor
  Key–off operation control unit
• No.39 (20A) — BLU/BLK — Front passenger’s power window motor
  Key–off operation control unit
• No.36 (20A) — GRN/BLK — Left rear power window motor
  Key–off operation control unit
• No.37 (20A) — YEL/BLK — Right rear power window motor
  Key–off operation control unit

(With key–off operation system)

• KEY–OFF OPERATION CONTROL UNIT — YEL/GRN

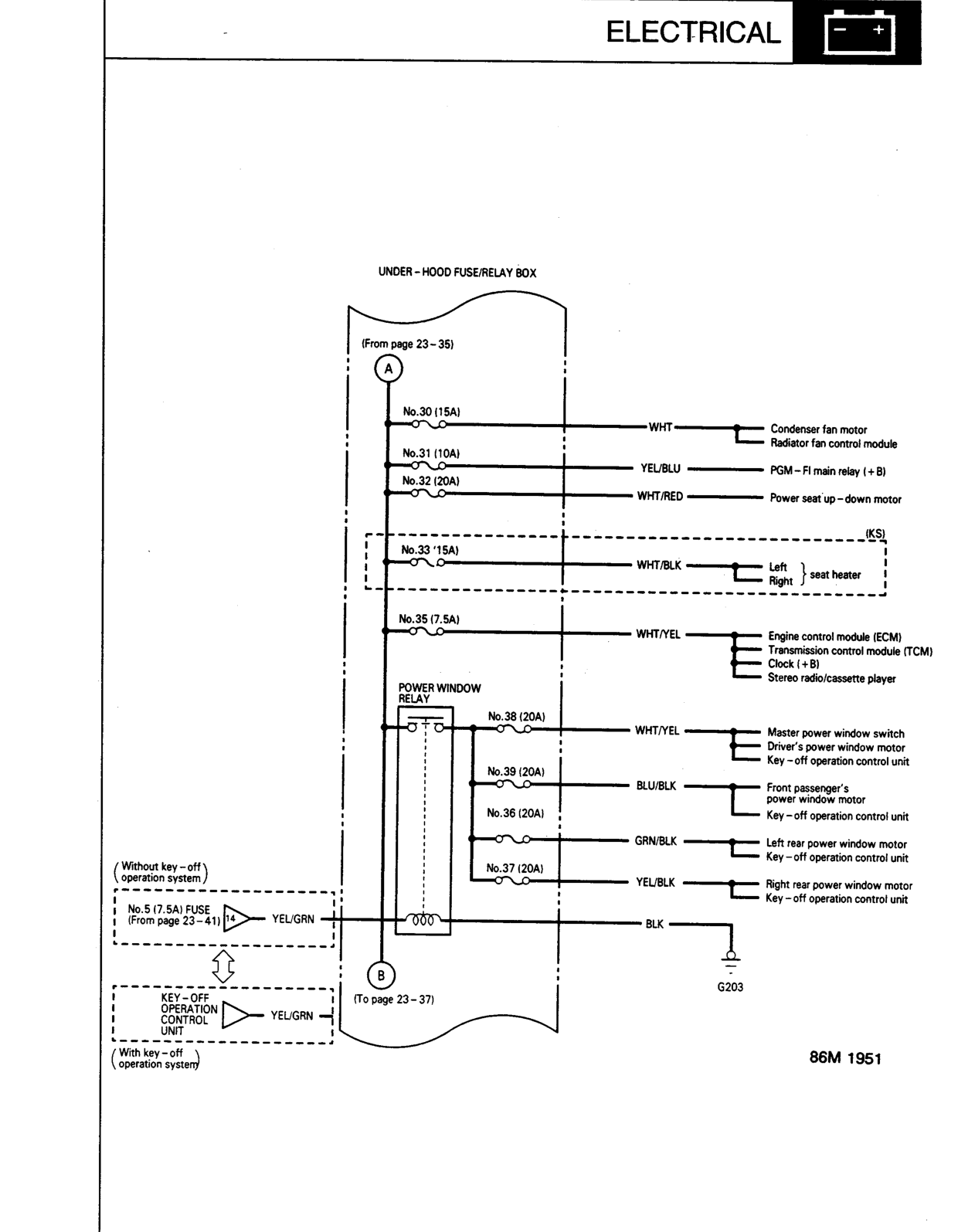

Original page
