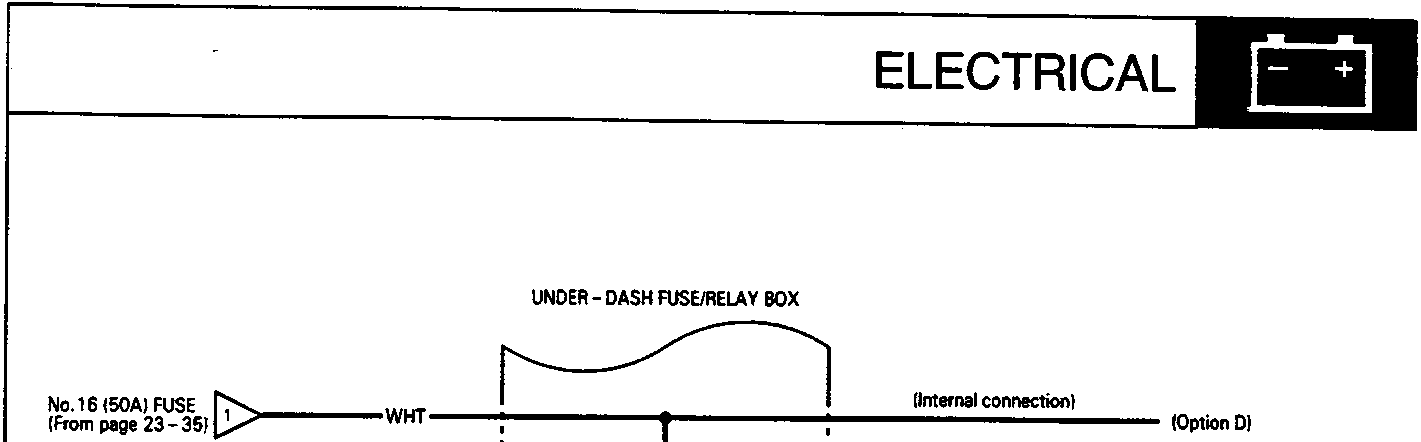

Under – dash fuse/relay box

UNDER – DASH FUSE/RELAY BOX

No. 16 (50A) FUSE (From page 23–35)

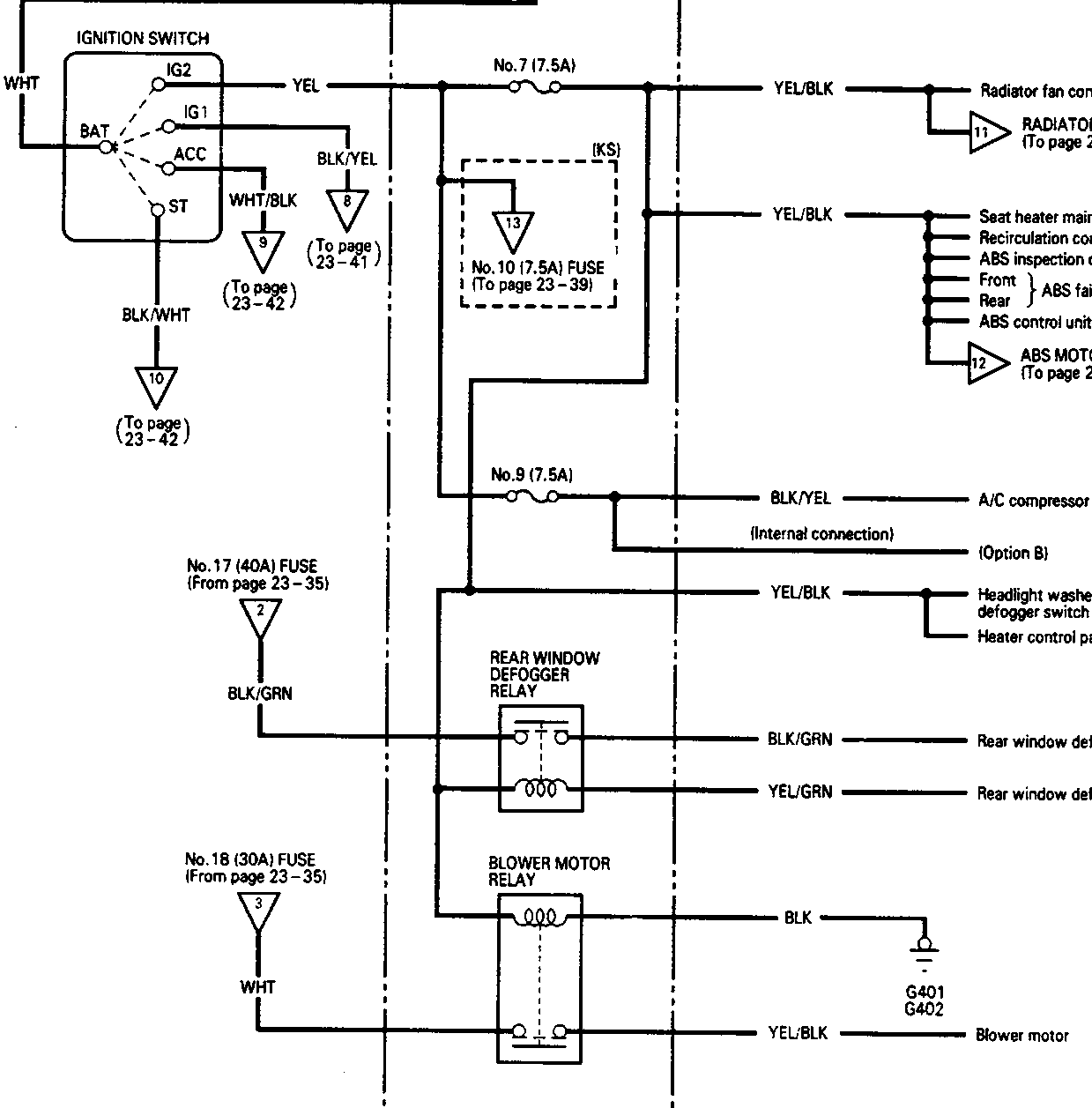

IGNITION SWITCH

WHT

• IG2 — YEL
• IG1 — BLK/YEL
• ACC — WHT/BLK (To page 23–41)
• ST — BLK/WHT (To page 23–42)

No.7 (7.5A)

• YEL/BLK — Radiator fan control module
• YEL/BLK — Seat heater main relay (KS)
• YEL/BLK — Recirculation control motor
• YEL/BLK — ABS inspection connector
• YEL/BLK — Front ABS fail – safe relay
• YEL/BLK — Rear ABS control unit

No.10 (7.5A) FUSE (To page 23–39)

• (KS)

No.9 (7.5A)

• BLK/YEL — A/C compressor clutch relay (Option B)
• YEL/BLK — Headlight washer/rear window defogger switch
• YEL/BLK — Heater control panel

No.17 (40A) FUSE (From page 23–35)

• BLK/GRN — Rear window defogger
• YEL/GRN — Rear window defogger switch

No.18 (30A) FUSE (From page 23–35)

• WHT — Blower motor

REAR WINDOW DEFOGGER RELAY

BLK/GRN — Rear window defogger

YEL/GRN — Rear window defogger switch

BLOWER MOTOR RELAY

BLK — G401 G402 Blower motor

YEL/BLK — Blower motor

RADIATOR FAN RELAY

(To page 23–35)

ABS MOTOR RELAY

(To page 23–35)
