Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

86M 1960

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Wire harness and earth locations › 86M 1960
Electrical86M 1960 · page 1 of 2

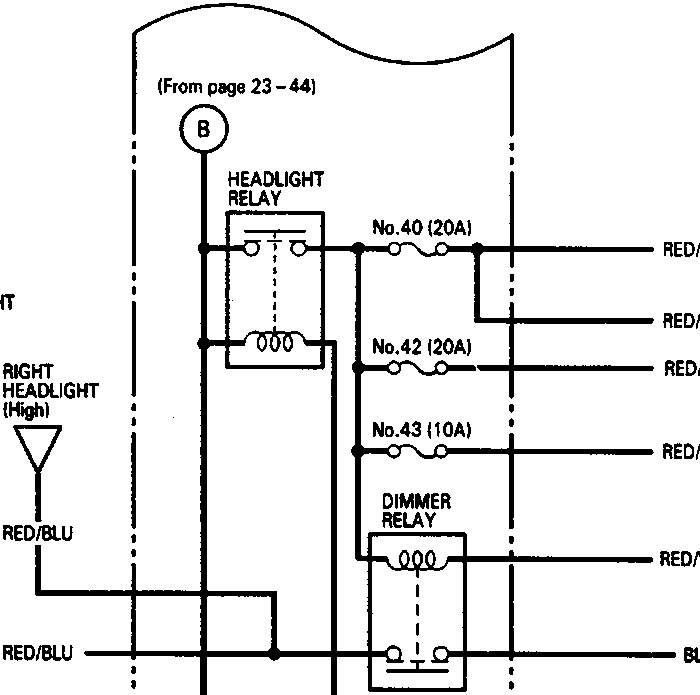

Electrical wiring diagram showing the under-hood fuse/relay box with headlight relay, dimmer relay, fuses No.40, No.42, No.43, No.19, No.20, No.27, auxiliary fuse holder No.13, and connections to combination light switch, DIM-DIP resistor, DIM-DIP relay, and earth G203.
UNDER-HOOD FUSE/RELAY BOX

(From page 23 – 44)

B

HEADLIGHT RELAY

  • No.40 (20A) — RED/GRN — Right headlight (Low)
    Right headlight (High)
  • No.42 (20A) — RED/GRN — High beam indicator
  • No.42 (20A) — RED/YEL — Left headlight (Low)
    Left headlight (High)
  • No.43 (10A) — RED/GRN — 4 DIM – DIP RESISTOR (KE)
    (To page 23 – 46)
  • DIMMER RELAY — RED/WHT — 5 COMBINATION LIGHT SWITCH
    (To page 23 – 46)
  • BLK — G203
  • BLU — 6 COMBINATION LIGHT SWITCH
    (To page 23 – 46)
  • AUXILIARY FUSE HOLDER — No.19 (30A) — RED/GRN — No.13 (10A) — RED/GRN — 7 COMBINATION LIGHT SWITCH
    (To page 23 – 46)
  • No.20 (10A) — BLU/YEL — 8 DIM – DIP RELAY
    (To page 23 – 46)
  • No.27 (10A) — BLU/RED — 9 COMBINATION LIGHT SWITCH
    (To page 23 – 46)

LEFT HEADLIGHT (High)
HIGH BEAM INDICATOR

RIGHT HEADLIGHT (High)
RED/BLU
RED/BLU

86M 1960
