18 · Electrical

Engine Compartment

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Wire harness and earth locations › Engine Compartment
ElectricalEngine Compartment · page 1 of 5

Engine Compartment – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Engine Compartment

Note: LHD type is shown, RHD type is similar.

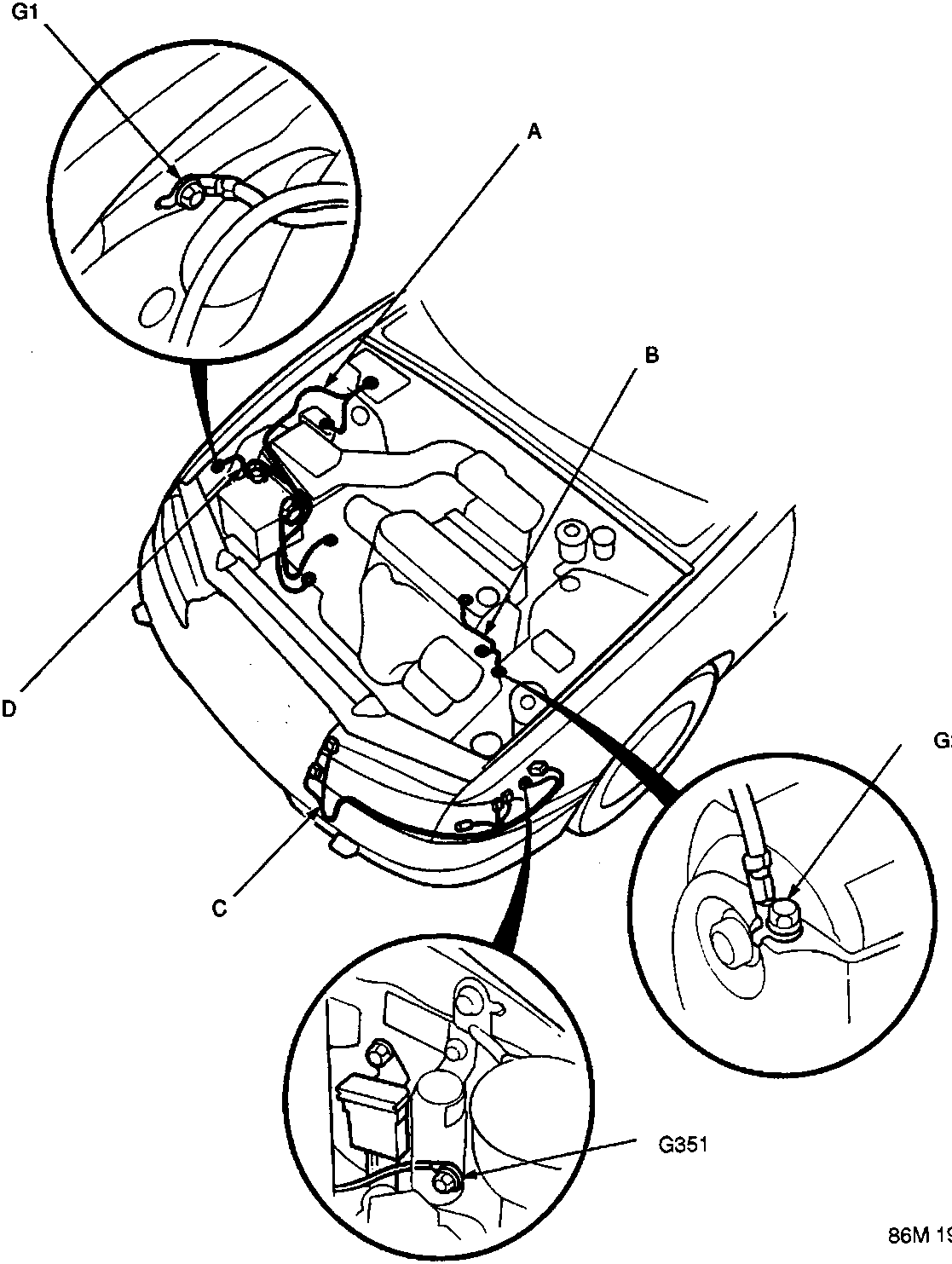

Diagram of the engine compartment showing wire harness and earth locations with callouts A, B, C, D and detailed insets G1, G2, G351.
  • A Starter cables
  • B Engine earth wires
  • C A/C wire harness
  • D Battery earth cables
