Wire harness and earth locations
ElectricalEngine Compartment · page 3 of 5

Engine Compartment (page 3 of 5) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Note: LHD type is shown, RHD type is similar.

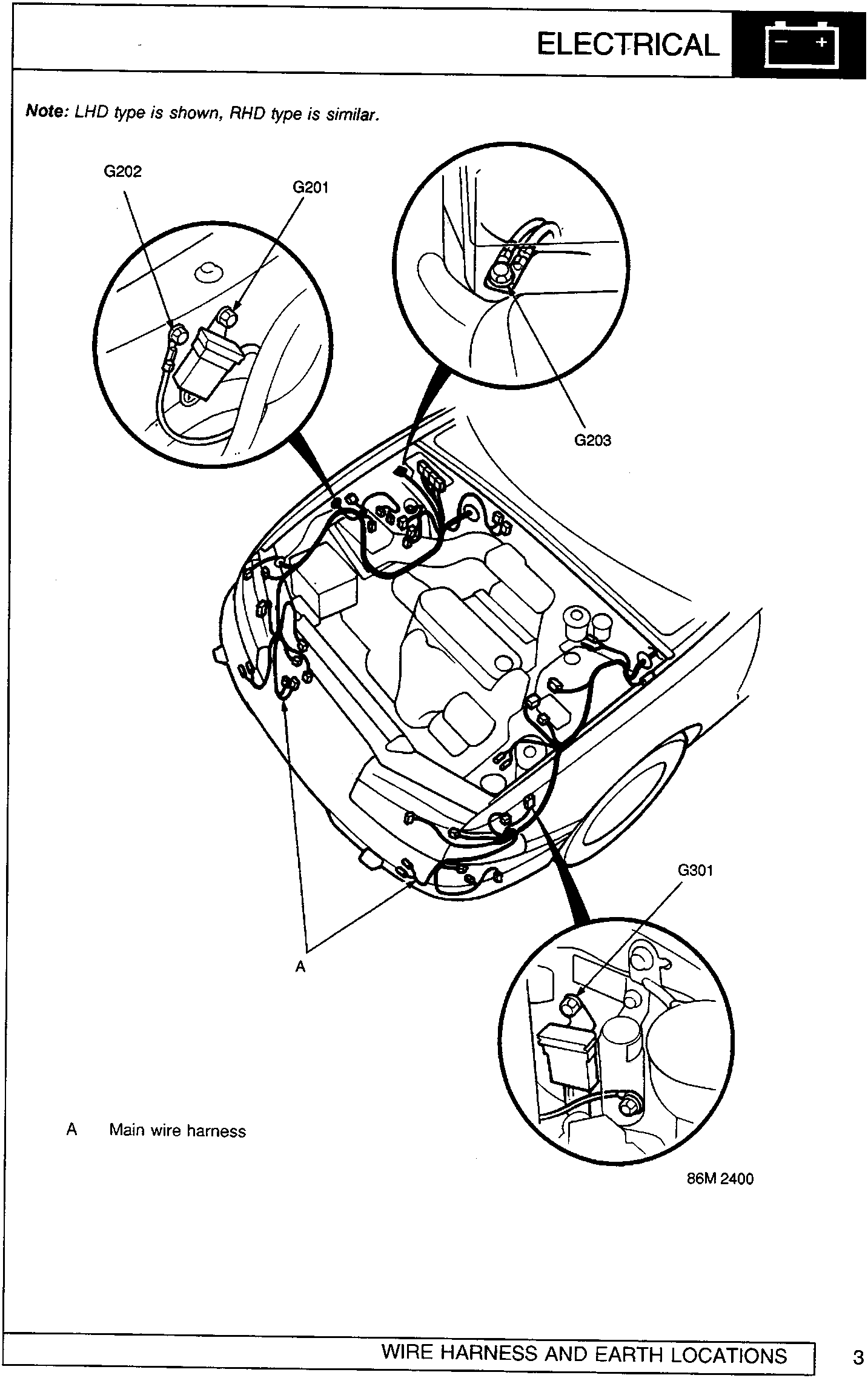

Diagram of the engine bay showing the main wire harness (A) and three magnified circular callouts indicating earth connection points G201, G202, G203, and G301.
  • A Main wire harness
