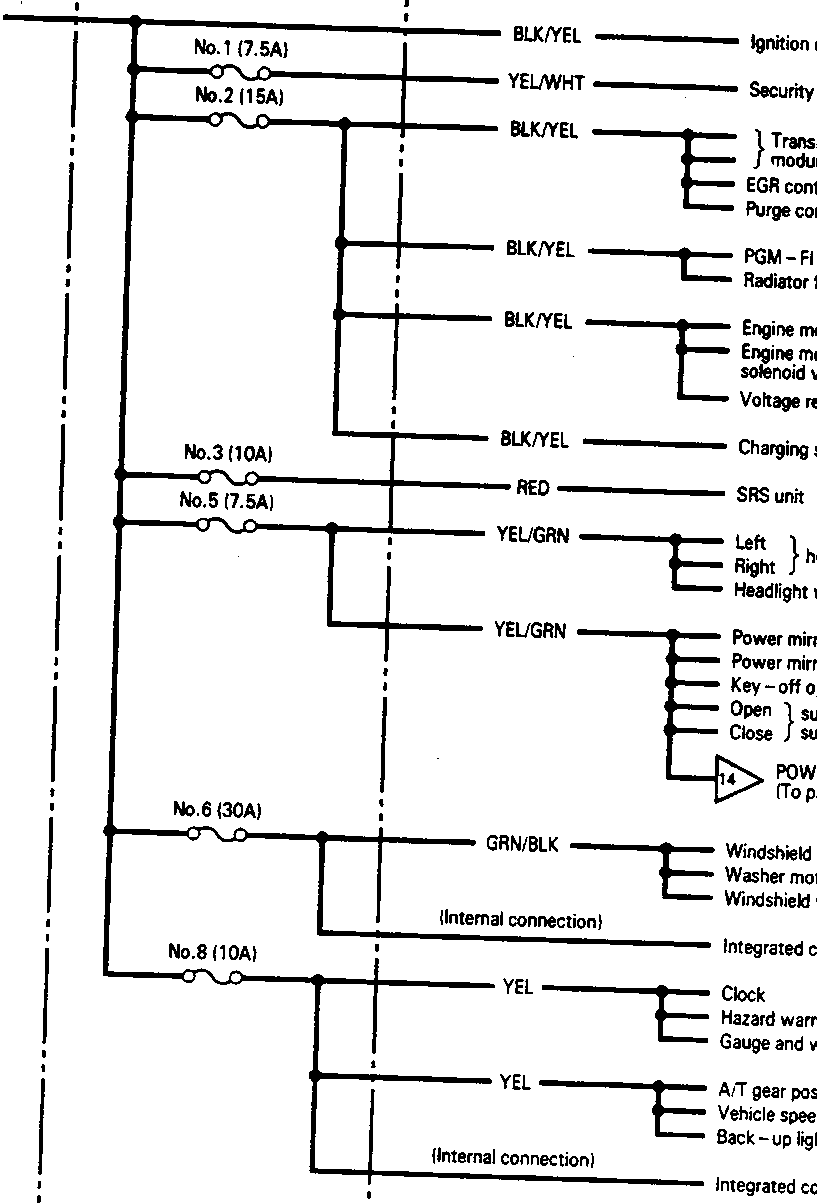

Under–dash fuse/relay box

UNDER–DASH FUSE/RELAY BOX

IGNITION SWITCH (IG1) (From page 23–40)

• No.1 (7.5A) — BLK/YEL — Ignition coil
• No.2 (15A) — YEL/WHT — Security alarm control unit
• BLK/YEL — Transmission control module (TCM)
• BLK/YEL — EGR control solenoid valve
• BLK/YEL — Purge control solenoid valve
• BLK/YEL — PGM – Fi main relay
• BLK/YEL — Radiator fan control module
• BLK/YEL — Engine mount control unit (A/T)
• BLK/YEL — Engine mount control solenoid valve
• BLK/YEL — Voltage regulator
• No.3 (10A) — Charging system light
• No.5 (7.5A) — RED — SRS unit
• YEL/GRN — Left headlight adjuster unit (KG)
• YEL/GRN — Right headlight washer control unit
• Power mirrors
• Power mirror defogger
• Key–off operation control unit
• Open sunroof relay, and
• Close sunroof motor
• No.6 (30A) — GRN/BLK — Windshield wiper motor
• Washer motors
• Windshield wiper intermittent relay
• (Internal connection)
• Integrated control unit
• No.8 (10A) — YEL — Clock
• Hazard warning lights/relay
• Gauge and warning/indicator lights
• YEL — A/T gear position switch
• Vehicle speed sensor (VSS)
• Back–up lights
• (Internal connection)
• Integrated control unit

POWER WINDOW RELAY (To page 23–36)
