G501

G501

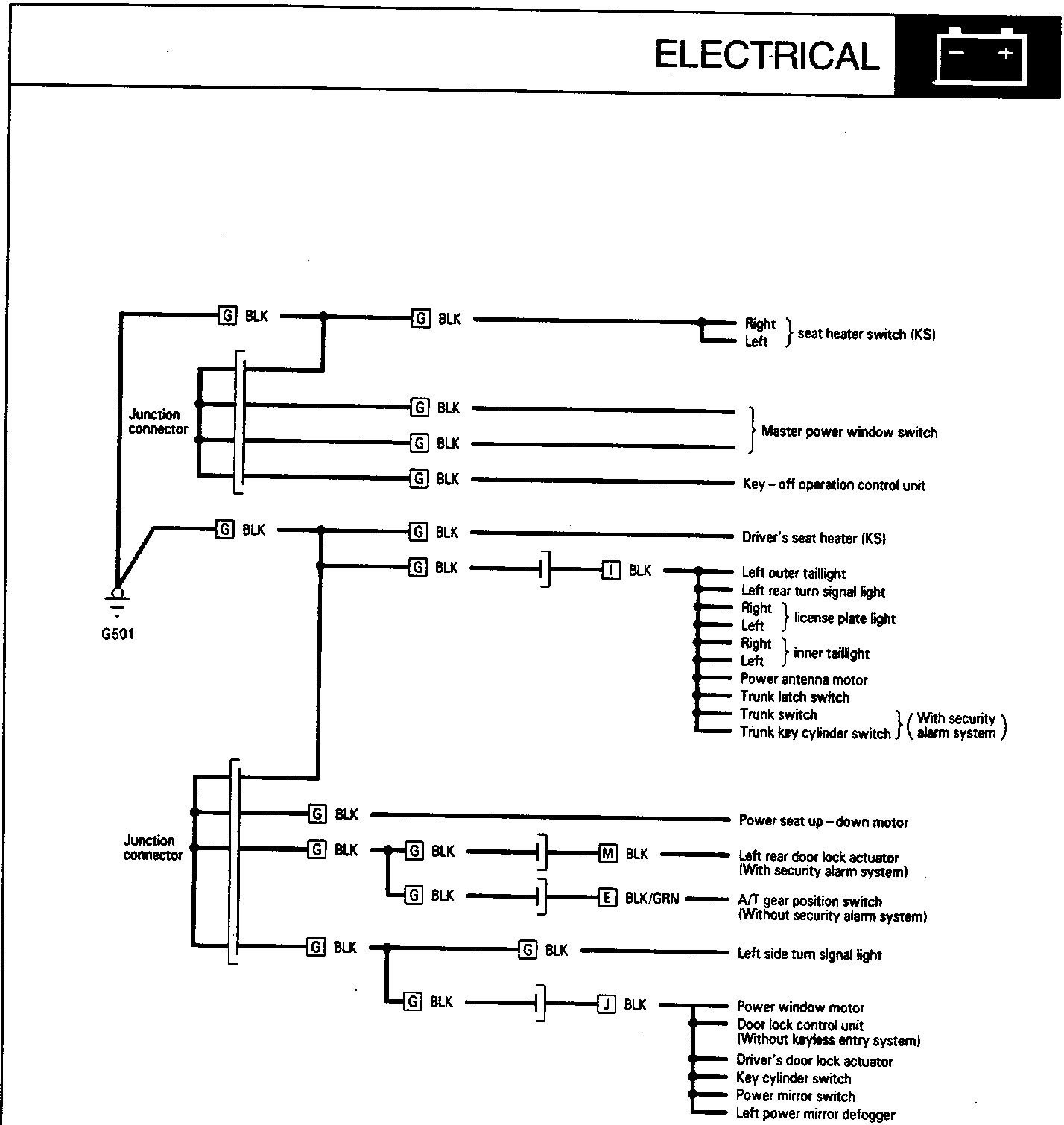

Junction connector

• Right Left } seat heater switch (KS)
• Master power window switch
• Key – off operation control unit
• Driver’s seat heater (KS)
• Left outer taillight
• Left rear turn signal light
• Right Left } license plate light
• Right Left } inner taillight
• Power antenna motor
• Trunk latch switch
• Trunk switch
• Trunk key cylinder switch } (With security alarm system)
• Power seat up – down motor
• Left rear door lock actuator (With security alarm system)
• A/T gear position switch (Without security alarm system)
• Left side turn signal light
• Power window motor
• Door lock control unit (Without keyless entry system)
• Driver’s door lock actuator
• Key cylinder switch
• Power mirror switch
• Left power mirror defogger

E : Main wire harness

J : Driver’s door wire harness

G : Floor wire harness

M : Left rear door wire harness

I : Rear wire harness

WIRE HARNESS AND EARTH LOCATIONS
