Wire harness and earth locations › Earth distribution
ElectricalEarth distribution

EARTH DISTRIBUTION

Circuit Identification

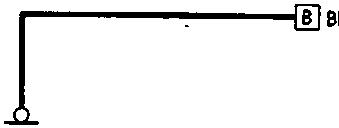

Diagram showing earth point G1 connected via B BLK wire to Battery and Transmission housing
G1

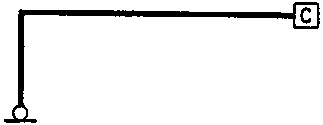

Diagram showing earth point G2 connected via C BLK wire to Engine and Valve cover
G2

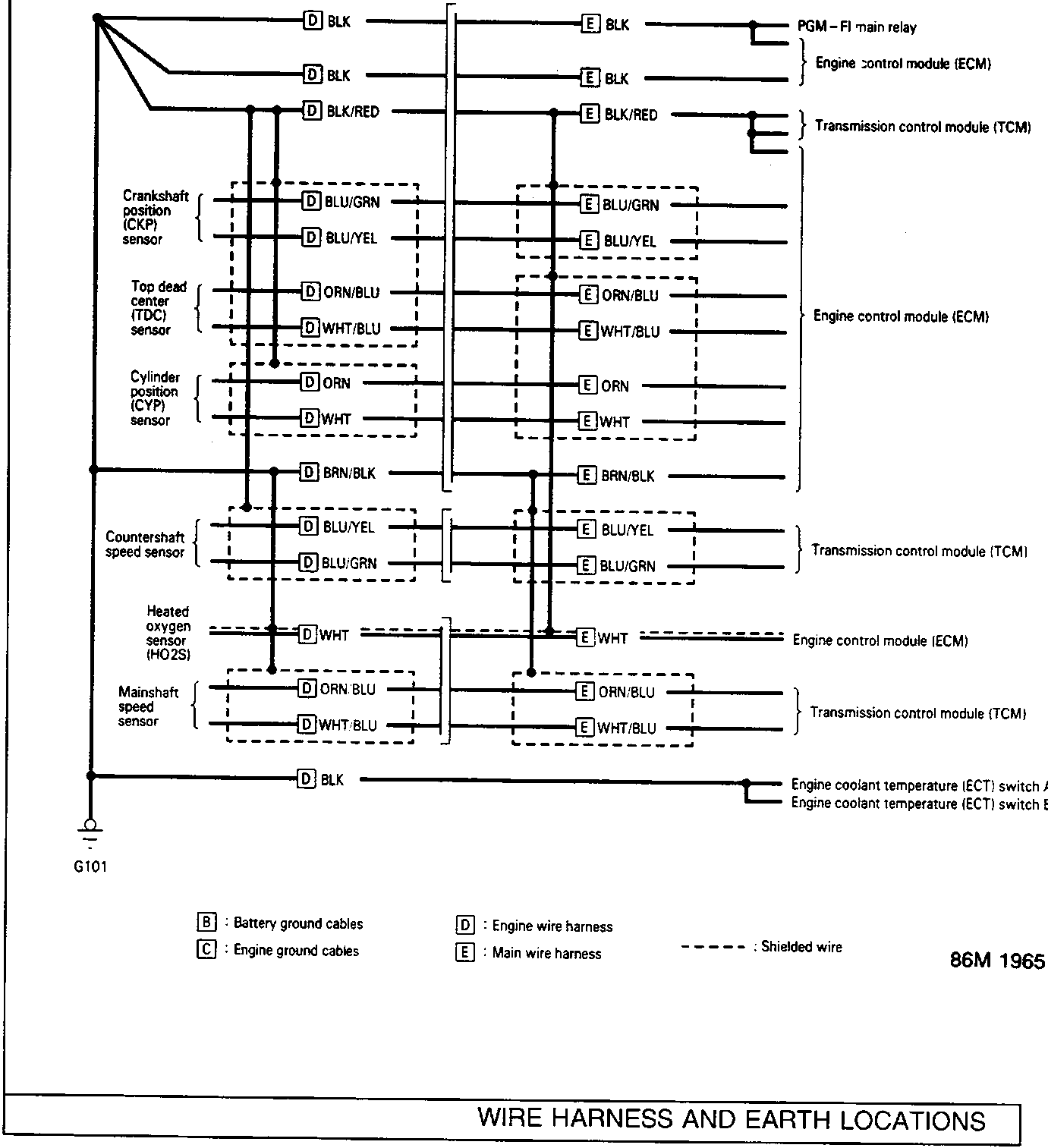

Complex wiring diagram showing connections between sensors (Crankshaft, TDC, Cylinder position, Countershaft speed, Heated oxygen, Mainshaft speed), wire harnesses (D, E), modules (ECM, TCM), relay, and earth point G101. Includes color codes for wires.
G101
B : Battery ground cablesD : Engine wire harness
C : Engine ground cablesE : Main wire harness
- - - - - : Shielded wire
86M 1965
