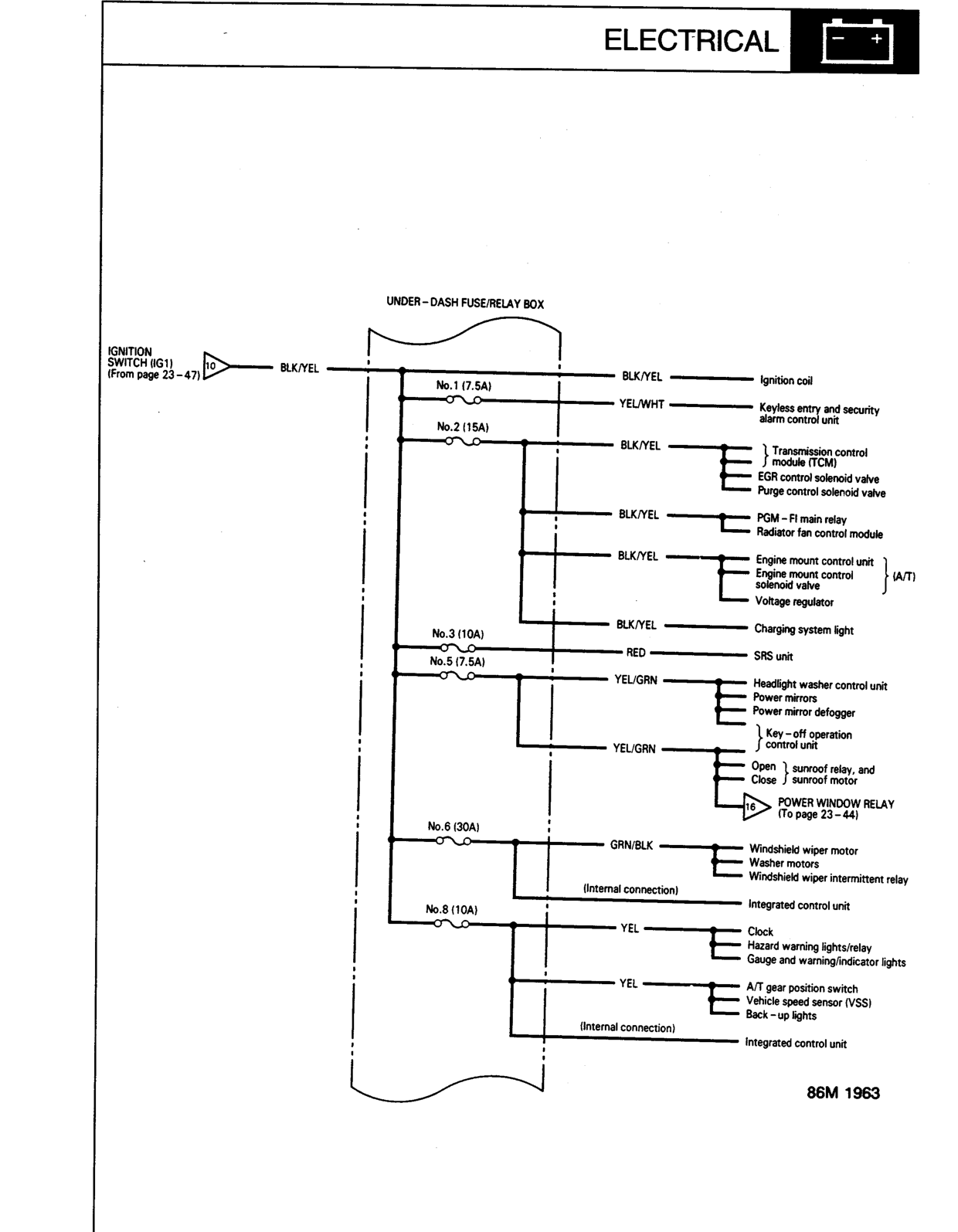

Under – dash fuse/relay box

UNDER – DASH FUSE/RELAY BOX

IGNITION SWITCH (IG1) (From page 23 – 47)

BLK/YEL

• No.1 (7.5A) BLK/YEL — Ignition coil
• No.2 (15A) YEL/WHT — Keyless entry and security alarm control unit
• BLK/YEL — Transmission control module (TCM)
• EGR control solenoid valve
• Purge control solenoid valve
• BLK/YEL — PGM – FI main relay
• Radiator fan control module
• BLK/YEL — Engine mount control unit
• Engine mount control solenoid valve
• Voltage regulator
• No.3 (10A) BLK/YEL — Charging system light
• No.5 (7.5A) RED — SRS unit
• YEL/GRN — Headlight washer control unit
• Power mirrors
• Power mirror defogger
• Key – off operation control unit
• Open — sunroof relay, and
• Close — sunroof motor
• POWER WINDOW RELAY (To page 23 – 44)
• No.6 (30A) GRN/BLK — Windshield wiper motor
• Washer motors
• Windshield wiper intermittent relay
• (Internal connection)
• Integrated control unit
• No.8 (10A) YEL — Clock
• Hazard warning lights/relay
• Gauge and warning/indicator lights
• YEL — A/T gear position switch
• Vehicle speed sensor (VSS)
• Back – up lights
• (Internal connection)
• Integrated control unit

86M 1963
