Engine Compartment (page 4 of 5)
- Make
- Rover
- Model
- 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
- Section
- Wire harness and earth locations
ElectricalEngine Compartment · page 4 of 5
Engine Compartment (page 4 of 5) – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

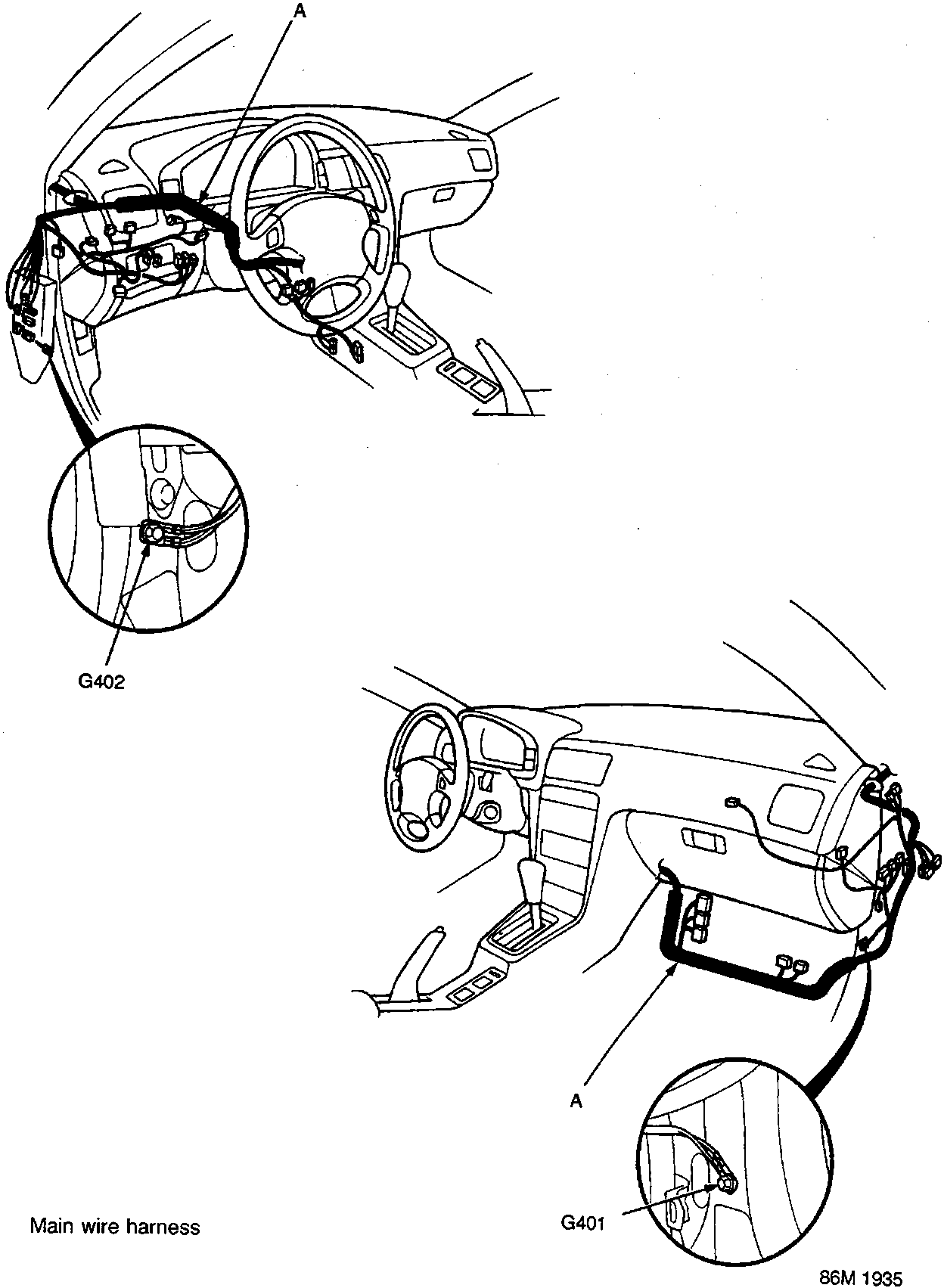

Note: LHD type is shown, RHD type is symmetrical.
- A Main wire harness
