Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

Replacement (page 2 of 7)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder block: repairs
EngineReplacement · page 2 of 7

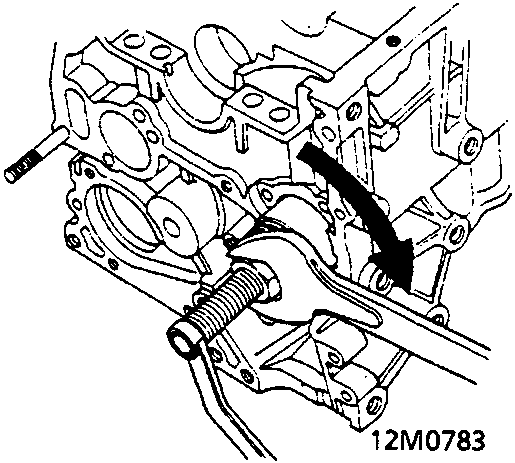

Diagram showing a wrench holding the shaft end and turning a nut on the cylinder block assembly
  1. Hold the shaft end with a wrench and turn the nut clockwise until the bearing comes off.
  • Do not rotate the shaft.
  1. When removing bearings in succession, loosen the nut, remove the stopper pin from the pin hole you have finished and repeat above steps on the next bearing.

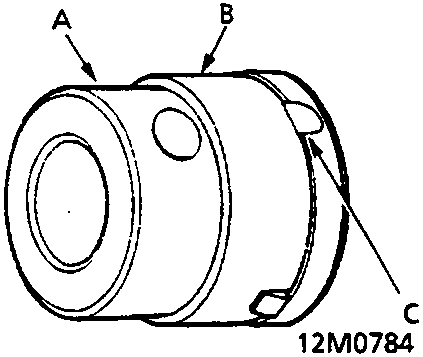

Diagram of Front No. 1 bearing with callouts A, B, and C indicating specific features

Front No. 1 bearing

AFront No. 1 Bearing
BAttachment A
CSet Here

Note: Always use new bearings.

  1. Set the recess of the bearing to the detent of the attachment.
