Cylinder block: repairs
EngineReplacement · page 4 of 7
Diagram of shaft assembly with labels A through G, showing positioning hole, pin, attachment, bearing, end disk, shaft, and detent.

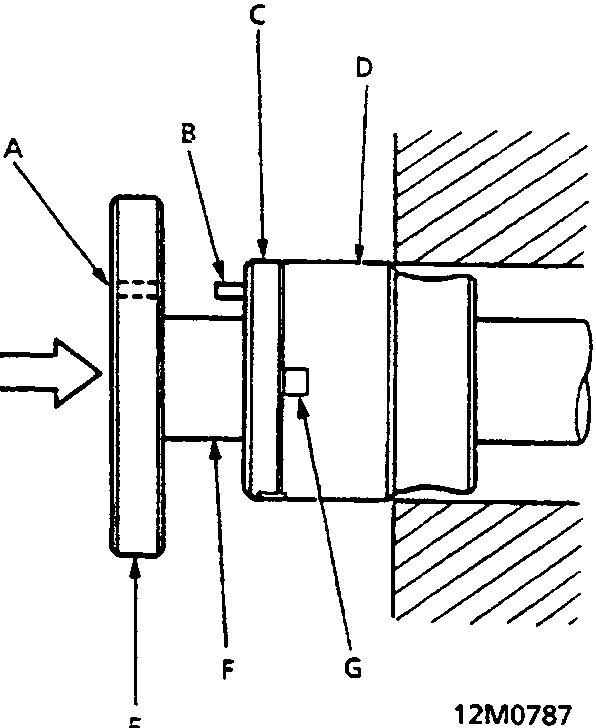

A Positioning Hole B Pin C Attachment D Bearing E End Disk F Shaft G Detent 3. Set the shaft so that the attachment pin is aligned with the positioning hole in the end disc.
Diagram of cylinder block showing bearing, attachment, groove, positioning pin, and detent labeled A through E.

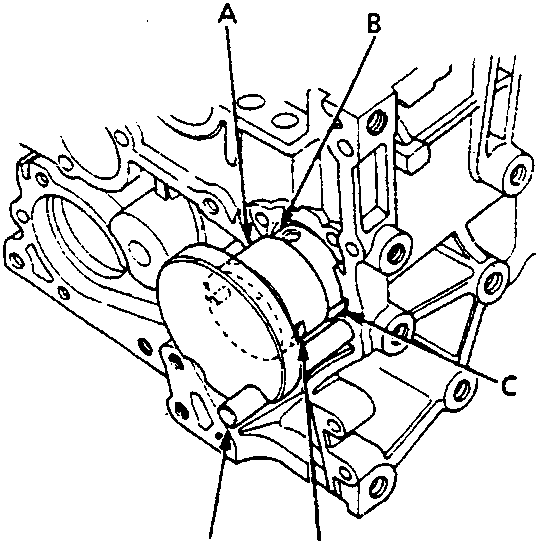

A Bearing B Attachment C Groove D Positioning Pin E Detent 4. Set the detent of the bearing to the groove of the cylinder block.
Diagram showing a wrench turning a nut on the shaft to install the bearing into the cylinder block.

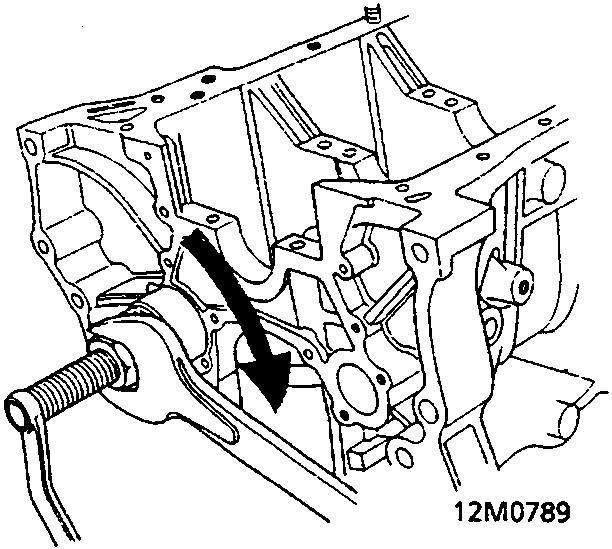

5. Hold the end of the shaft with wrench and install the bearing by turning the nut clockwise. • Do not rotate the shaft.
