Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

Replacement (page 3 of 7)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder block: repairs
EngineReplacement · page 3 of 7

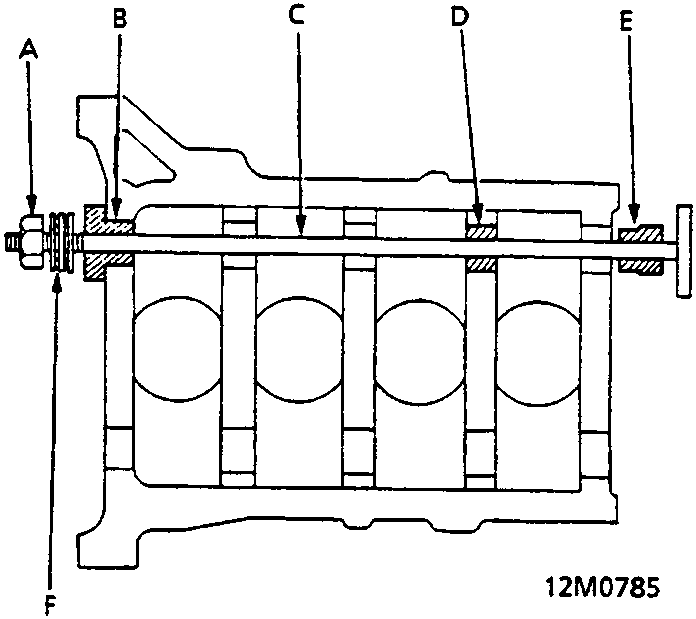

Diagram of cylinder block with alignment tool showing attachment points A through F

Attachment No.1 – Front No. 1 bearing

  1. Nut
  2. Guide
  3. Shaft
  4. Guide
  5. Attachment A
  6. Thrust Bearing

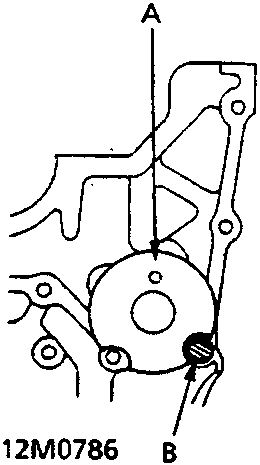

Detail view of end disk and positioning pin on cylinder block
  1. End Disk
  2. Positioning Pin
  3. Install the shaft positioning pin.
  • The illustration shows the attachment points of the special tools.
