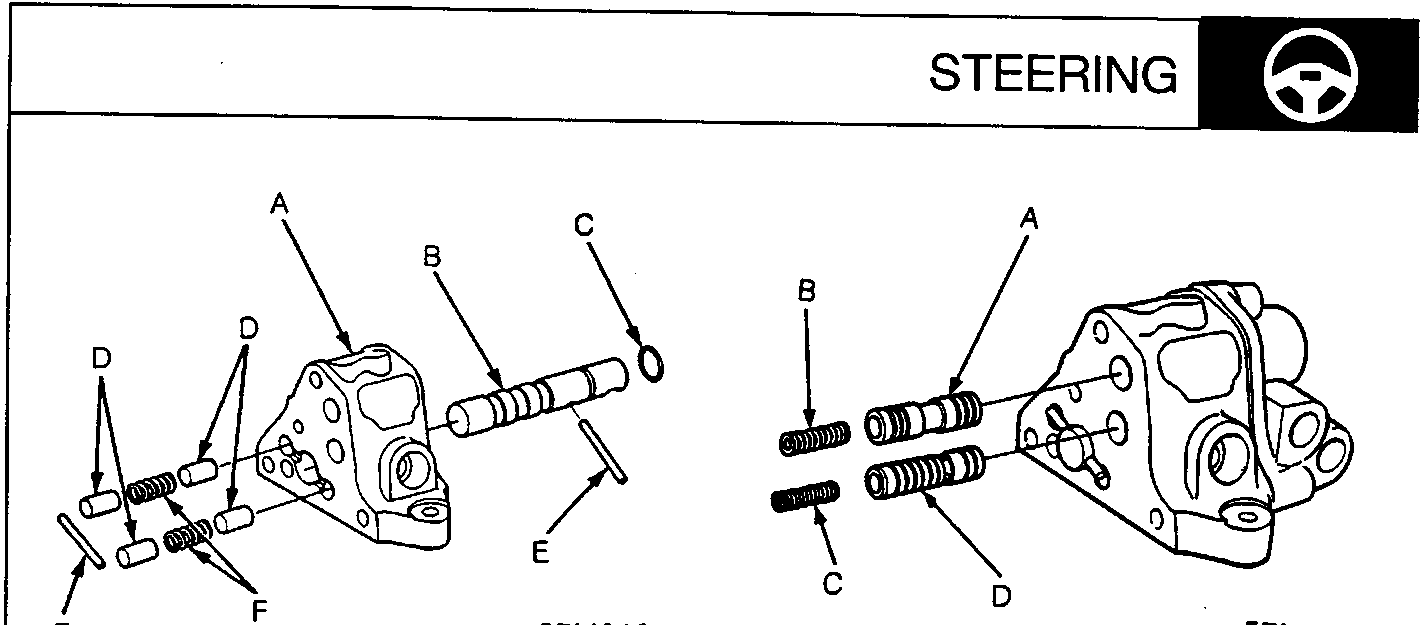

A Valve Body

B 4-way Valve

C O-ring

D Plungers

E Roller

F Return Springs

A Gain Control Valve

B Valve Spring

C Valve Spring

D Pressure Control Valve

1. Coat the new O-ring with grease and install it on the 4-way valve.
2. Install the 4-way valve, plungers, return springs and rollers into the valve body.

5. Coat the gain control valve and pressure control valve with power steering fluid and install them into the valve body.
6. Install the valve springs.

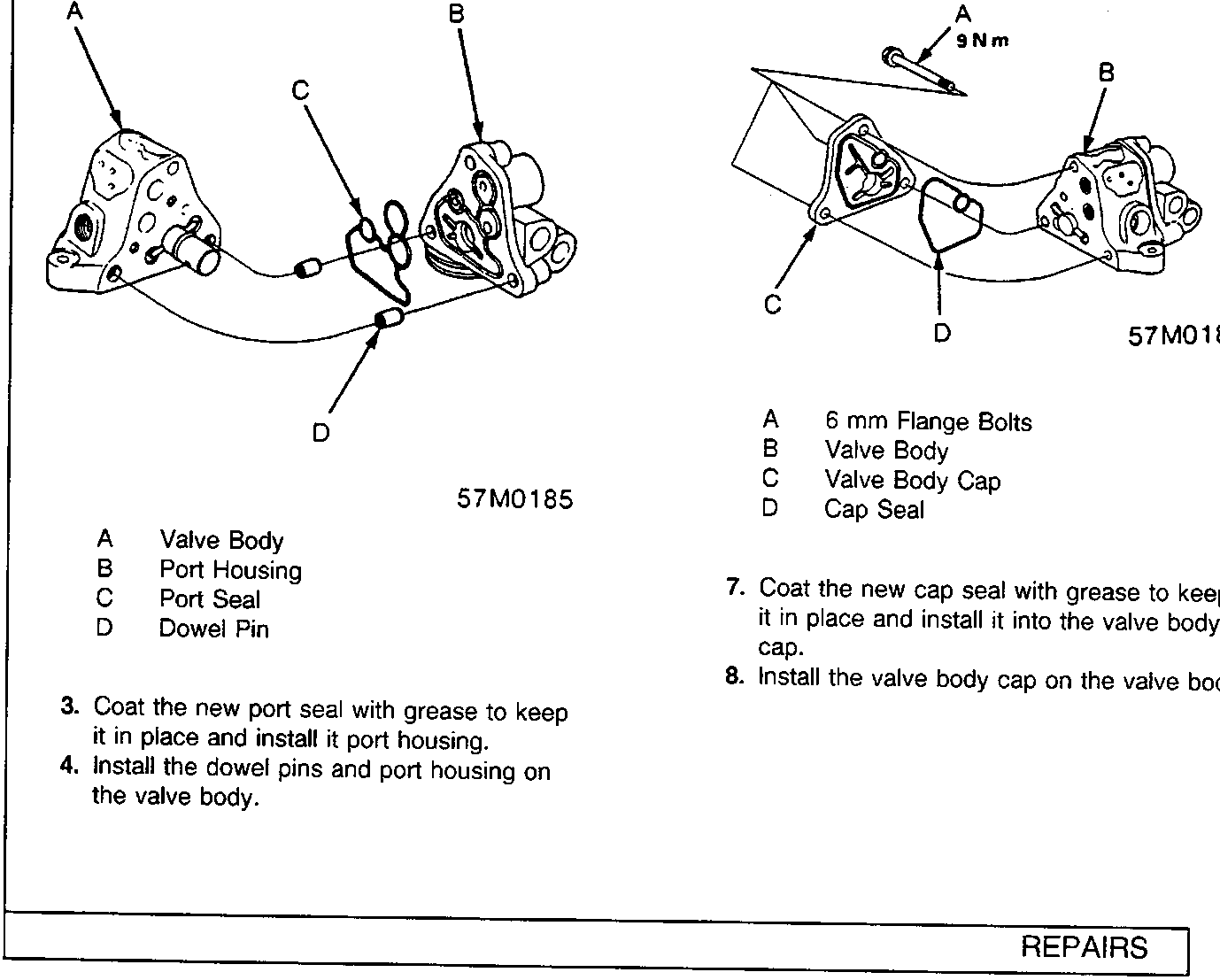

A Valve Body

B Port Housing

C Port Seal

D Dowel Pin

A 6 mm Flange Bolts

B Valve Body

C Valve Body Cap

D Cap Seal

3. Coat the new port seal with grease to keep it in place and install it port housing.
4. Install the dowel pins and port housing on the valve body.

7. Coat the new cap seal with grease to keep it in place and install it into the valve body cap.
8. Install the valve body cap on the valve body.
