Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition12 · Steering
12 · Steering & suspension

Note: (page 5 of 6)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SteeringNote: · page 5 of 6

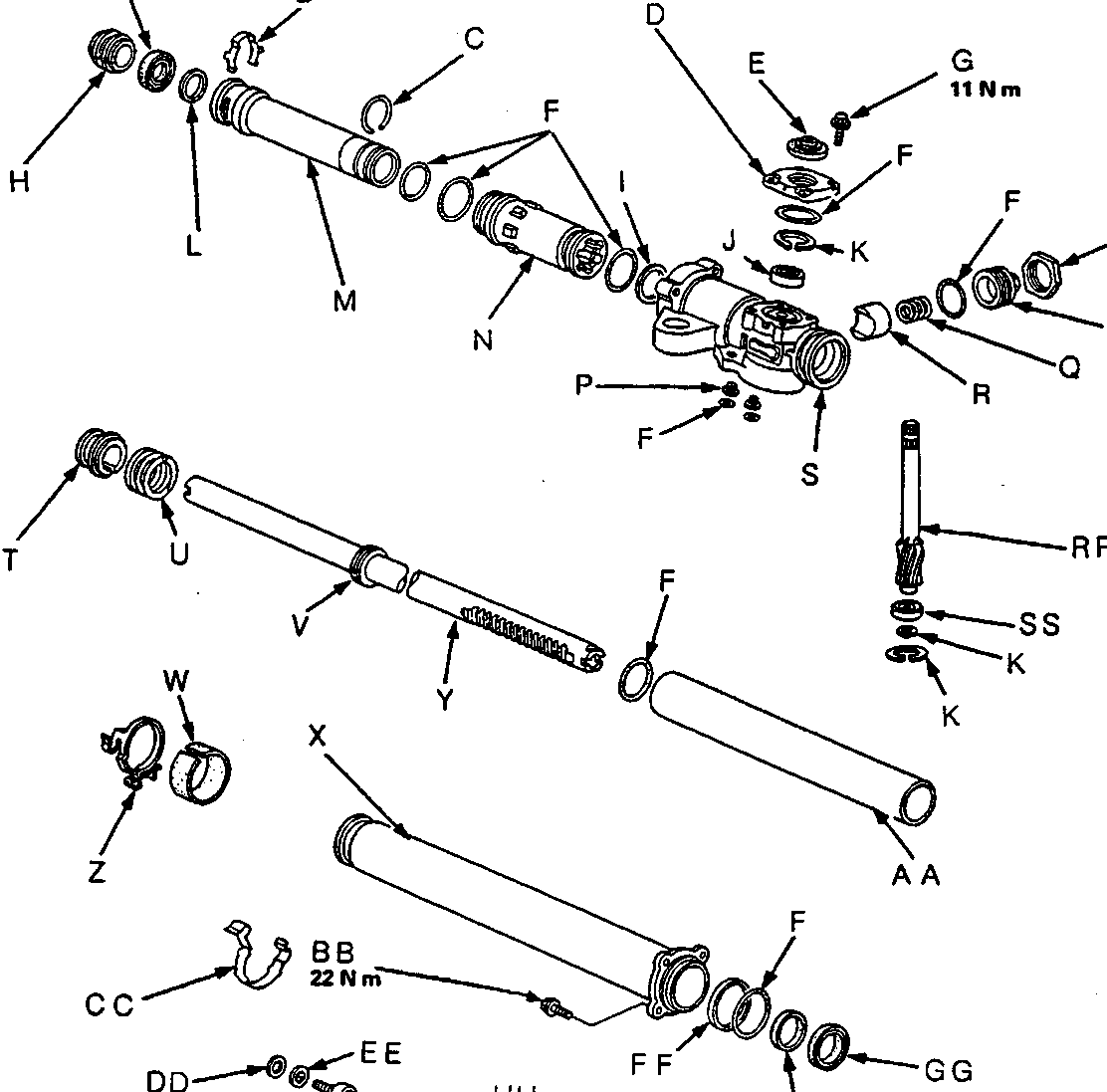

Exploded view diagram of the steering column and rack assembly showing components labeled A through PP, including torque values for specific fasteners.
  1. A Nut
  2. B Spring clip
  3. C Retaining ring
  4. D Dust seal
  5. E Screw
  6. F O-ring
  7. G Torque: 11 Nm
  8. H Nut
  9. I Bush
  10. J Washer
  11. K Washer
  12. L Seal
  13. M Column tube
  14. N Upper shaft
  15. O Nut
  16. P Bolt
  17. Q Bush
  18. R Plug
  19. S Clamp
  20. T Bush
  21. U Bush
  22. V Bush
  23. W Clamp
  24. X Rack tube
  25. Y Rack
  26. Z Clamp
  27. AA Lower shaft
  28. BB Torque: 22 Nm
  29. CC Clip
  30. DD Washer
  31. EE Bolt
  32. FF Bush
  33. GG Bush
  34. HH Retaining ring
  35. II Torque: 55 Nm
  36. JJ Bush
  37. KK Gaiter
  38. LL Rod
  39. MM Gaiter
  40. NN Torque: 45 Nm
  41. OO Ball joint
  42. PP Link rod
  43. RR Pinion
  44. SS Washer
