Steering Rack Removal (page 2 of 5)

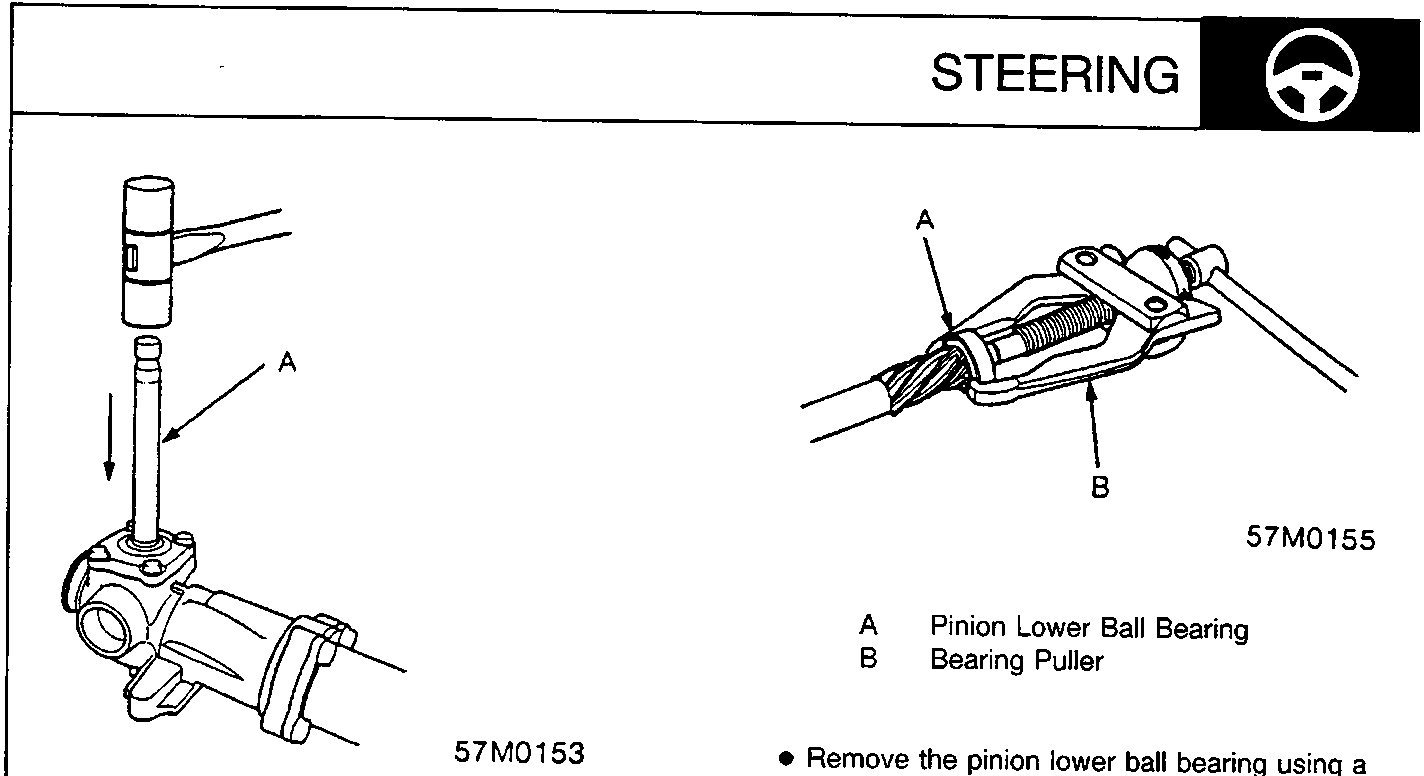

A Pinion 57M0153 A Pinion Lower Ball Bearing B Bearing Puller 57M0155 ● Remove the pinion lower ball bearing using a bearing puller. 10. Remove the pinion from the gear housing by tapping it lightly.

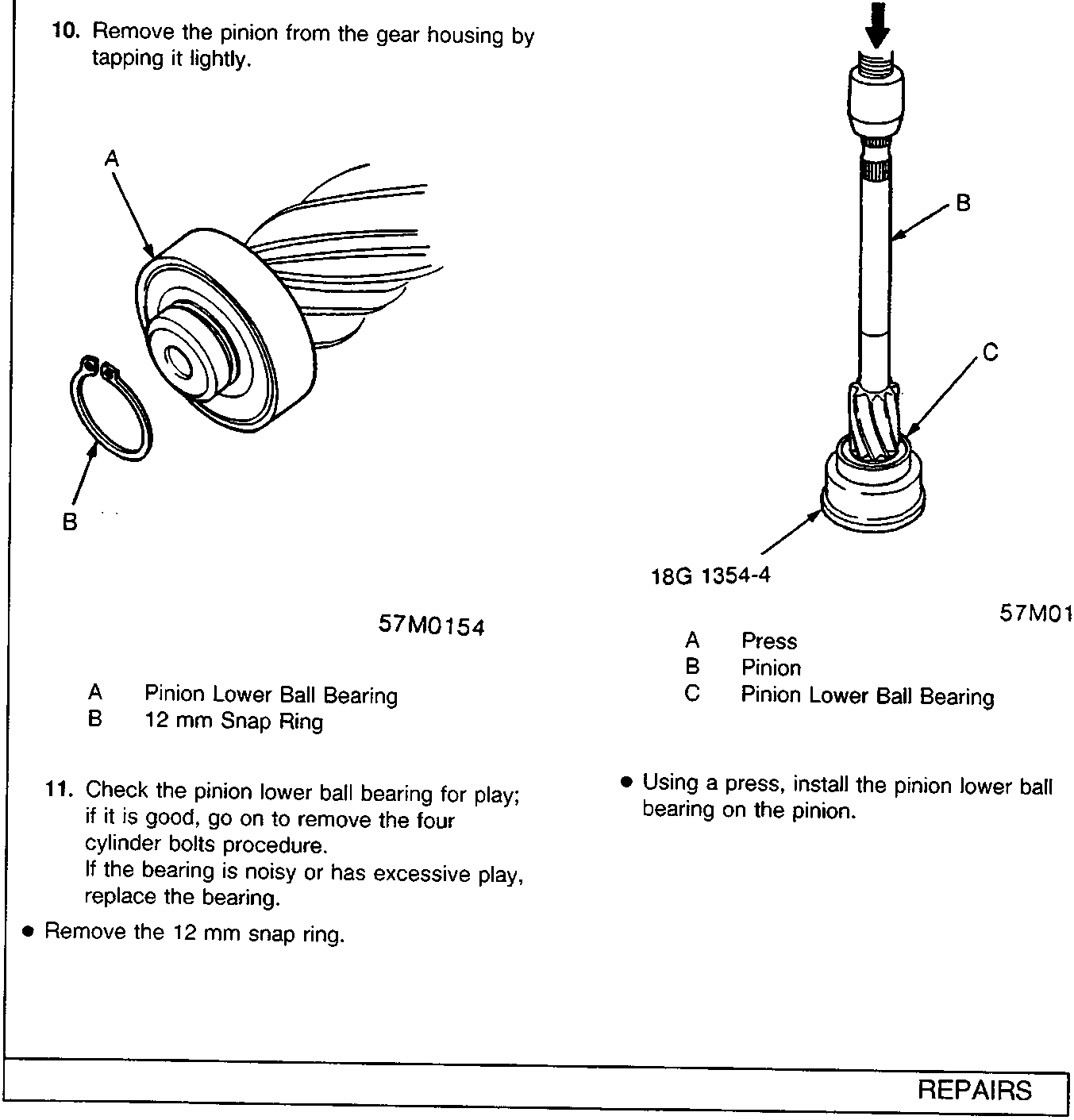

57M0154 A Pinion Lower Ball Bearing B 12 mm Snap Ring 18G 1354-4 A Press B Pinion C Pinion Lower Ball Bearing 57M0156 11. Check the pinion lower ball bearing for play; if it is good, go on to remove the four cylinder bolts procedure. If the bearing is noisy or has excessive play, replace the bearing. ● Remove the 12 mm snap ring. ● Using a press, install the pinion lower ball bearing on the pinion.
