Steering Rack Removal (page 3 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SteeringSteering Rack Removal · page 3 of 5

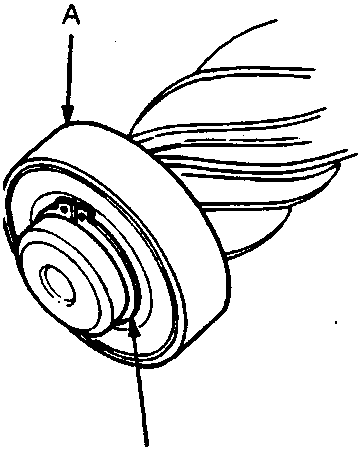

Diagram showing pinion lower ball bearing and snap ring with callouts A and B
A Pinion Lower Ball Bearing B 12 mm Snap Ring 57M0157 - Check the pinion lower ball bearing for a smooth operation and install the 12 mm snap ring.

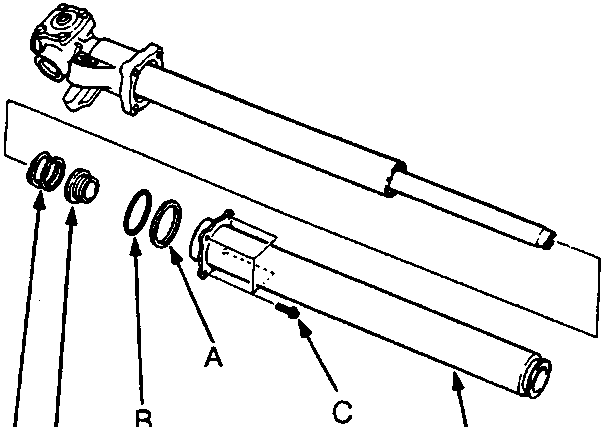

Exploded diagram of cylinder housing components including bolts, rings, bushings, housing and spring with callouts A through F
A Back-up Ring B O-ring C Cylinder Bolts D Rack Bushing A E Cylinder Housing F Cylinder Spring 57M0158 12. Remove the four cylinder bolts from the end of the cylinder housing, then slide the housing off the rack. 13. Remove the cylinder housing. 14. Remove and discard the O-ring. Remove the back-up ring, steering rack bushing A and cylinder spring. Inspect the rack bushing A for damage to inner surface.

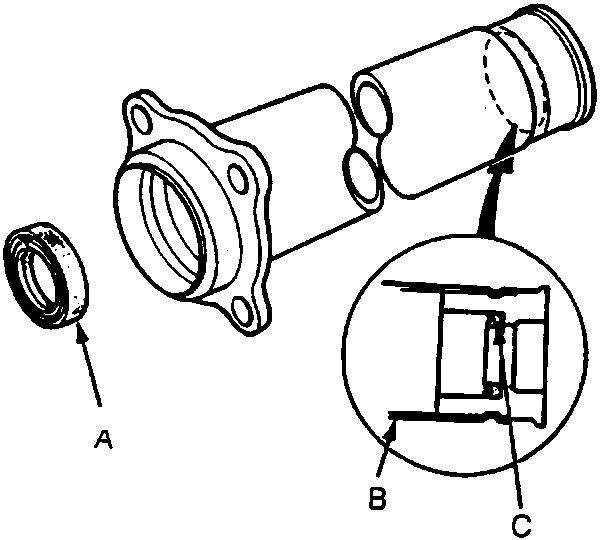

Diagram showing cylinder end seal, cylinder housing and end seal with callouts A, B and C
A Cylinder End Seal B Cylinder Housing C Cylinder End Seal 57M0159 15. Remove the cylinder end seal from the cylinder housing. Note: Use your fingers or a wooden stick to avoid damaging the housing.

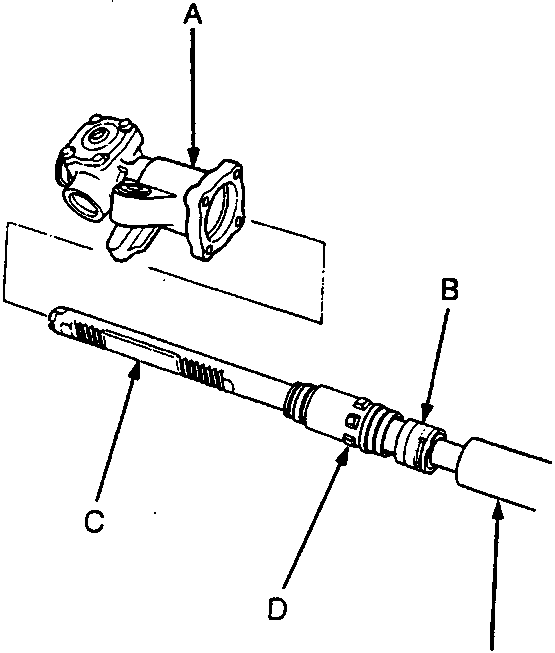

Diagram showing gear housing, seal retainer, steering rack, cylinder cap and cylinder with callouts A through E
A Gear Housing B Cylinder Seal Retainer C Steering Rack D Cylinder Cap E Cylinder 57MO160
