Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition12 · Steering
12 · Steering & suspension

Steering Rack Removal (page 5 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SteeringSteering Rack Removal · page 5 of 5

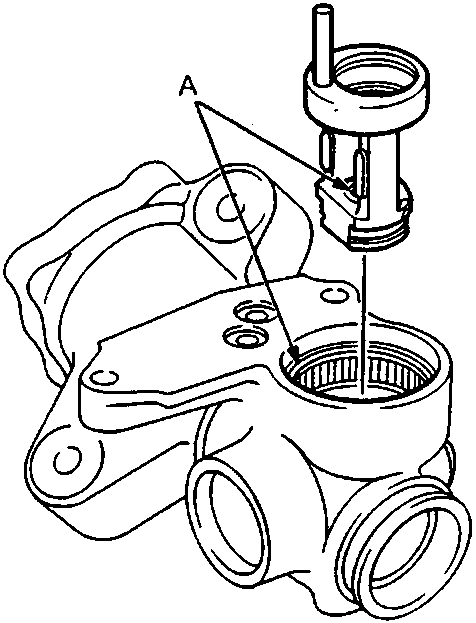

Diagram showing a pinion holder and gear housing with a tool removing a needle roller bearing, labeled A.

57M0164

A Needle Roller Bearing

  • Remove the pinion holder from the gear housing.
  • Check the needle roller bearing in the pinion holder and in the gear housing for damage. If the bearings are damaged, replace them as a set.

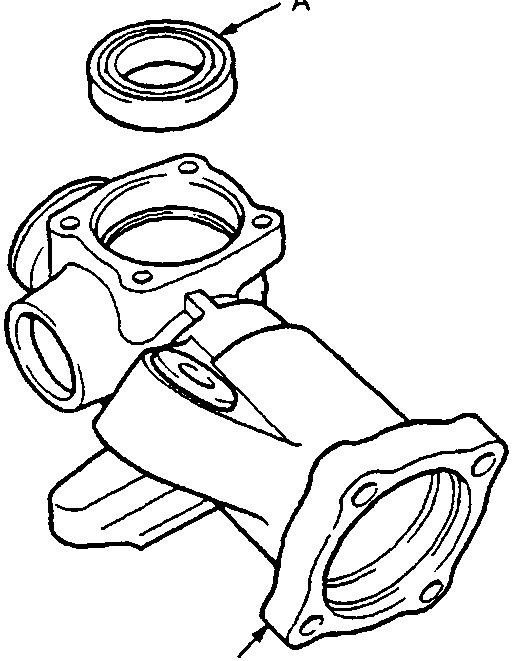

Diagram showing a pinion upper ball bearing (A) being removed from a gear housing (B).

57M0165

A Pinion Upper Ball Bearing
B Gear Housing

  • Remove the pinion upper ball bearing from the gear housing and discard.

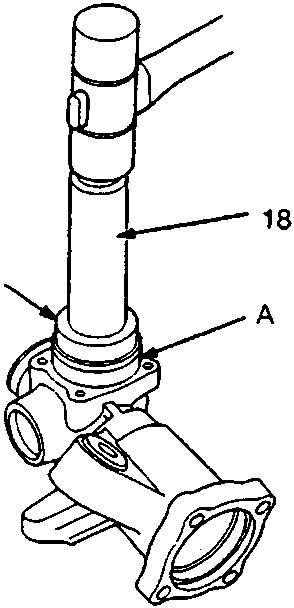

Diagram showing special tools 18G 1354 and 18G 1354-4 driving a pinion upper ball bearing (A) into a gear housing.

57M0166

A Pinion Upper Ball Bearing

  • Drive the new pinion upper ball bearing into the gear housing using the special tools.
