Engine management system - V8Clutch pedal switch

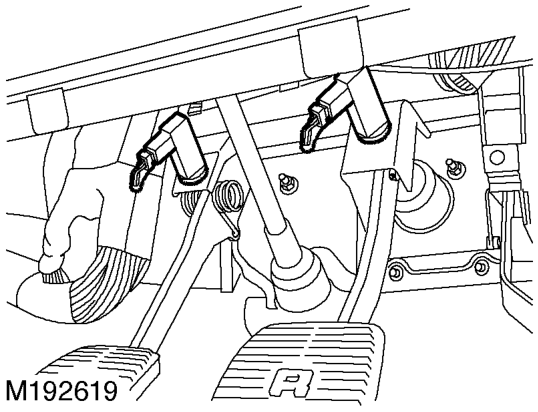

Clutch pedal switch
The clutch pedal switch is a single pole normally closed switch. It is part of the 12 Volt brake pedal switch circuit to the cruise control ECU. When the clutch pedal is pressed, the cruise control ECU deactivates the cruise control system and releases system vacuum. The last set speed is retained in the cruise control ECU.
Input/Output The cruise control ECU receives a 12 Volt signal through the normally closed contacts of the brake pedal switch and the normally closed clutch pedal switch.
