Cruise control block diagram (Engine management system - V8)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Cruise control block diagram
Engine management system - V8Cruise control block diagram

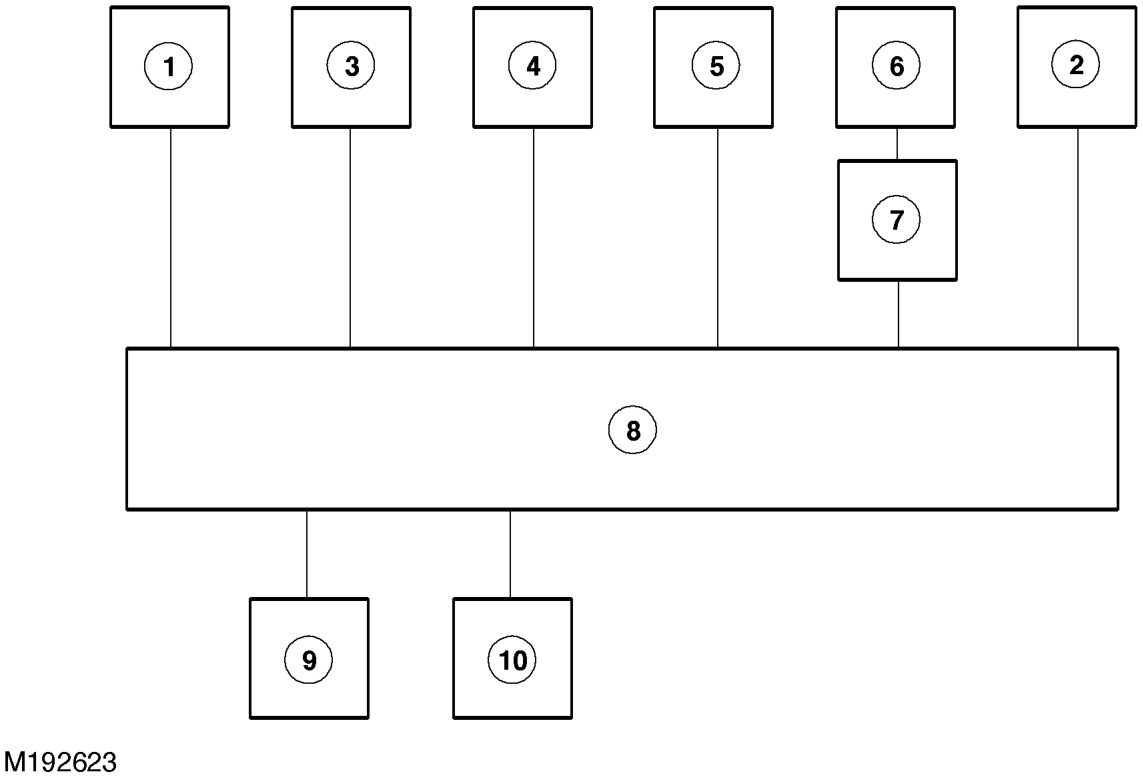

Cruise control block diagram
1 SLABS ECU 2 BCU 3 Cruise control master switch 4 SET+ switch 5 RES switch 6 Brake pedal switch
7 Clutch pedal switch 8 Cruise control ECU 9 Vacuum pump assembly incorporating pneumatic actuator 10 Automatic gear selector lever
