Engine - Td5Gasket - cylinder head · page 6 of 9
  1. Repeat above operations to remove remaining
Repeat above operations to remove remaining

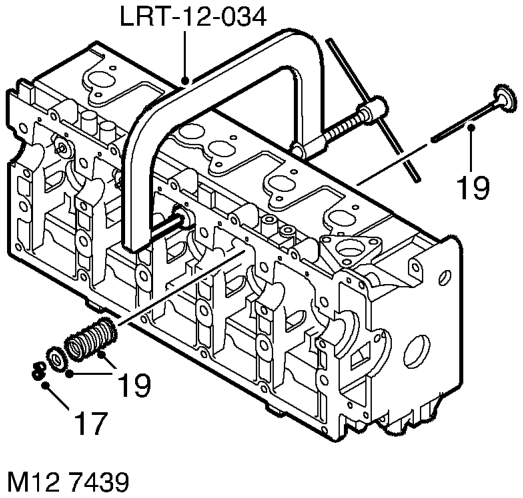

  1. Using tool LRT-12-034 compress valve spring.
  2. Remove 2 collets from valve stem using a stick magnet.
  3. Remove tool LRT-12-034 .
  4. Remove valve spring cap, valve spring and valve. Keep components in their fitted order.
Remove valve spring cap, valve spring and valve. Keep components in their fitted order.
  1. Engine Serial No. Prefixes 15P to

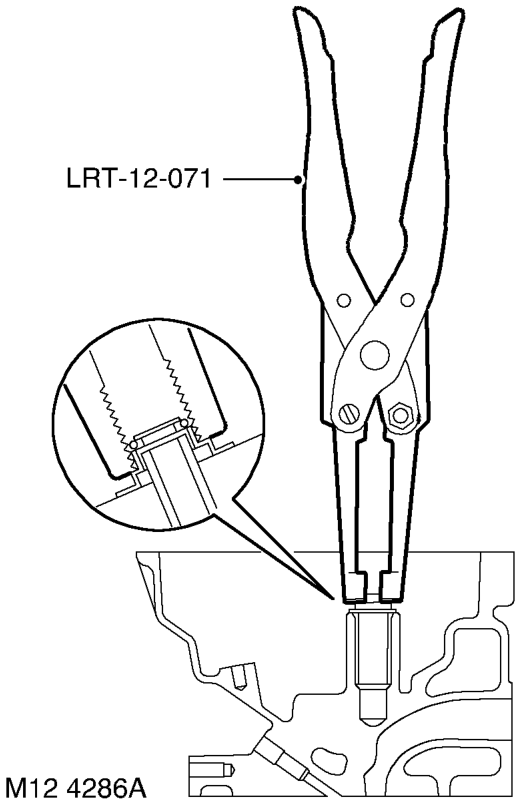

  2. Using tool LRT-12-071, remove and discard valve stem oil seal.

valves. Keep components in their fitted order.

valves. Keep components in their fitted order.

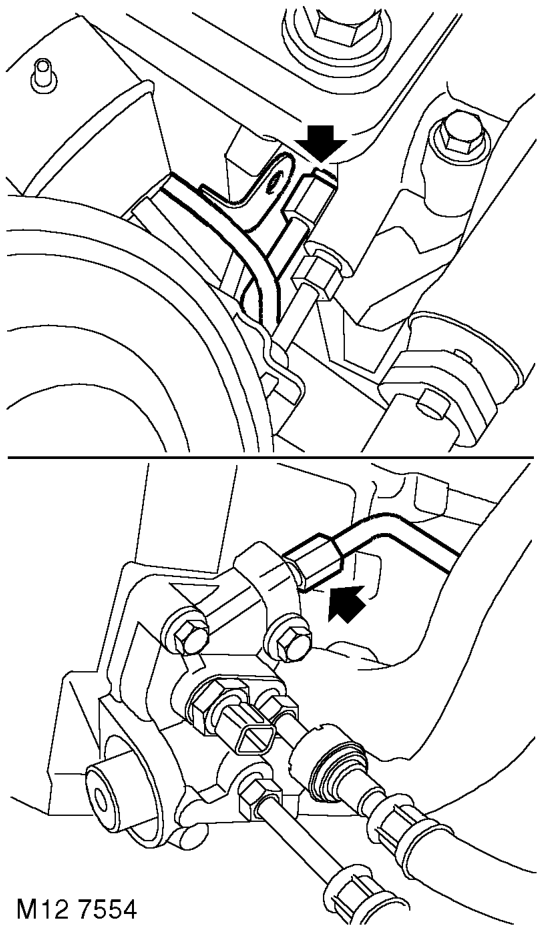

19P:Disconnect spill return pipe from cylinder head and fuel connector block, remove and discard 'O' rings.
