Land Rover Discovery II (UK)09 · Engine - Td5
09 · Engine

Gasket - cylinder head (page 8 of 9)

Make
Land Rover
Model
Discovery II (UK)
Section
Overhaul
Engine - Td5Gasket - cylinder head · page 8 of 9
Diagram

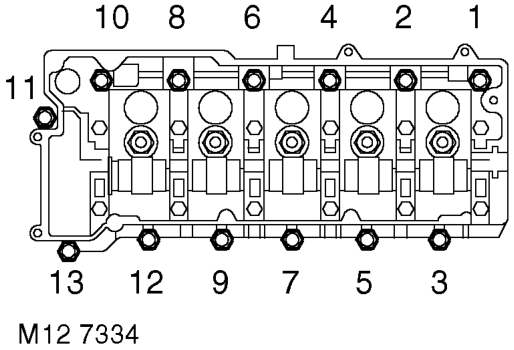

  1. Fit original camshaft carrier bolts and tighten in

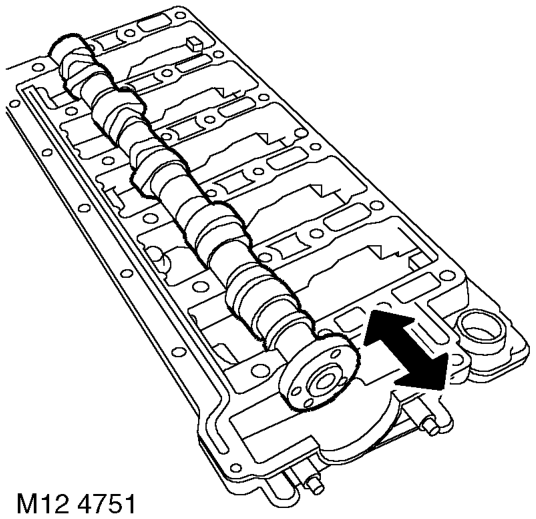

  2. Check end-float of camshaft using a DTI: l Camshaft end-float = 0.06 to 0.16 mm (0.002 to 0.006 in)
  3. Renew components as necessary to achieve correct end-float.
  4. Check camshaft bearing clearances using the following procedures.
Check camshaft bearing clearances using the following procedures.

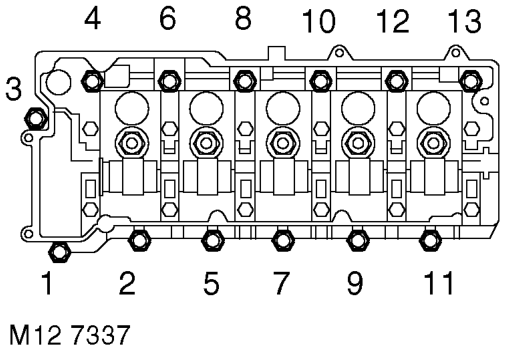

  1. Using sequence shown, loosen then remove
  2. Carefully remove camshaft carrier.
  3. Position camshaft in cylinder head.

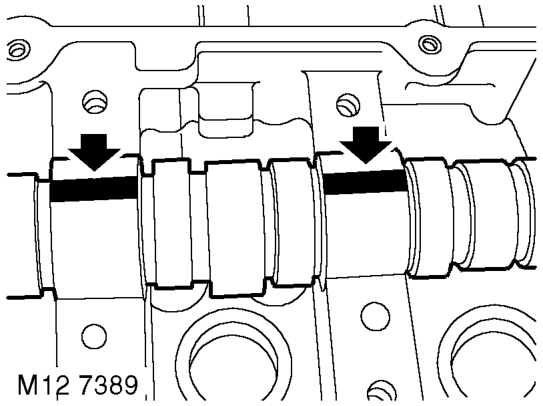

  4. Place a piece of Plastigage along centre line of each camshaft bearing journal.
  5. Carefully fit the camshaft carrier ensuring it is located on dowels. Do not rotate camshaft.

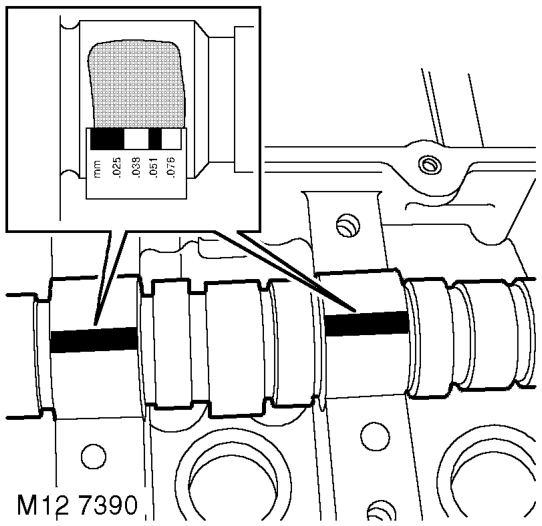

  6. Measure and record widest portion of
Measure and record widest portion of

sequence shown to 25 Nm (18 lbf.ft).

sequence shown to 25 Nm (18 lbf.ft).

camshaft carrier retaining bolts. Do not discard bolts at this stage.

camshaft carrier retaining bolts. Do not discard bolts at this stage.

Plastigage on each camshaft bearing journal.
