Pipe - Heater - Feed (page 3 of 3)

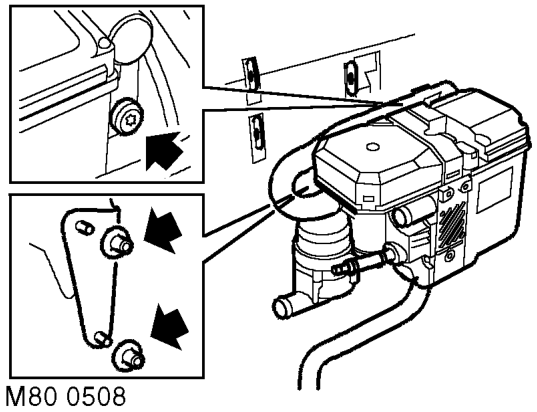

7. Position container to collect spillage and disconnect quick release fuel pipe from FBH.

CAUTION: Before disconnecting any part of the fuel system, it is imperative that all dust, dirt and debris is removed from around components to prevent ingress of foreign matter into fuel system.

8. Remove Torx bolt securing FBH to bulkhead mounting bracket.
9. Release and remove FBH.
10. Collect locating bushes from pegs.

Refit

1. Fit bushes to pegs.
2. Align FBH to pegs, fit Torx bolt and tighten to 25 Nm (18 lbf.ft).
3. Clean quick release connection and fit fuel pipe to FBH.
4. Connect multiplugs to FBH.
5. Connect coolant hoses to FBH and secure with clips.
6. Release clamps from hoses.
7. Connect battery earth lead.
8. Fit and secure battery cover.
9. Top-up cooling system. MAINTENANCE, PROCEDURES, Cooling system.
