Pipe - Heater - Feed (page 2 of 3)

Refit

1. Connect engine coolant hose to heater return Fuel burning heater - (FBH) - Td5 pipe and secure with clip.
2. Position heater return pipe to cylinder block and

$% 80.40.01.99 secure with bolt.

3. Secure engine harness and vacuum pipe to

Remove

heater return pipe and secure with clips.

4. Fit and tighten bolt securing heater return pipe to heater feed pipe.
5. Connect heater return hose to heater return pipe and secure with clip.
6. Refill engine coolant. COOLING SYSTEM - V8, ADJUSTMENTS, Drain and refill.
1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Clamp feed and return coolant hoses at FBH.

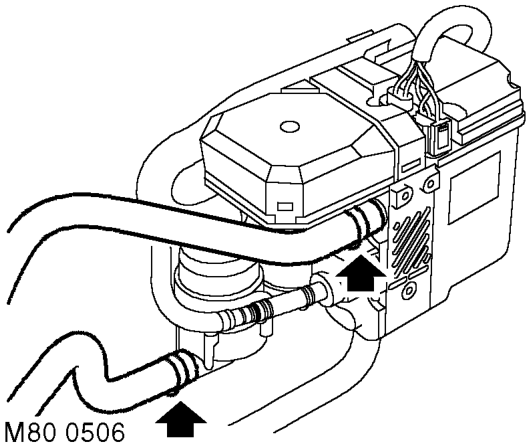

4. Position container to collect spillage.

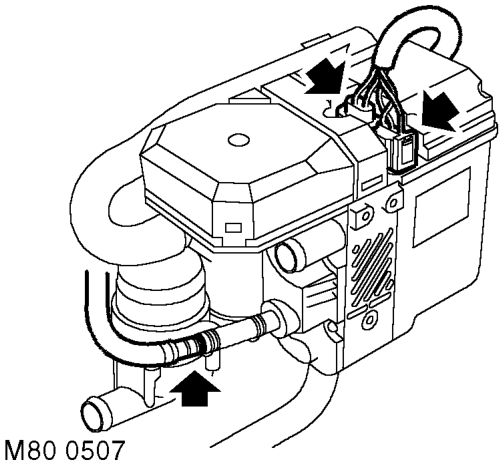

5. Release clips, disconnect coolant feed and return hoses from FBH.

CAUTION: Before disconnecting or removing components, ensure the immediate area around joint faces and connections are clean. Plug open connections to prevent contamination.

6. Disconnect 2 multiplugs from FBH.
