Land Rover Discovery II (UK)45 · Heating and ventilation
45 · Heating & A/C

Heater assembly - models with air conditioning (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Heating and ventilationHeater assembly - models with air conditioning · page 2 of 2
Diagram

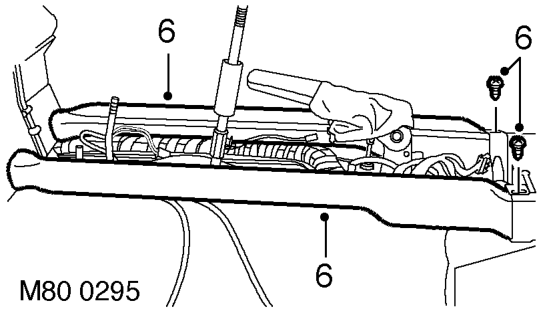

  1. Remove screws securing rear heater ducting and remove ducting.
Remove screws securing rear heater ducting and remove ducting.

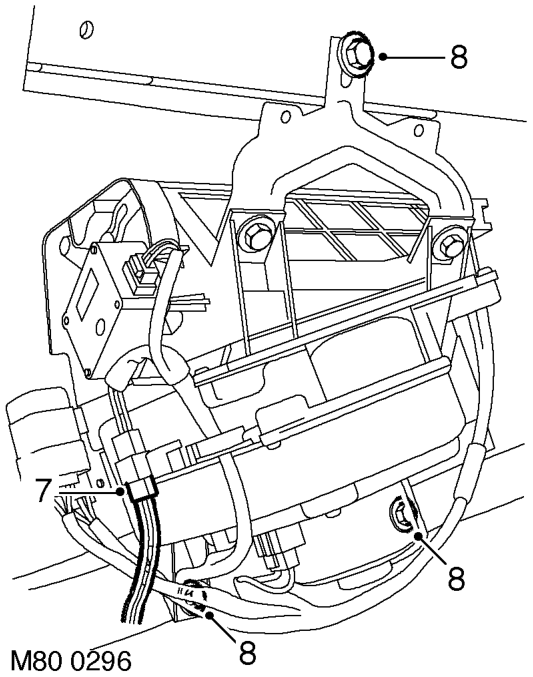

  1. Disconnect multiplug from heater motor.
  2. Remove 2 nuts and bolt securing heater motor assembly and remove motor assembly from heater casing.

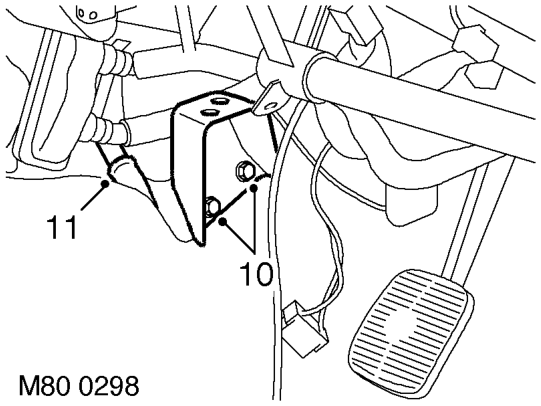

  3. Remove 2 nuts securing RH fascia support
Remove 2 nuts securing RH fascia support

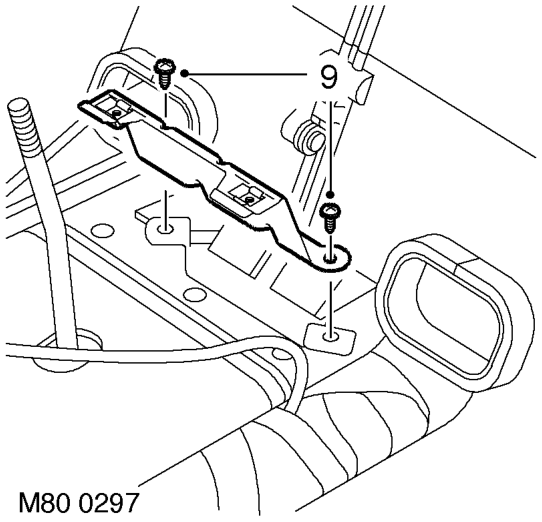

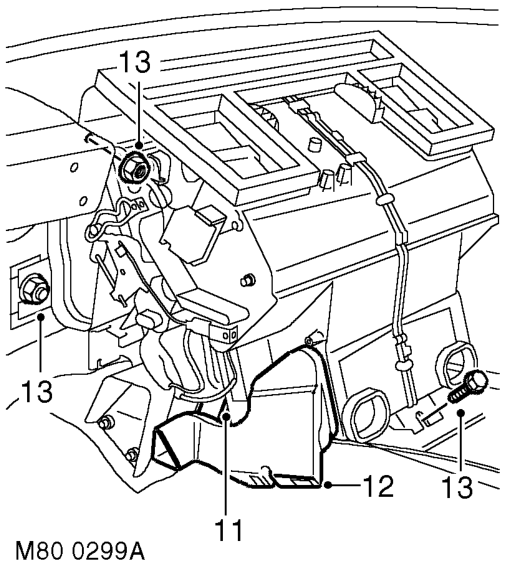

  1. Remove 2 screws securing centre console support bracket and remove bracket.
Remove 2 screws securing centre console support bracket and remove bracket.
Remove 2 screws securing centre console support bracket and remove bracket.

bracket and remove bracket.
