Cover - squab - front seat (page 2 of 3)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
SeatsCover - squab - front seat · page 2 of 3
  1. Fold cover upwards over squab until second
Fold cover upwards over squab until second
  1. Remove second row of hog rings.
  2. Push out centres of trim clips securing stowage
  3. Remove trim clip outers.

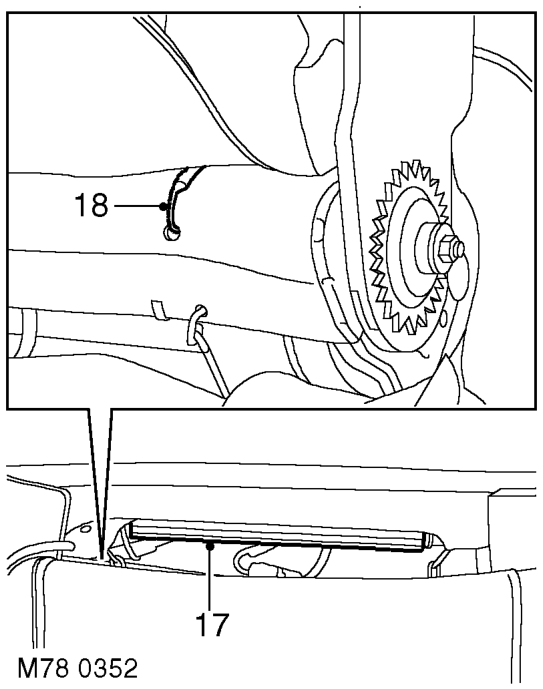

  4. Release hooks from seat frame and feed
  5. Release clip securing front of cover to squab frame.

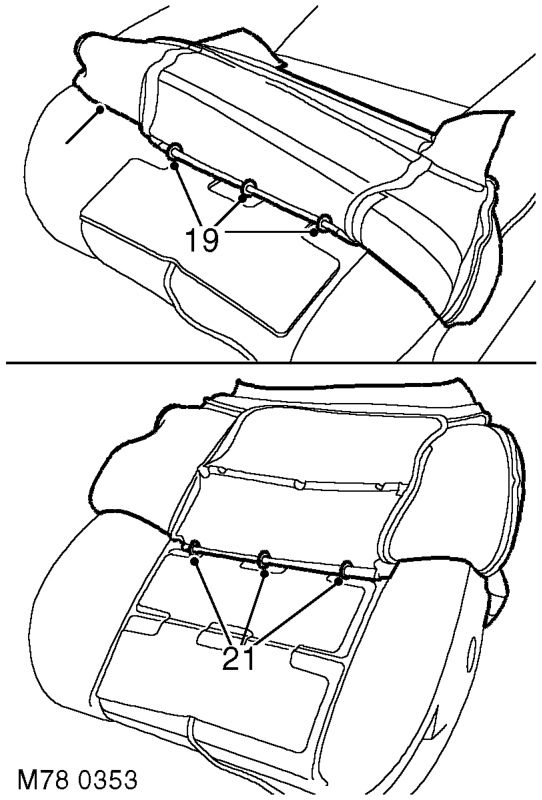

  6. Release hooks from squab frame.
Release hooks from squab frame.
  1. Fold cover upwards until third row of hog rings
  2. Remove third row of hog rings.

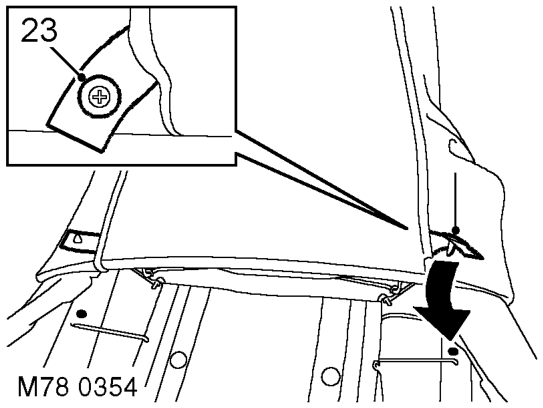

  3. Remove hog rings securing rear of squab
  4. Release bar from seat frame.

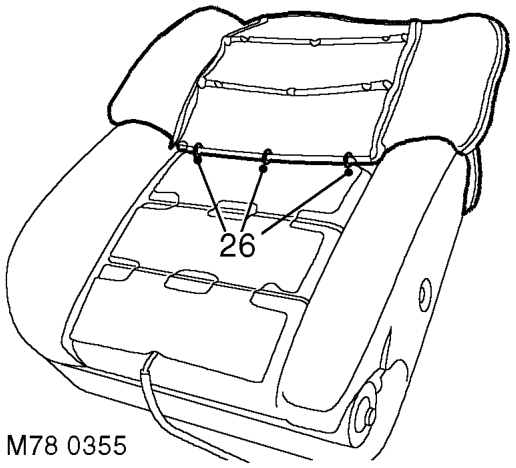

  5. Fold cover upwards over squab until first row of hog rings are visible.
  6. Remove first row of hog rings.

row of hog rings are visible.

row of hog rings are visible.

pocket elastic to seat frame.

though to front of foam.

though to front of foam.

are visible.

cover to seat frame.
