Cover - squab - front seat (page 3 of 3)

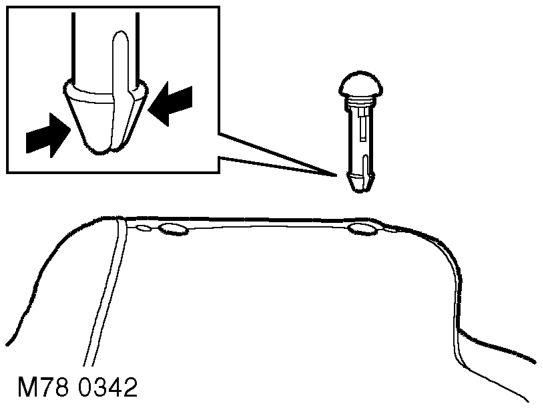

30. Remove headrest guides.
31. Fold cover fully upwards and remove.

Refit

1. Fit squab cover to top of seat. Do not fold down too far onto seat.
2. Fit headrest guides.
3. Fit grab handles to seat and secure with screws.
4. Ensure top of cover fits correctly around grab handles.
5. Fit bar securing rear of squab cover to seat frame.
6. Fit hog rings securing rear of squab cover to seat frame.
7. Pull cover down tight and align hog ring location points.
8. Fit third row of hog rings.
9. Pull cover down tight and feed hooks though foam.
10. Connect hooks to rear of squab frame.
11. Align stowage pocket elastic to seat frame and secure with trim clips.
12. Pull cover down tight and align hog ring location points.
13. Fit second row of hog rings.
14. Pull cover down tight and align hog ring location points.
15. Fit first row of hog rings.
16. Pull cover down tight and connect hooks to squab frame.
17. Feed front of cover through to rear.
18. Secure bottom of cover to frame with clip.
19. Fit clips securing ends of cover to frame.
20. Fit headrest to seat.
21. Turn seat upside down.
22. Secure rear edge of squab cover to frame with clip.
23. Turn seat correct way up.
24. Fit inner edge trim casing to seat frame.
25. Fit outer edge trim casing and secure with screws.
26. Position arm rest to seat, secure with screw and loosen arm rest adjuster to the required position.
27. Fit front seat. SEATS, REPAIRS, Seat - front.
