Range Rover P38
ELECTRICAL
47
REPAIR
Refit
31. Position fascia harness to fascia.
32. Position harness to fascia and secure with clips.
33. Position fascia switch pack and connect
multiplugs and Lucars.
34. Align switch pack to fascia and secure with
screws.
35. Position heater control unit and connect
multiplugs.
36. Align heater controls to fascia and secure with
screws.
37. Fit cruise control relay to harness and secure to
fascia bracket.
38. Connect cruise control ECU multiplug.
39. Connect multiplugs to instrument pack.
40. Position harness duct and secure with clips.
41. Position driver side blower unit and connect
multiplugs and Lucar.
42. Align blower unit to fascia and secure with nuts.
43. Connect multiplug to heater matrix pipe sensor.
44. Connect multiplug to evaporator sensor.
45. Position harness to evaporator and secure with
clips.
46. Position harness to sunlight sensor and connect
multiplugs.
47. Secure harness to fascia with clip.
48. Position sunlight sensor multiplug inside fascia.
49. Position passenger airbag harness to fascia and
secure with clips.
50. Position harness to LH lower fascia and secure
with clips.
51. Fit heater duct to heater.
52. Position passenger’s side heater blower and
connect multiplugs and Lucar.
53. Fit blower unit to heater duct and fascia and
secure with nuts.
54. Fit passenger airbag module.
See
SUPPLEMENTARY RESTRAINT SYSTEM,
Repair.
55. Fit fascia assembly.
See CHASSIS AND
BODY, Repair.
HORN - FROM 99MY
Service repair no - 86.30.10
Remove
1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. RH horn: Remove battery positive lead and
remove battery.
4. RH horn: Remove 2 screws securing harness
clamp to carrier and release harnesses from
carrier.
5. RH horn: Remove 4 bolts securing battery
carrier to body and remove carrier.

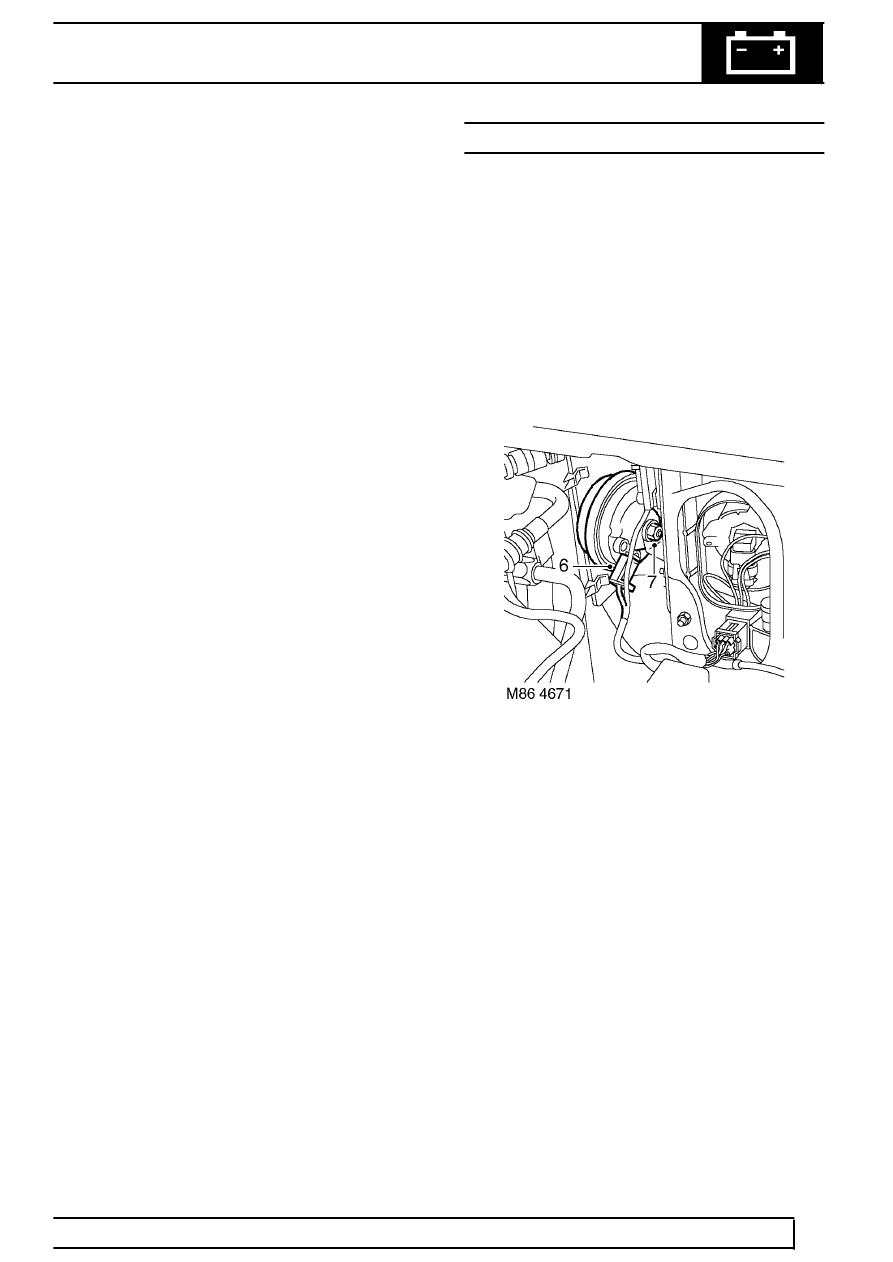

6. Release multiplug from horn.
7. Remove nut securing horn to bracket and
remove horn.
Refit
8. Fit new horn to bracket and tighten nut to
13 Nm
(10 lbf.ft).
9. Connect multiplug to horn.
10. RH horn: Fit battery carrier and secure with
bolts.
11. RH horn: Position harnesses and secure clamp
with screws.
12. RH horn: Fit battery and connect positive lead.
13. Connect battery earth lead.
14. Fit battery cover and secure with fixings.
