MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Gasket - cylinder head - A/C - MPi mems3 - (2000my on) (page 2 of 4)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineGasket - cylinder head - A/C - MPi mems3 - (2000my on) · page 2 of 4
Diagram

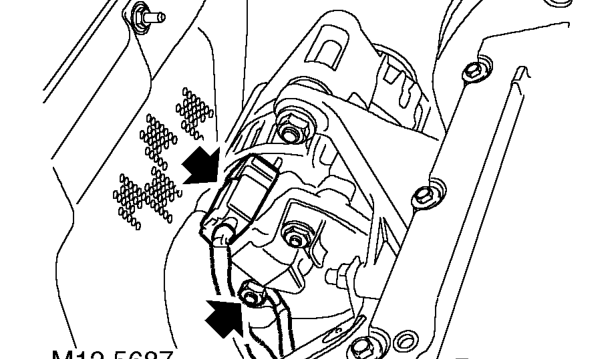

  1. Remove nut securing alternator lead and release lead, disconnect alternator multiplug.
Remove nut securing alternator lead and release lead, disconnect alternator multiplug.

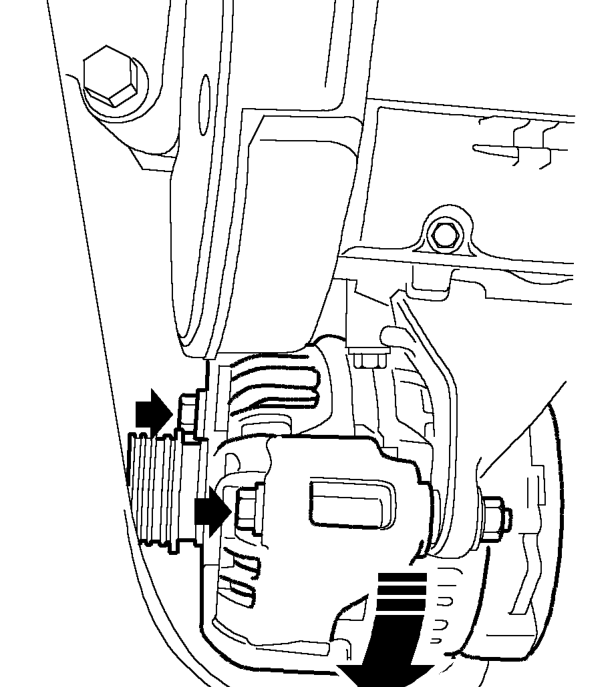

  1. Remove alternator top bolt and loosen lower bolt.
  2. Position alternator forwards to access alternator bracket.
Position alternator forwards to access alternator bracket.

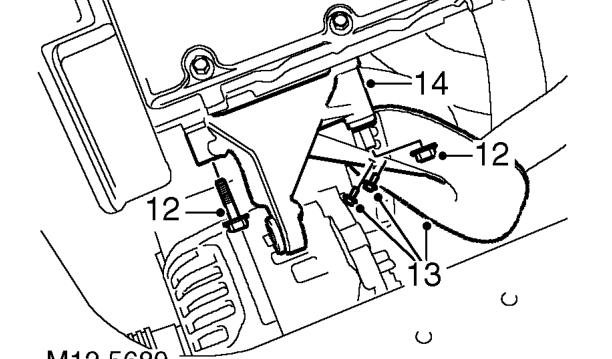

  1. Remove nut and bolt securing alternator bracket.
  2. Remove 2 bolts securing exhaust heat shield and remove heat shield.
  3. Collect alternator bracket.
Collect alternator bracket.

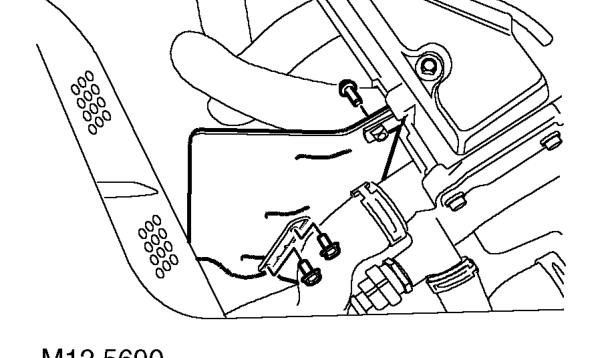

  1. Remove 3 bolts securing coolant hose heat shield and remove heat shield.
