EngineGasket - cylinder head - A/C - MPi mems3 - (2000my on) · page 3 of 4
Diagram

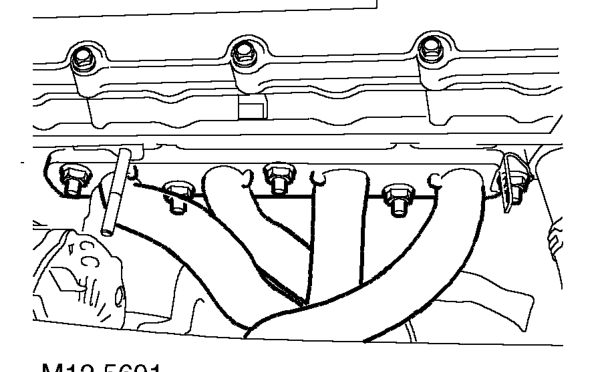

  1. Remove 5 flange nuts securing exhaust manifold to cylinder head.
  2. Position manifold aside, remove and discard gasket.
Position manifold aside, remove and discard gasket.

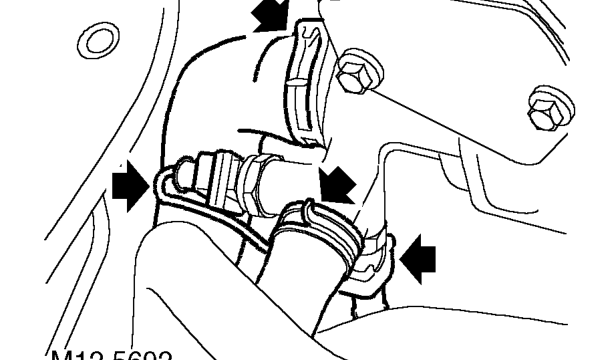

  1. Loosen clips and disconnect 2 coolant hoses from cylinder head.
  2. Disconnect 2 multiplugs from coolant sensors.
Disconnect 2 multiplugs from coolant sensors.

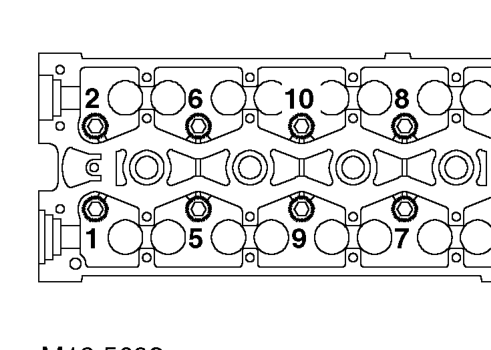

  1. Loosen 10 E12 cylinder head to oil rail bolts in sequence shown. Remove bolts and store in fitted order.
  2. Remove cylinder head assembly from cylinder block, use assistance.
Remove cylinder head assembly from cylinder block, use assistance.

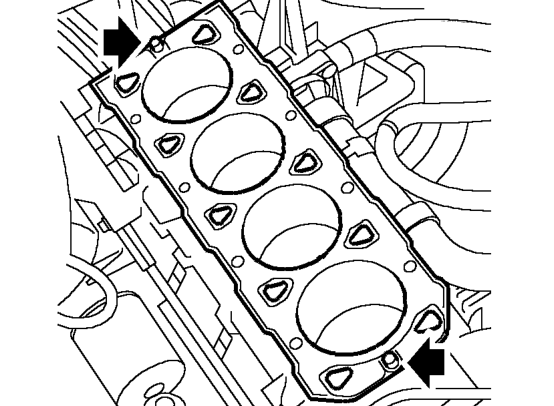

  1. Remove cylinder head gasket from cylinder block and discard.

CAUTION: Do not rotate crankshaft with cylinder head removed.

Remove cylinder head gasket from cylinder block and discard.

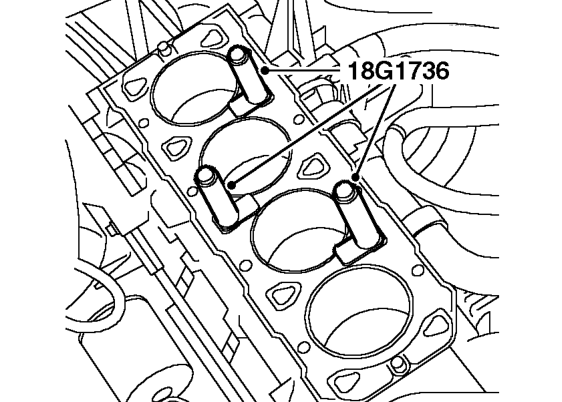

  1. Fit tool 18G 1736 to cylinder block and secure using head bolts as shown.
