Inlet manifold gasket - ’k’ series (page 2 of 4)

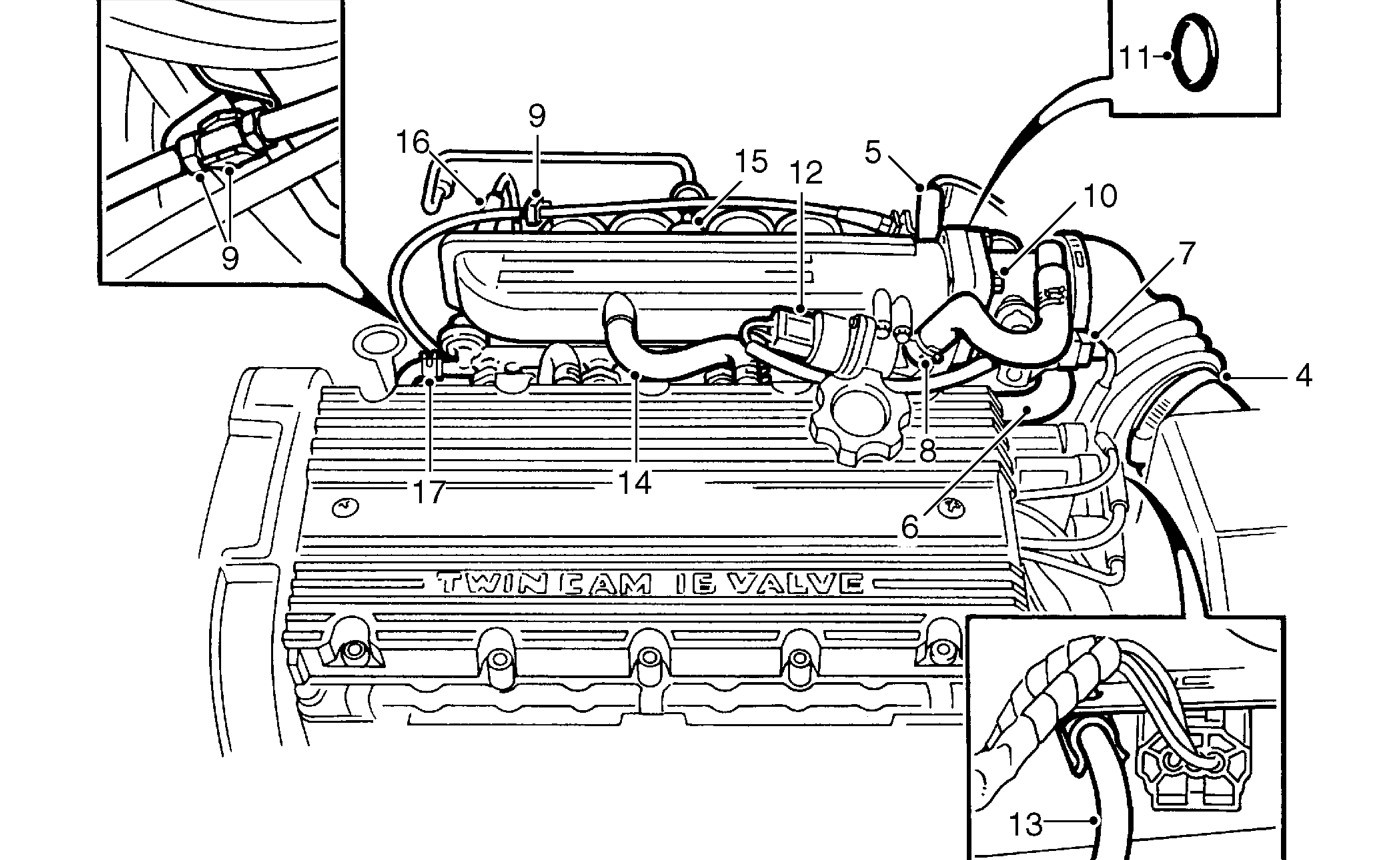

4. Loosen clip and disconnect air intake hose from air cleaner.
5. Release clip and disconnect purge hose from inlet manifold.
6. Release clip and disconnect breather hose from throttle body.
7. Disconnect multiplug from throttle position sensor.
8. Release clip and disconnect hose from stepper motor.
9. Release throttle cable from clips on manifold.
10. Remove 4 bolts securing throttle body to inlet manifold, remove throttle body and place aside.
11. Remove and discard ’O’ ring.
12. Disconnect multiplug from stepper motor.
13. Release distributor h.t. lead from manifold bracket.
14. Disconnect breather hose from inlet manifold.
15. Depress plastic collar and disconnect brake servo hose from inlet manifold.
16. Disconnect ECM vacuum hose from manifold.
17. Release clip and disconnect fuel return hose from fuel rail. Release hose from 2 clips on manifold.

CAUTION: Plug the connections.
