Inlet manifold gasket - ’k’ series (page 3 of 4)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Manifold & exhaust systemsInlet manifold gasket - ’k’ series · page 3 of 4
Diagram

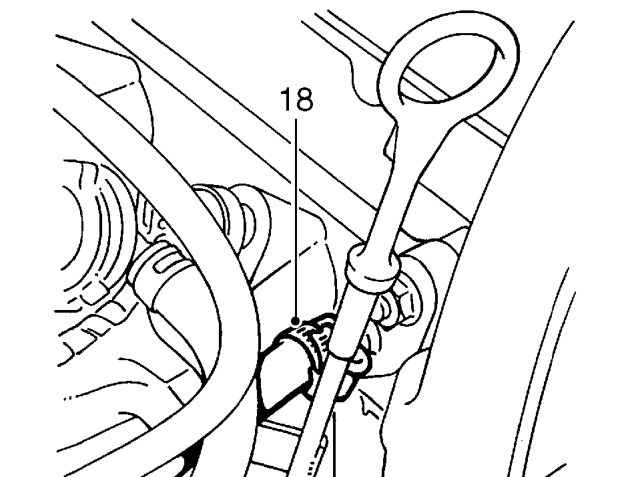

  1. Loosen clip and disconnect coolant hose from inlet manifold.
Loosen clip and disconnect coolant hose from inlet manifold.

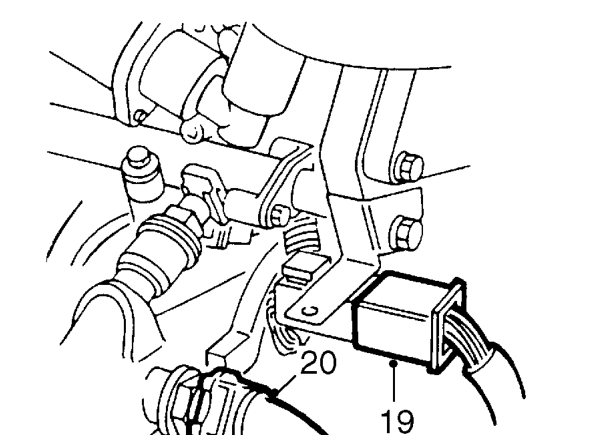

  1. Release injector harness multiplug from bracket and disconnect multiplug.
  2. Disconnect multiplug from air temperature sensor.
Disconnect multiplug from air temperature sensor.

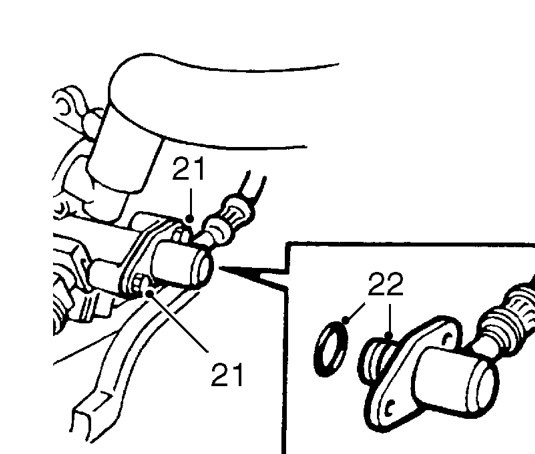

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail, remove and discard ’O’ ring.

CAUTION: Plug the connections.

  1. Working from the centre outwards, progressively slacken then remove 3 nuts and 4 bolts securing inlet manifold to cylinder head.
Working from the centre outwards, progressively slacken then remove 3 nuts and 4 bolts sec

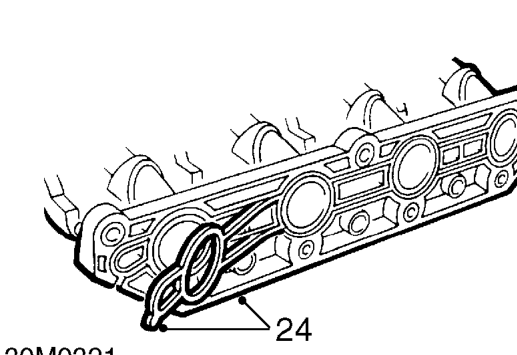

  1. Remove inlet manifold, remove and discard gasket.
