BodyA Dashboard bracket

Screw and bolt locations and quantities are shown by black triangles.

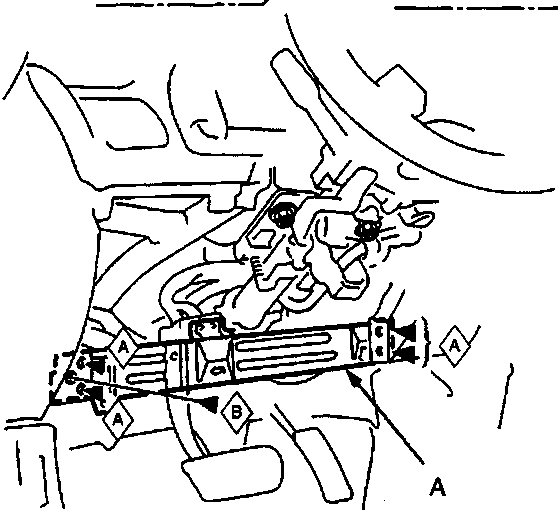

Diagram of the dashboard bracket showing screw and bolt locations labeled A and B, with callouts for items 4 and 1.

A Dashboard bracket

  1. Remove the dashboard bracket.

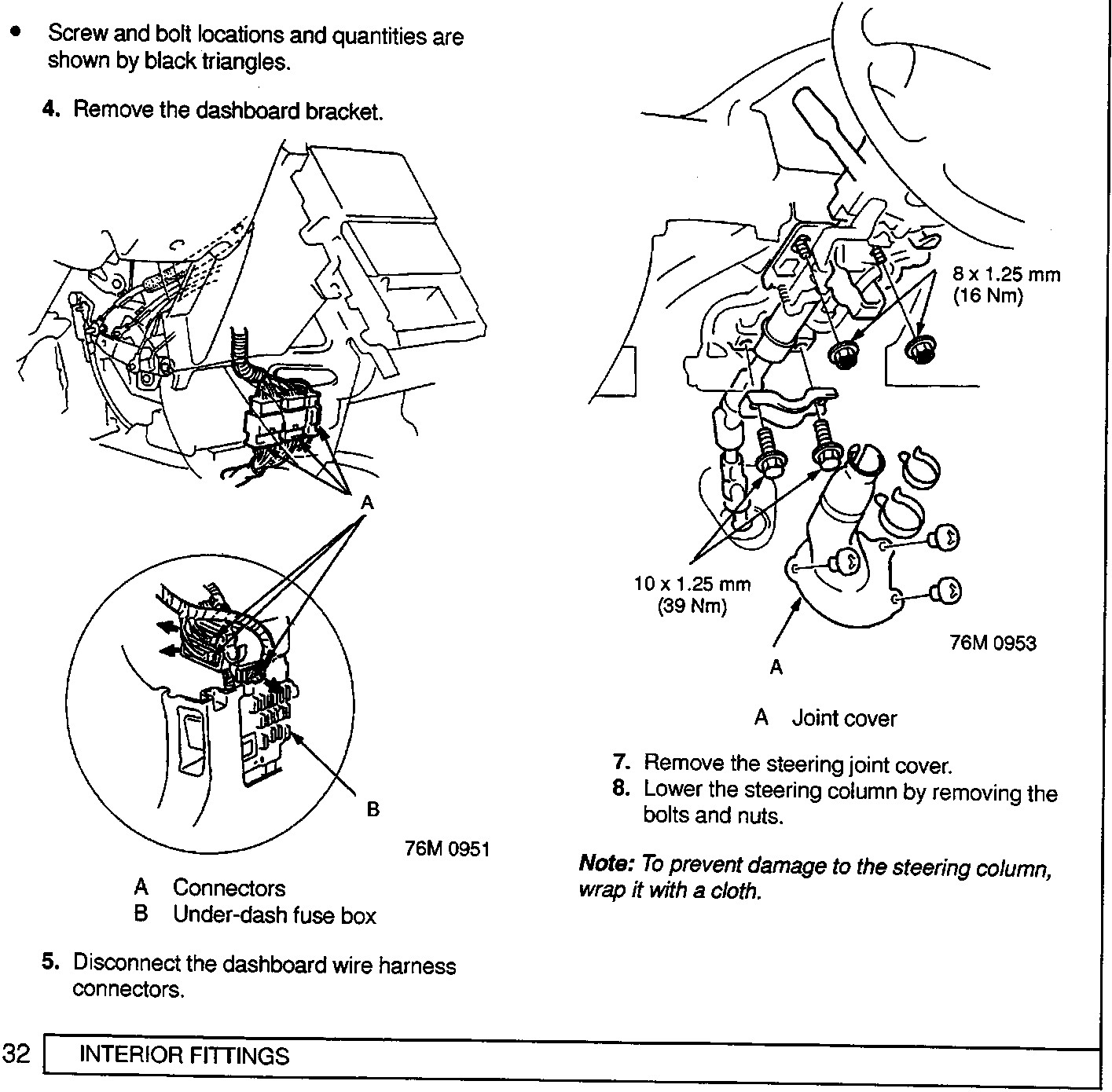

Diagram showing the under-dash area with connectors labeled A and the under-dash fuse box labeled B.

A Connectors

B Under-dash fuse box

  1. Disconnect the dashboard wire harness connectors.

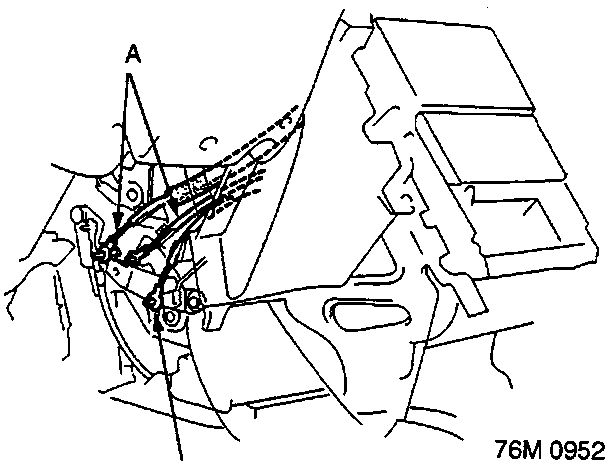

Diagram of the heater control cables and cool vent cable area, with callouts A and B.

A Heater control cables

B Cool vent cable

  1. Disconnect the heater control cables and cool vent cable.
Diagram of the steering column joint cover area showing bolts and nuts with torque specifications.

A Joint cover

  1. Remove the steering joint cover.
  2. Lower the steering column by removing the bolts and nuts.

Note: To prevent damage to the steering column, wrap it with a cloth.

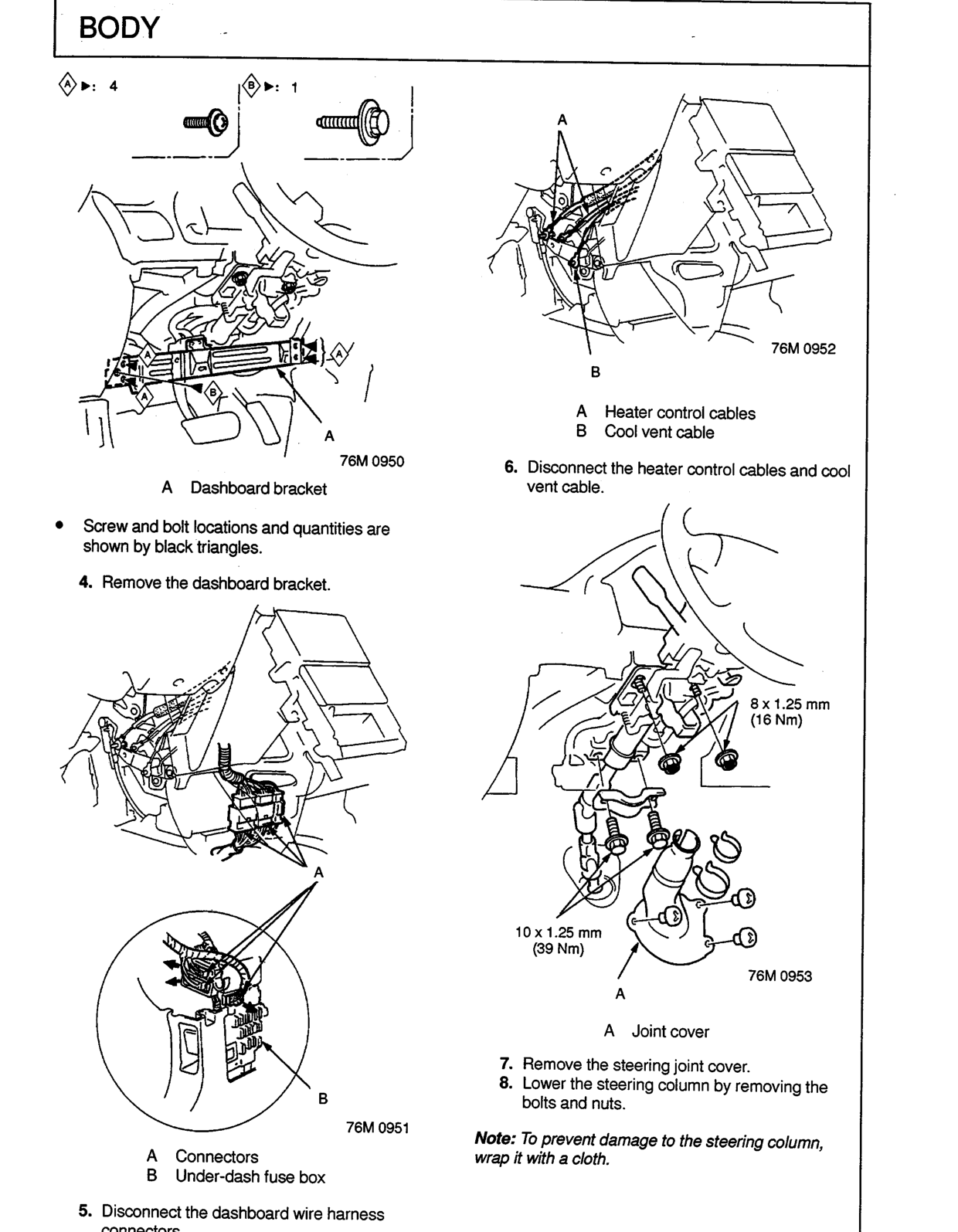

Original page
