BodyCentre consoles
  1. Prise out the clips and remove the door sill mouldings.
  2. Remove the carpet by sliding it rearward.
  3. Installation is the reverse of the removal procedure.

Note:

  • Take care not to damage, wrinkle or twist the carpet.
  • Make sure the seat harness is routed correctly.
  • When installing, reattach the cut area with a wire tie as shown.

CENTRE CONSOLES

Replacement

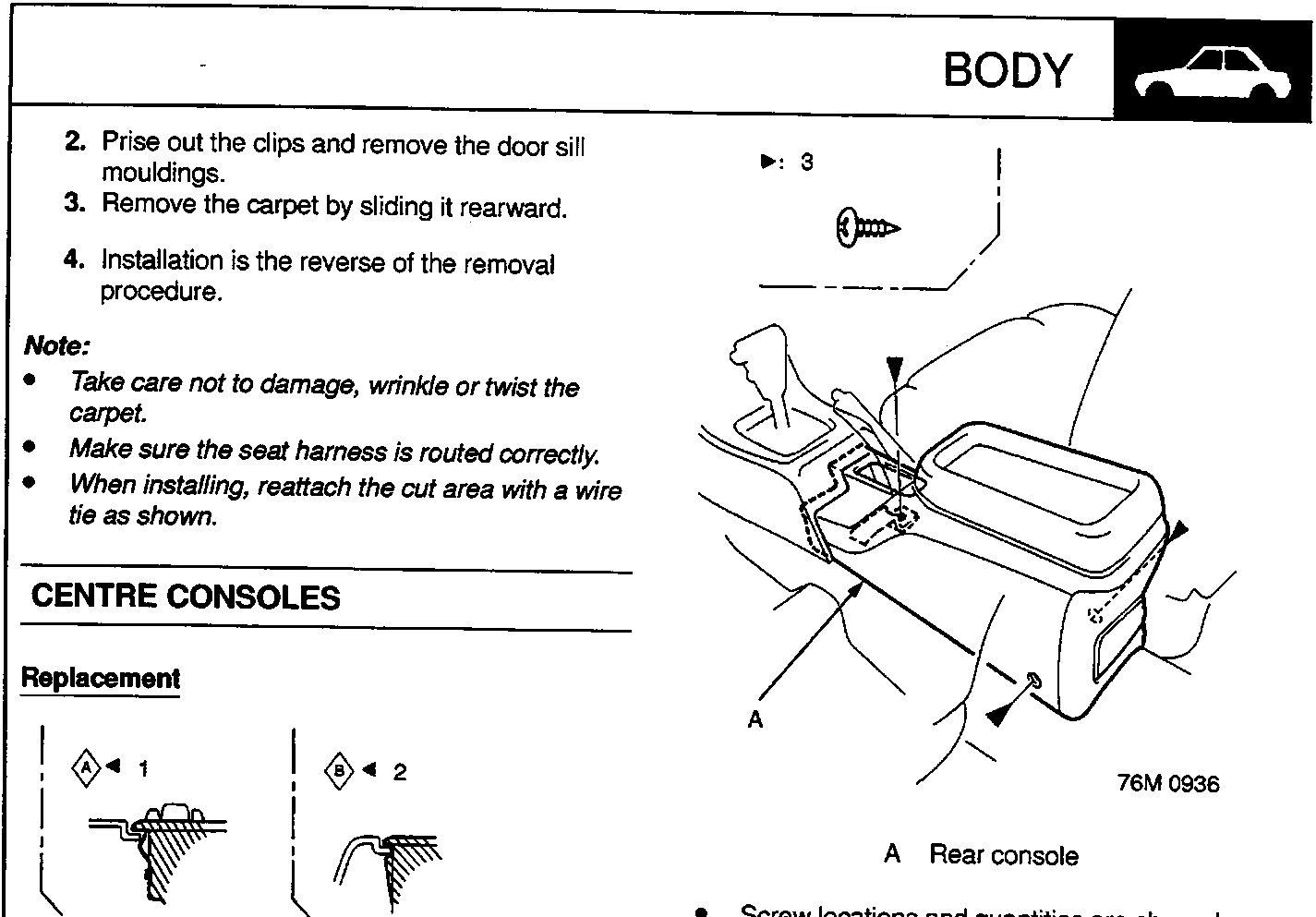

Diagram showing rear console with screw locations marked by black triangles and callout A pointing to the rear console

A   Rear console

  • Screw locations and quantities are shown by black triangles.
  1. Remove the screws, then remove the rear console.
  2. Remove the dashboard lower panel and glove box.

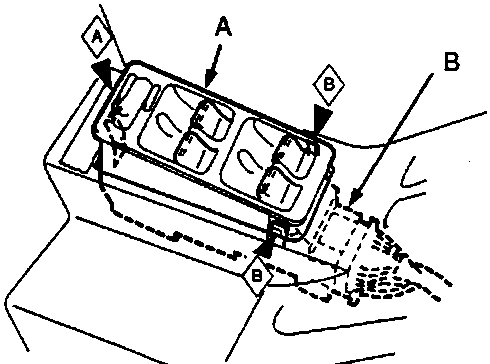

Diagram showing power window switch assembly with callouts A for switch and B for connector, and clip locations marked by black triangles

A   Power window switch
B   Connector

  • Clip locations and quantities are shown by black triangles.

CAUTION: When prising with a flat-bladed screwdriver, wrap it with protective tape to prevent damage.

  1. Prise the clip out with a flat-bladed screwdriver, then remove the power window switch and disconnect the connector.
