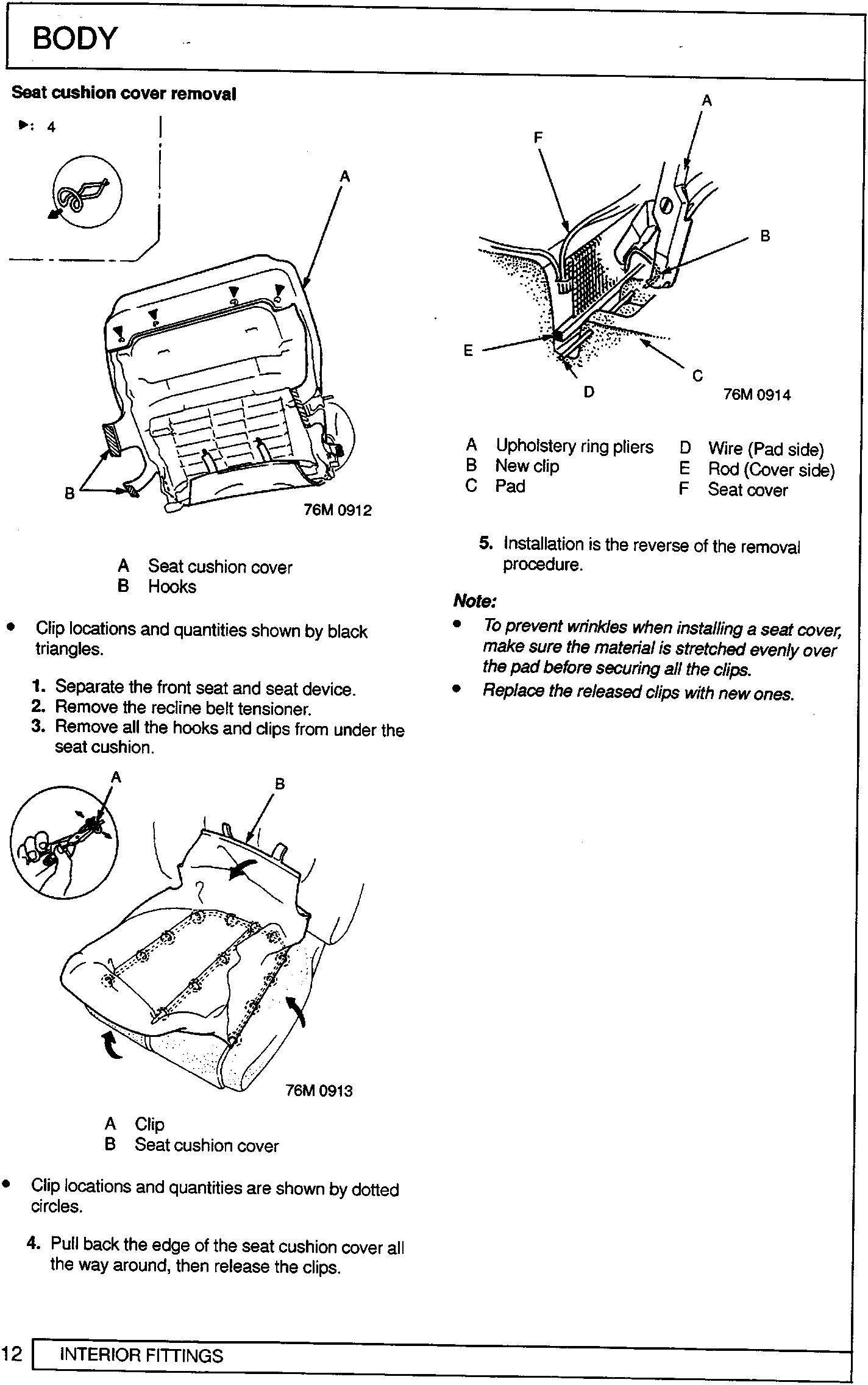

Seat cushion cover removal

Seat cushion cover removal

▶: 4

A   Seat cushion cover
B   Hooks

• Clip locations and quantities shown by black triangles.

1. Separate the front seat and seat device.
2. Remove the recline belt tensioner.
3. Remove all the hooks and clips from under the seat cushion.

A   Clip
B   Seat cushion cover

• Clip locations and quantities are shown by dotted circles.

4. Pull back the edge of the seat cushion cover all the way around, then release the clips.

A   Upholstery ring pliers     D   Wire (Pad side)
B   New clip                                                                         &......   E   Rod (Cover side)
C   Pad                                                                              &......   F   Seat cover

5. Installation is the reverse of the removal procedure.

Note:

• To prevent wrinkles when installing a seat cover, make sure the material is stretched evenly over the pad before securing all the clips.
• Replace the released clips with new ones.
