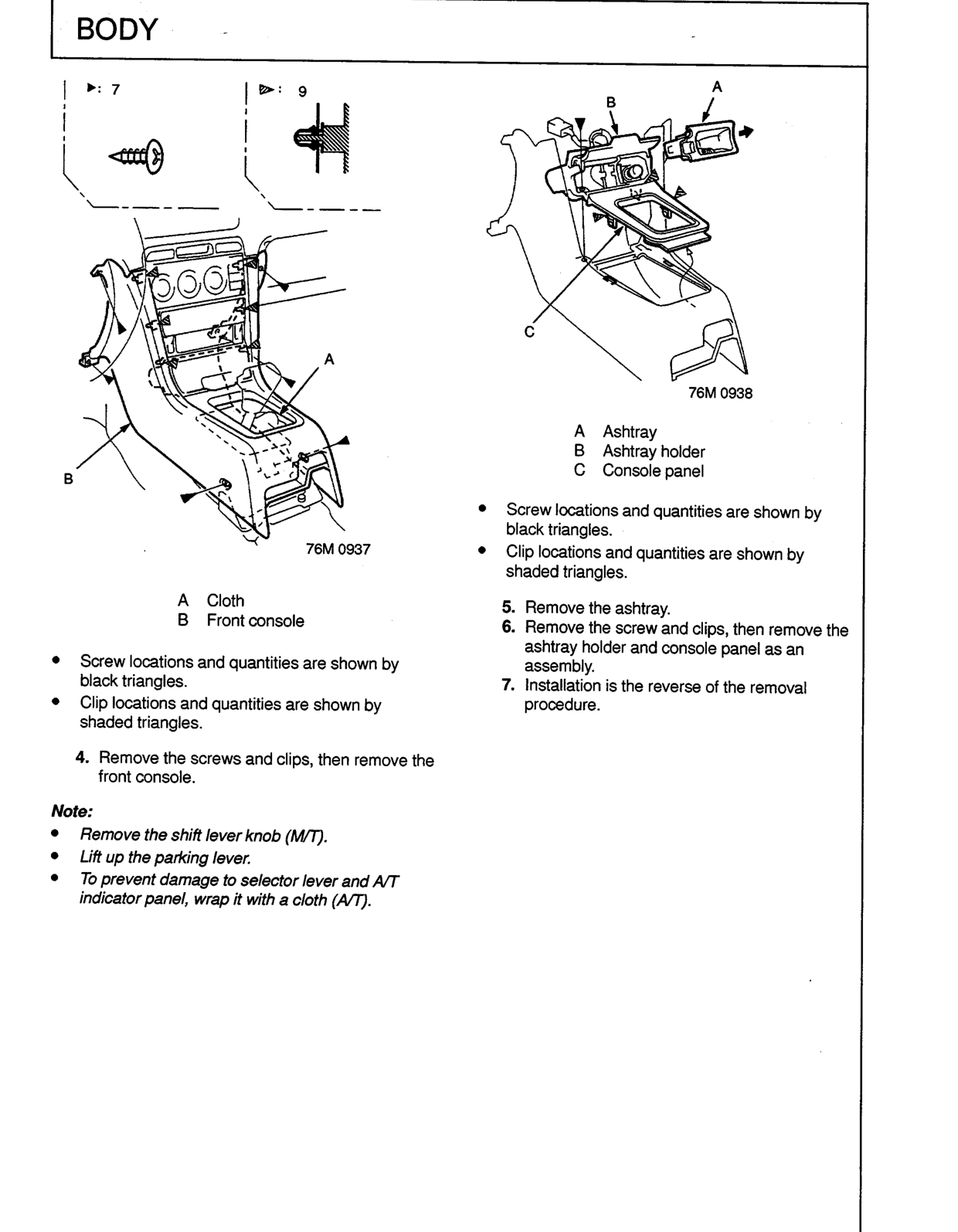

Original page

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Interior fittings › Original page
BodyOriginal page

Note:

  • Remove the shift lever knob (M/T).
  • Lift up the parking lever.
  • To prevent damage to selector lever and A/T indicator panel, wrap it with a cloth (A/T).
  1. Remove the screws and clips, then remove the front console.

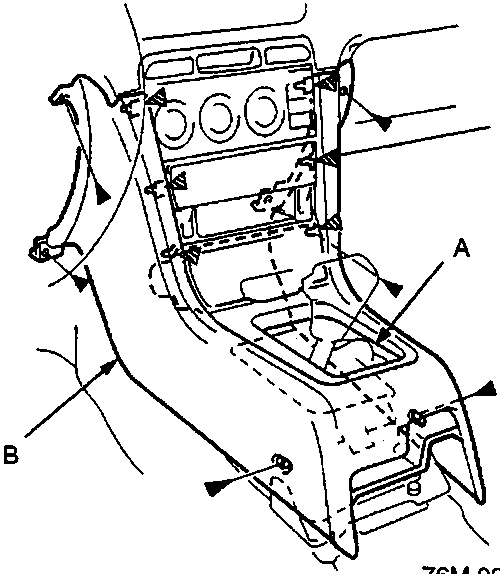

Diagram of front console removal showing screw locations (black triangles) and clip locations (shaded triangles), labeled A Cloth and B Front console.
  • Screw locations and quantities are shown by black triangles.
  • Clip locations and quantities are shown by shaded triangles.

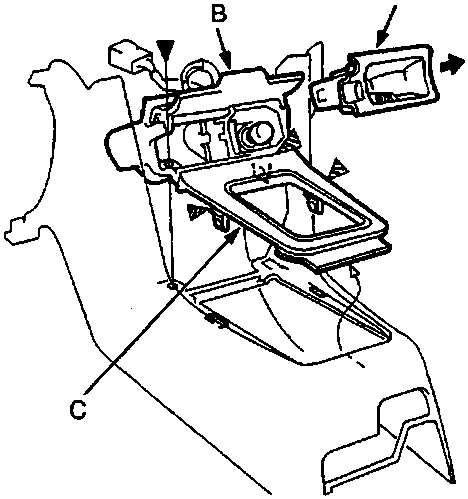

Diagram of ashtray assembly removal showing screw locations (black triangles) and clip locations (shaded triangles), labeled A Ashtray, B Ashtray holder, and C Console panel.
  • Screw locations and quantities are shown by black triangles.
  • Clip locations and quantities are shown by shaded triangles.
  1. Remove the ashtray.
  2. Remove the screw and clips, then remove the ashtray holder and console panel as an assembly.
  3. Installation is the reverse of the removal procedure.
