BodyFixed type

Fixed type

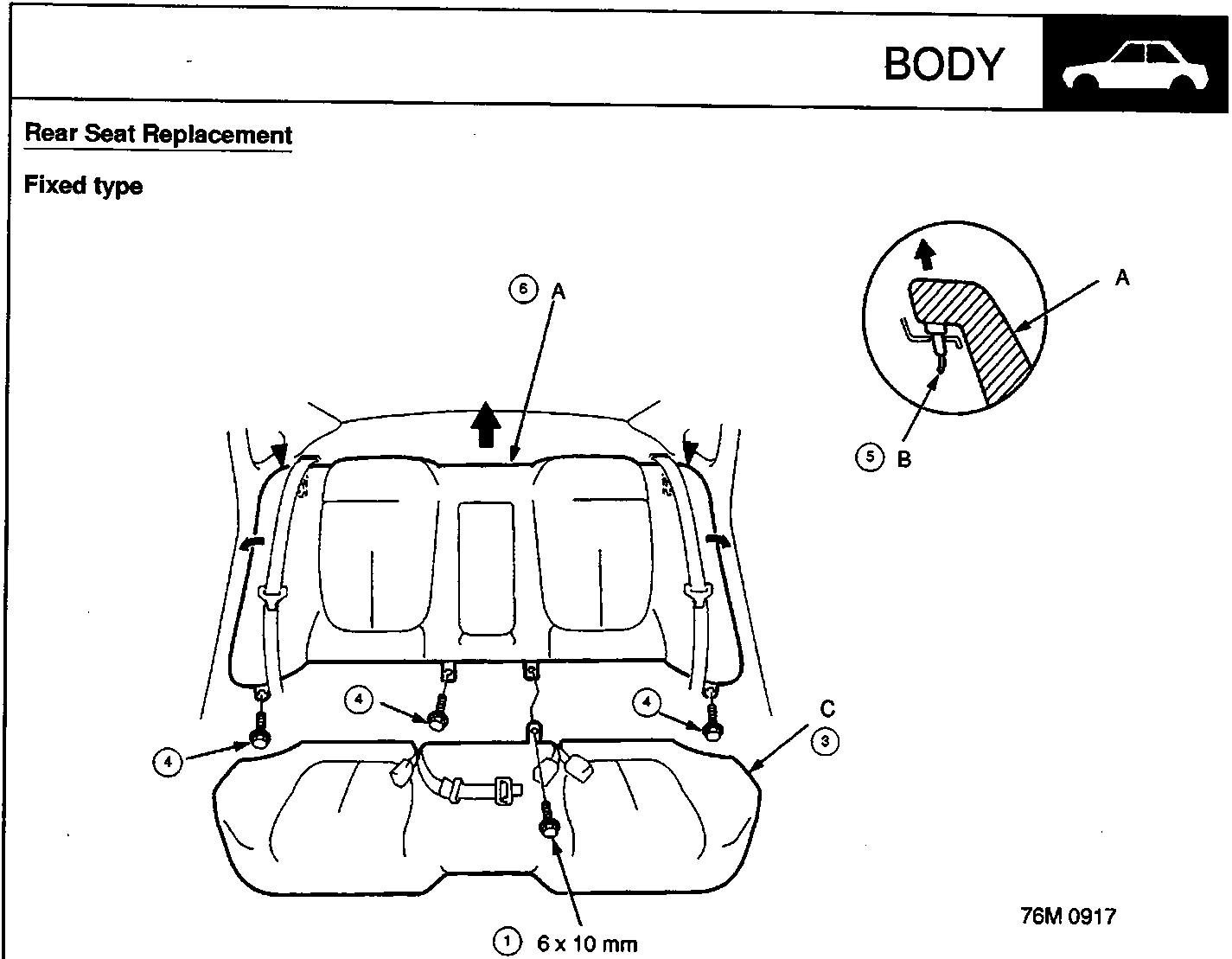

Diagram of rear seat disassembly showing seat-back, hook, and seat cushion with numbered steps and a torque specification of 6 x 10 mm, 10 Nm.
  1. A Seat-back
  2. B Hook
  3. C Seat cushion
  • Numbers in circles indicate disassembly sequence.

Note: Take care not to tear the seams or damage the cover.

Armrest removal

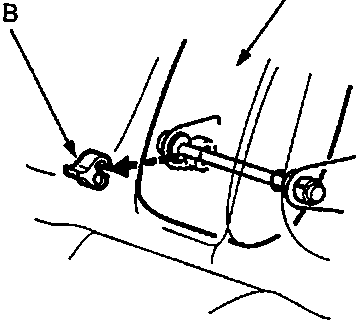

Diagram showing armrest and clip pin assembly.
  1. A Armrest
  2. B Clip pin

Pull the clip pin out of the armrest.

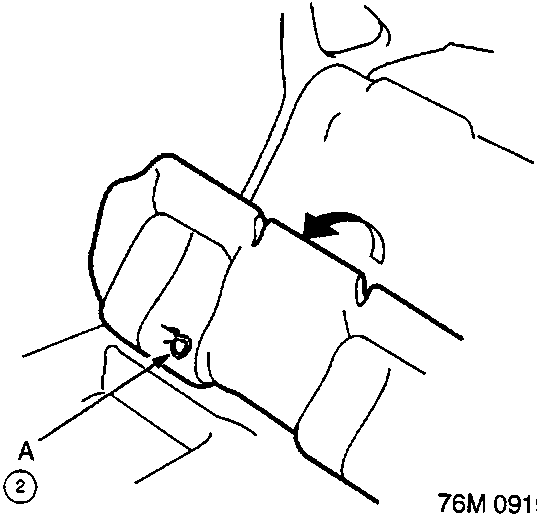

Diagram showing seat cushion rear edge being pulled up at a hook.
  1. A Hook
  • Pull the seat cushion rear edge up at hook, item A.
