Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Manually adjustable

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Interior fittings › Manually adjustable
BodyManually adjustable · page 1 of 2

Manually adjustable

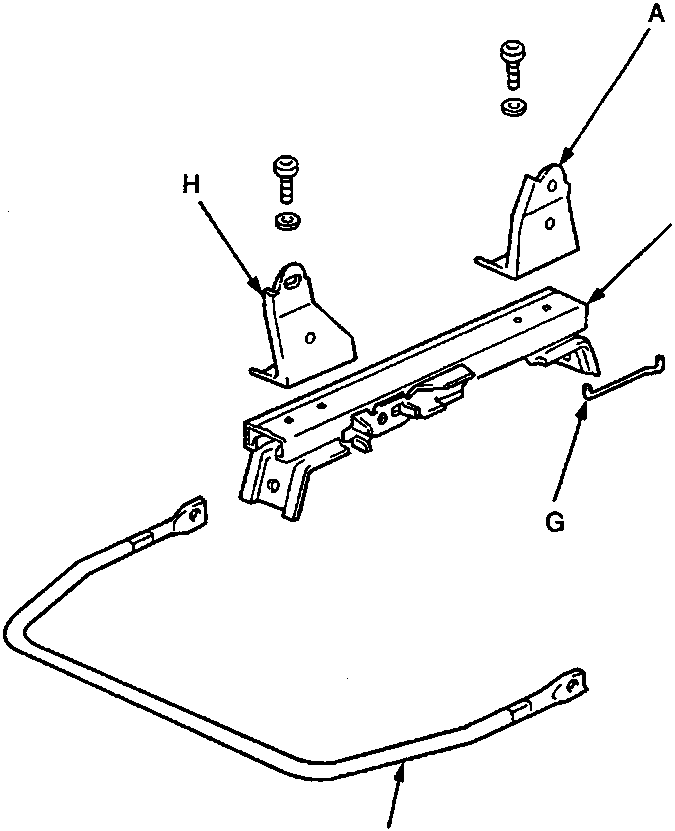

Exploded view of the front seat device showing brackets, tracks, lever and lock spring with callout letters A through H. Torque specification 8 x 1.25 mm 22 Nm indicated for a screw.

8 x 1.25 mm
22 Nm

  1. Rear outer seat bracket
  2. Outer seat track
  3. Rear inner seat bracket
  4. Inner seat track
  5. Front inner seat bracket
  6. Lever
  7. Lock spring
  8. Front outer seat bracket
  • Use TORX T40 where indicated by a black square.

CAUTION: Wear gloves to remove and install the seat track and elevation adjuster.

  1. Remove the front seat device from the front seat.
  2. Disassemble the seat device as shown.
