Body76M 0899 · page 1 of 3

Note: Take care not to scratch the seat covers and body.

  1. Remove the front seat, then take it out from the door opening.

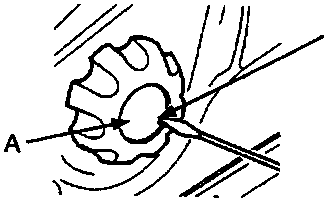

Diagram showing access cap A being prised at position B on a seat adjustment dial

76M 0899

  1. A Access cap
  2. B Prise at this position
  1. Remove the access cap.

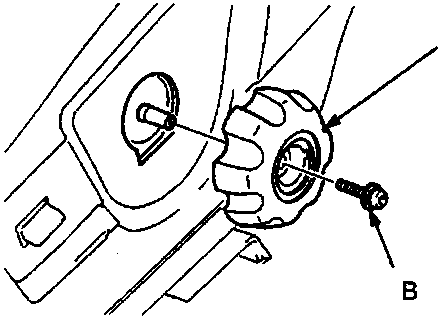

Diagram showing recline dial A and screw B being removed from the seat side

76M 0900

  1. A Recline dial
  2. B Screw
  • Use TORX T25
  1. Remove the screw, then remove the recline dial.

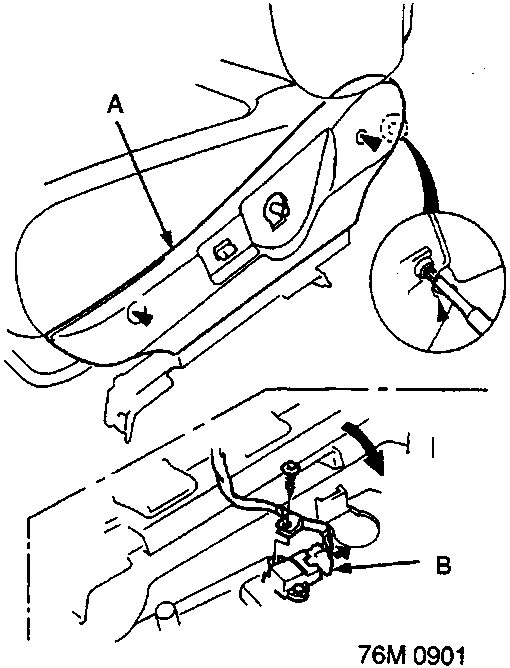

Diagram showing recline cover A, connector B, and screw locations (black triangles) on the seat side mechanism

76M 0901

  1. A Recline cover
  2. B Connector
  • Screw locations and quantities shown by black triangles.
    (Use TORX T20)
  1. Remove the screws and disconnect the connector (power height seat), then remove the recline cover.
