Replacement

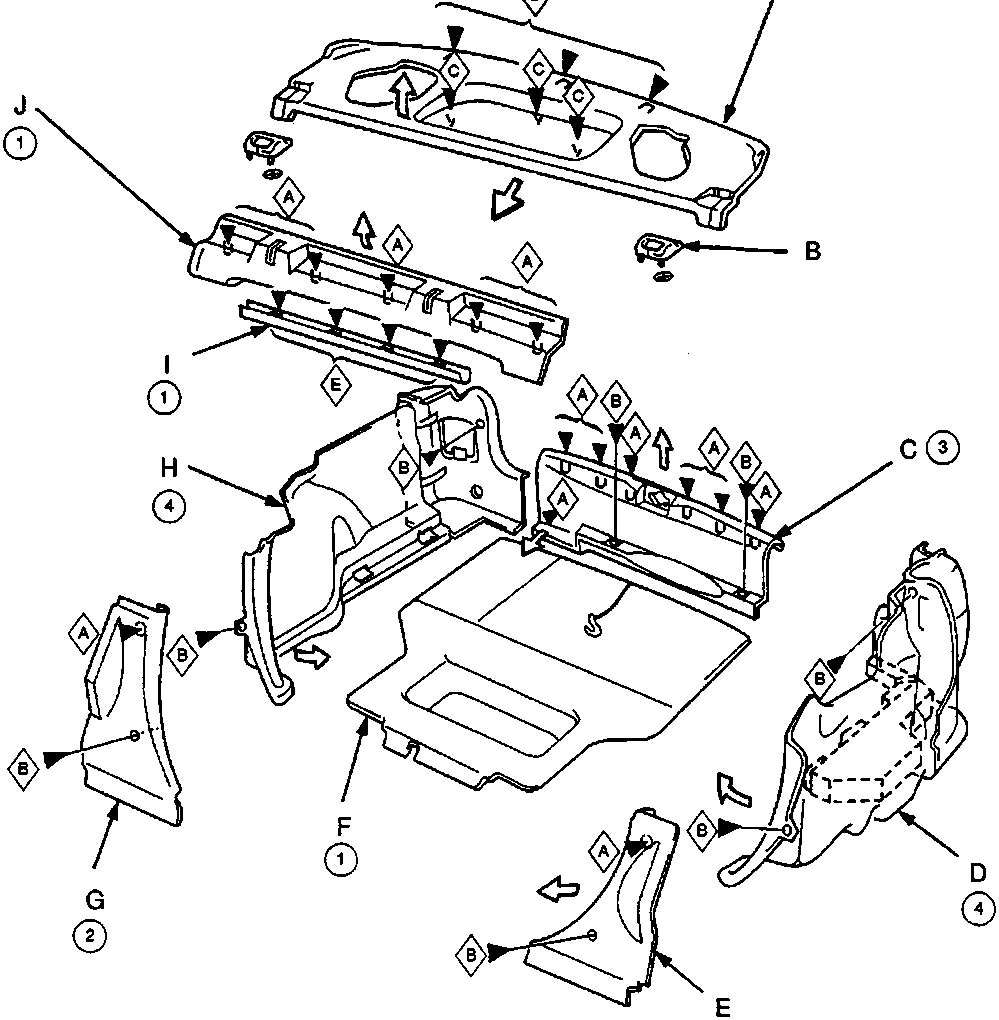

Exploded view of boot trim components showing disassembly sequence and clip locations.
  1. A Rear shelf
  2. B Rear seat belt through cap
  3. C Rear trim panel
  4. D Left boot side panel
  5. E Left boot front panel
  6. F Spare tyre lid
  7. G Right boot front panel
  8. H Right boot side panel
  9. I Upper trim
  10. J Rear shelf trim
  • Numbers in circles indicate disassembly sequence.
  • Clip locations are shown by black triangles.
  • Clip types and quantities are given in insets.
  • On the rear shelf, item B, remove the rear pillar trim first.

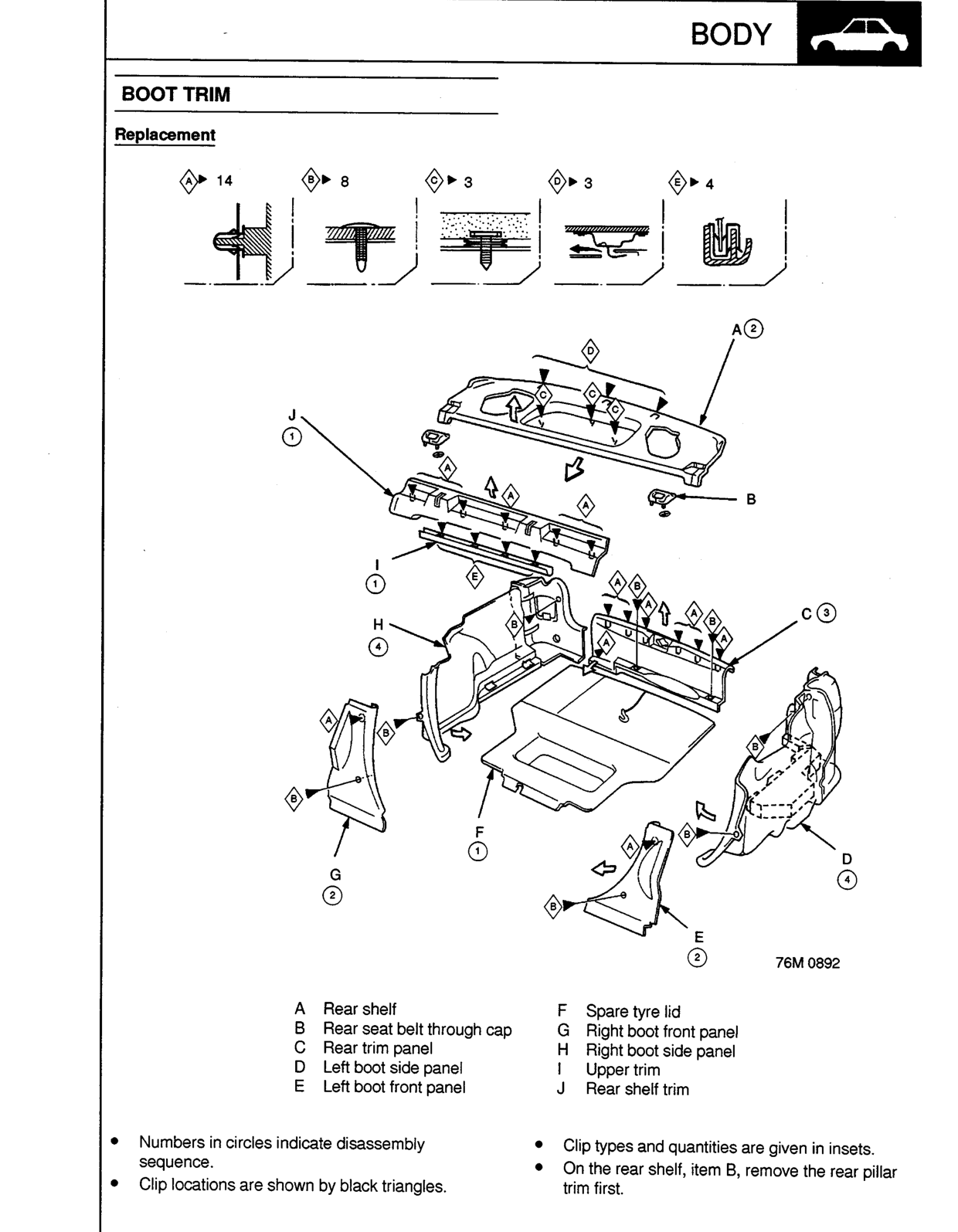

Original page
