Front Seat Belt Replacement

Front Seat Belt Replacement

76M 0929

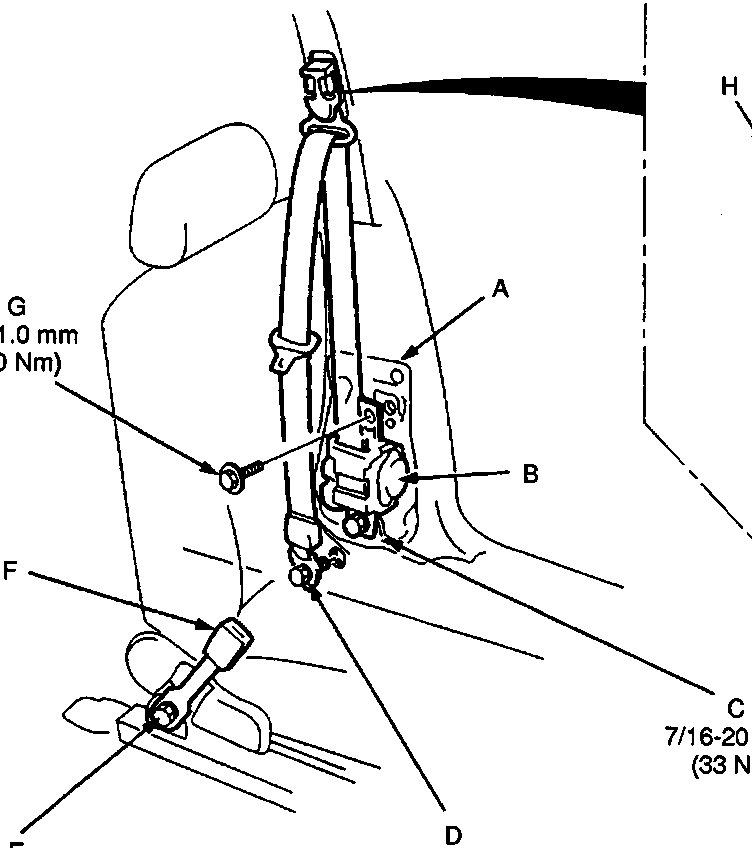

• A Protect bag
• B Retractor
• C Retractor bolt
• D Lower anchor bolt
• E Centre anchor bolt
• F Seat belt buckle
• G Retractor mounting bolt

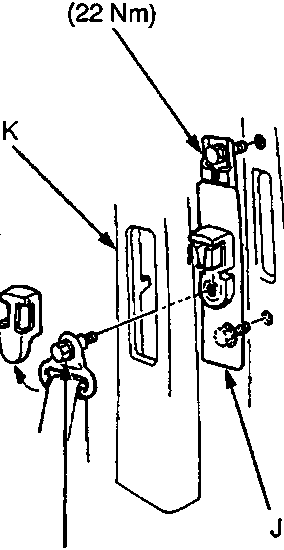

• H Anchor cover
• I Upper anchor bolt
• J Slide anchor adjuster

• Remove the front pillar trim at position 'K'.

CAUTION: Check the seat belts for damage and replace them if necessary. Be careful not to damage them during removal and installation.

1. Remove:
   • Centre pillar lower trim.
   • Front seat.
2. Remove the all three anchor bolts, the retractor bolt and retractor mounting bolt, then remove the seat belt and seat belt buckle.
3. Remove the front pillar trim, then remove the shoulder anchor adjuster.

Note: When removing the anchor bolts and retractor bolt, use a 17 mm socket or box-end wrench.
