Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Seat cushion cover removal (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Interior fittings
BodySeat cushion cover removal · page 2 of 2

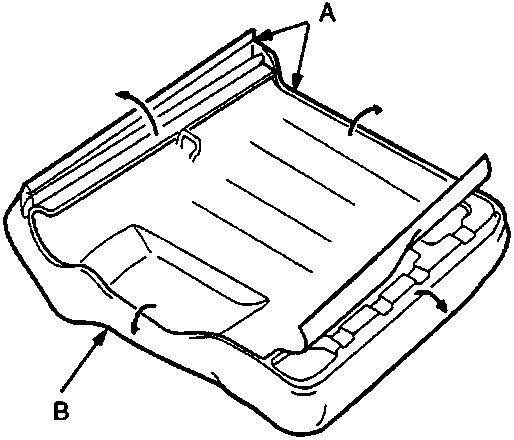

Diagram showing the seat-back cover (B) being detached from hooks (A) on the seat back frame.

Note:

  • To prevent wrinkles when installing seat covers, make sure the material is stretched evenly over the pad before securing all the clips.
  • Replace the released clips with new ones.

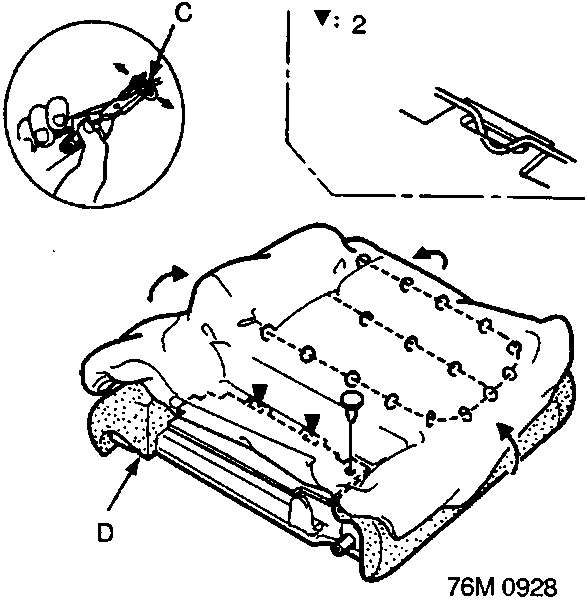

Diagram showing clip locations (circles) and hook locations (black triangles) on the seat-back cover, with a close-up of a clip (C) being removed and the pad (D).
  1. Hooks
  2. Seat-back cover
  3. Clip
  4. Pad
  • Clip locations and quantities indicated by a circle.
  • Hook locations and quantities are shown by black triangles.
  1. Installation is the reverse of the removal procedure.
