Seat cushion cover removal

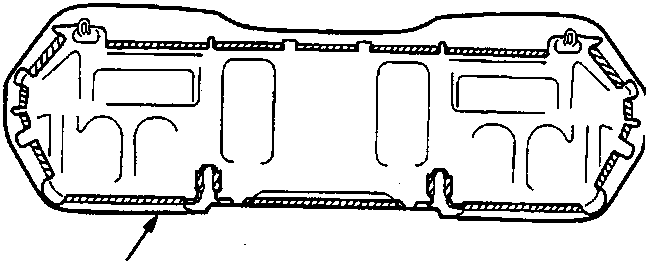

Diagram showing the underside of a seat cushion frame with hook locations indicated by shading, labeled A.
  • Shaded areas indicate hook locations.

CAUTION: Wear gloves to remove and install the seat cover.

  1. Remove the rear seat cushion and seat-back.
  2. Remove all hooks of the seat cushion and seat-back covers.
  3. Pull back the edge of the seat covers all the way around, then release the clips.

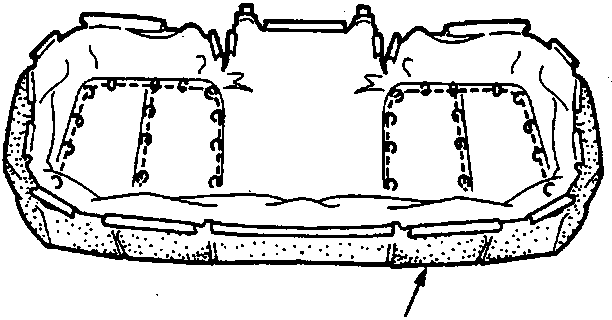

Diagram showing the rear seat cushion with the cover partially removed, exposing the internal structure and pad, labeled B.

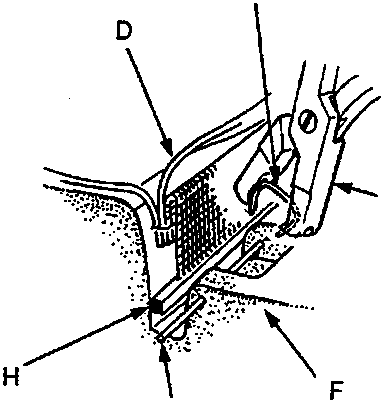

Detailed diagram illustrating the removal of a seat cover clip using upholstery ring pliers, with labels C through H.

76M 0927

  • A Seat cushion cover
  • B Pad
  • C New clip
  • D Seat cover
  • E Upholstery ring pliers
  • F Pad
  • G Wire (Pad side)
  • H Rod (Cover side)
