BodyInterior trim · page 1 of 2

INTERIOR TRIM

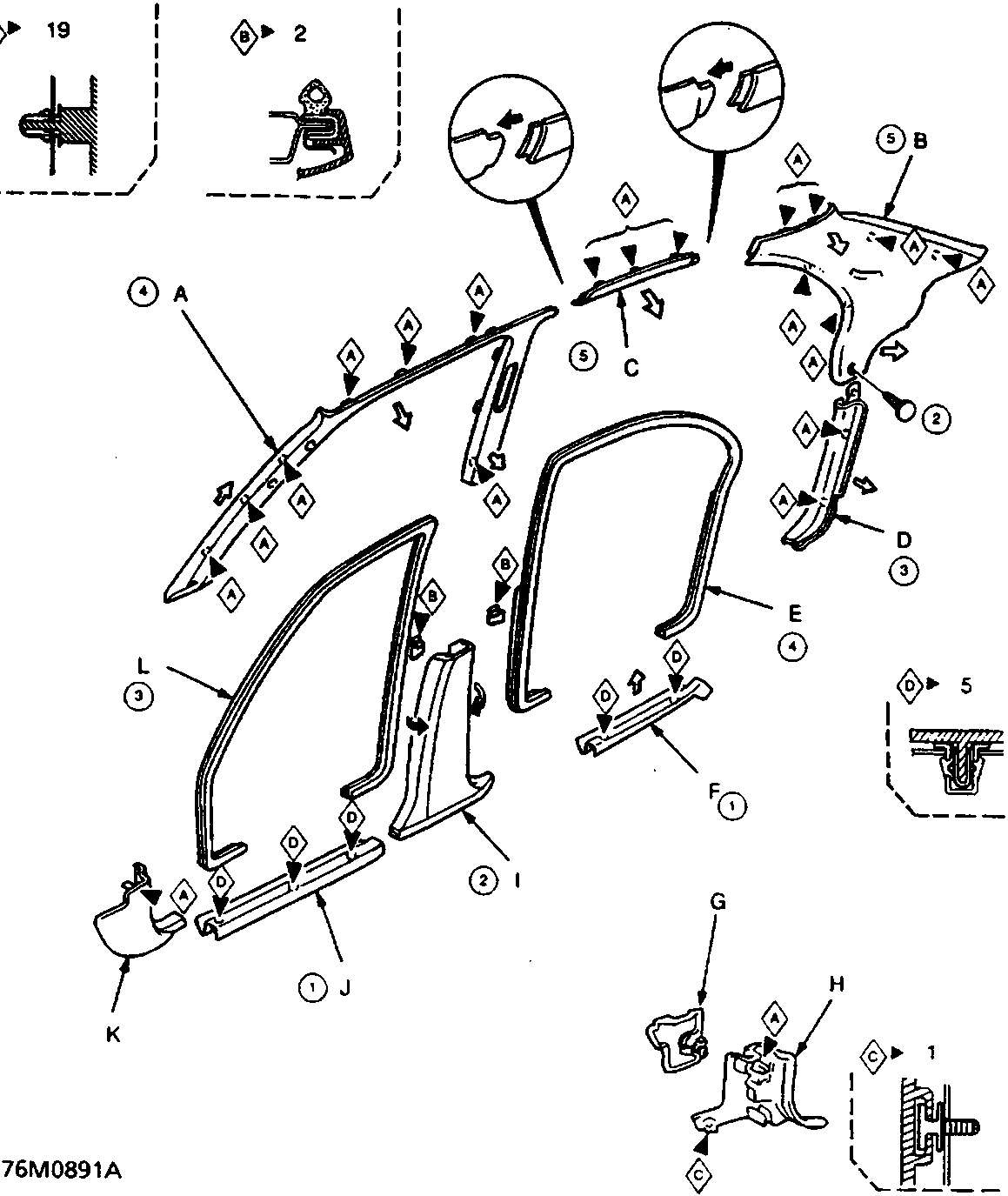

Exploded view diagram of interior trim components including pillars, door trims, and kick panels with callout letters A through L and detail insets 1 through 5. Figure number 76M0891A.
AFront pillar trim
BRear pillar trim panel
CRear roof side trim
DSide seat trim
ERear door trim
FRear door sill moulding
GFuse panel (left side)
HKick panel (left side)
ICentre pillar lower trim
JFront door sill moulding
KKick panel
LFront door trim

Continued on next page
