Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Headliner

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Interior fittings › Headliner
BodyHeadliner · page 1 of 2

HEADLINER

Replacement

▶: 2

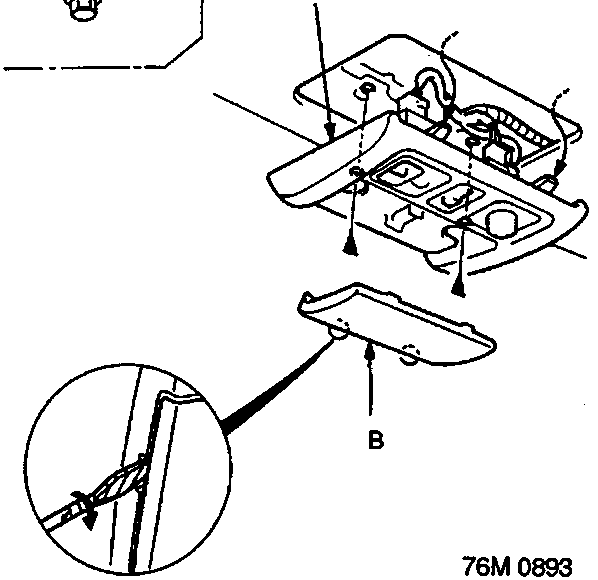

Exploded view of the front ceiling light showing the main unit (A) and the lens (B), with a circular inset detailing the removal tool engagement.

A Front ceiling light
B Lens

  • Bolt locations and quantities are shown by black triangles.
  1. Remove the front ceiling light.

▶: 3

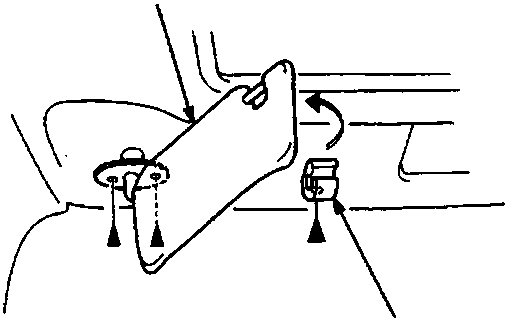

Diagram showing the sunvisor (A) and its holder (B) attached to the vehicle interior, with arrows indicating removal direction.

A Sunvisor
B Holder

  • Screw locations are shown by black triangles.
  1. Remove the sunvisors and holders on each side.

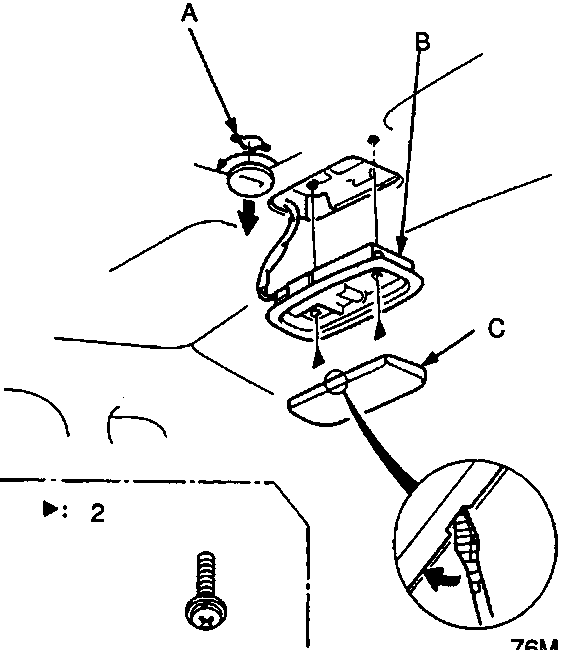

Exploded view of the rear ceiling light assembly showing the socket plug (A), rear ceiling light (B), and lens (C), with a circular inset showing the removal tool.

A Socket plug
B Rear ceiling light
C Lens

  • Remove the socket plug, item A, by turning it 90°.
  • Screw locations and quantities are shown by black triangles.
  1. Remove the rear ceiling light and sunroof socket plug (sunroof model).

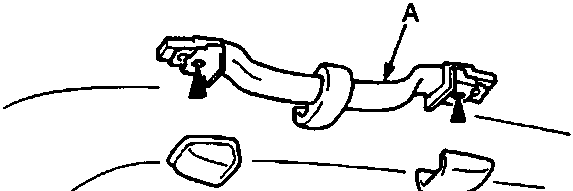

Diagram of the grab handle (A) detached from the vehicle roof, showing the mounting points.
Close-up detail of the grab handle mounting clip components.

▶: 2

A Grab handle

  • Screw locations and quantities are shown by black triangles.
  1. Remove the grab handles on each side.

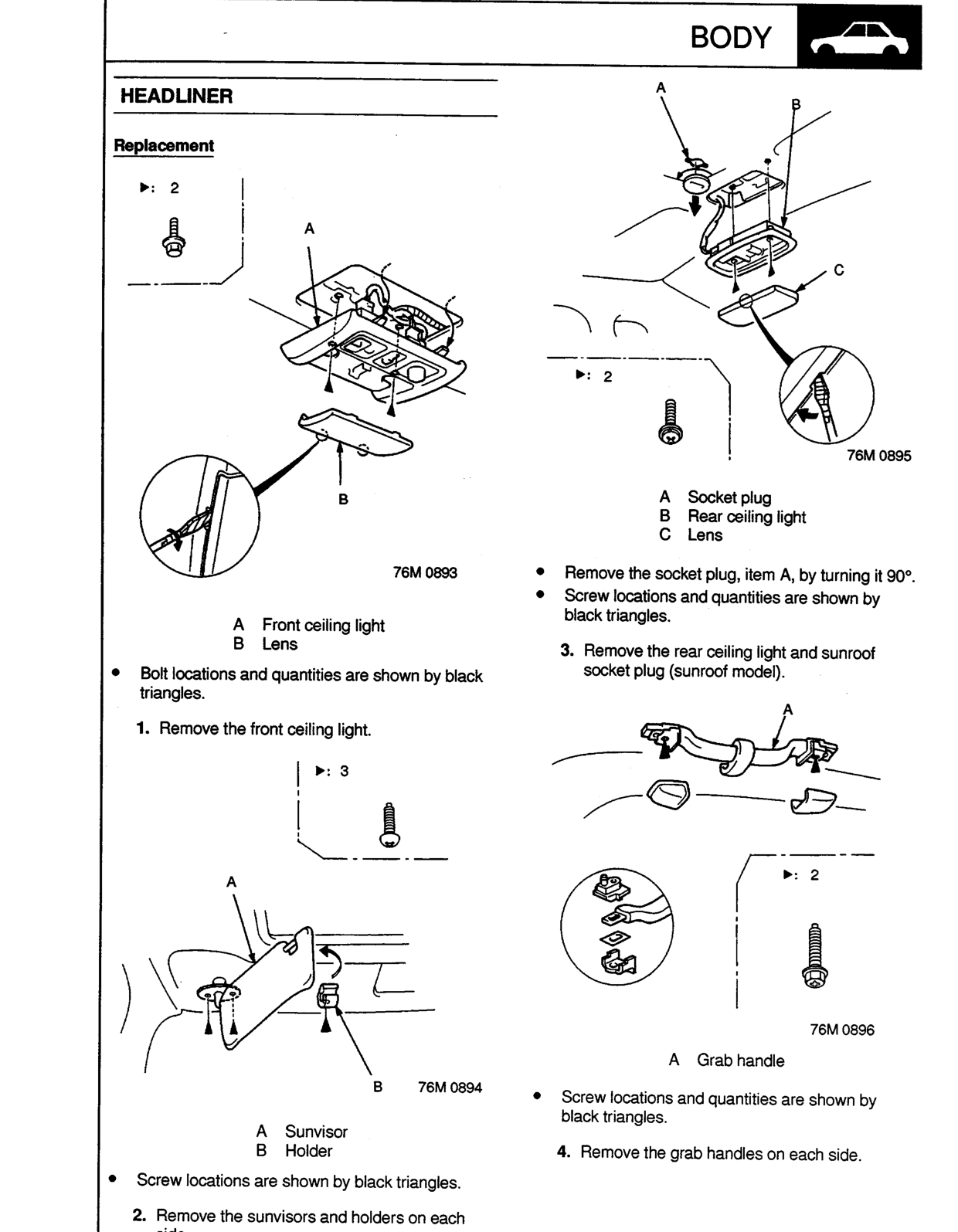

Original page
