Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

76M 0899 (page 2 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Interior fittings
Body76M 0899 · page 2 of 3

7/16-20 UNF
35 Nm

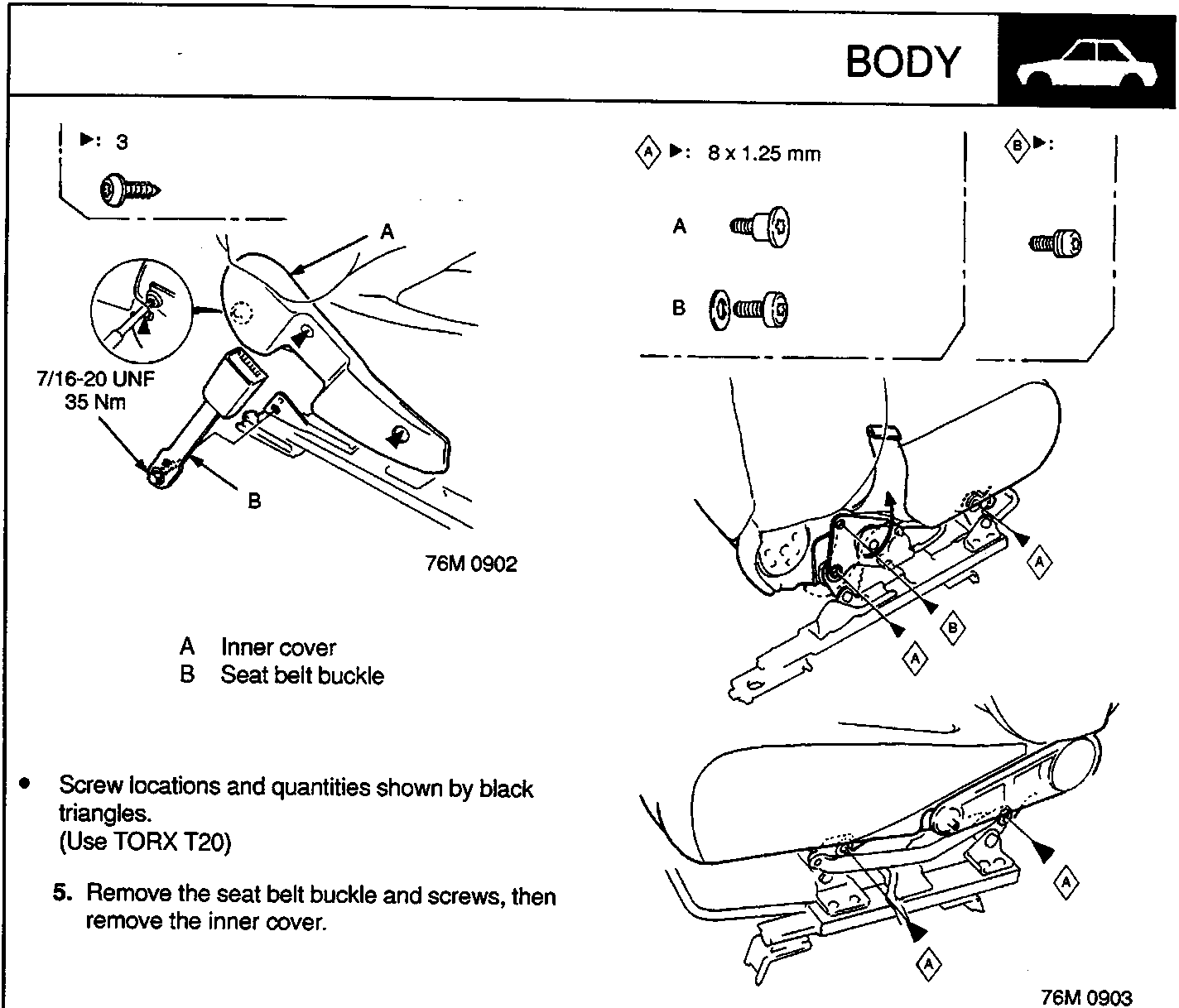

Diagram showing seat belt buckle and inner cover removal with callouts A (Inner cover) and B (Seat belt buckle), and screw detail 8 x 1.25 mm
  • Screw locations and quantities shown by black triangles.
    (Use TORX T20)
  1. Remove the seat belt buckle and screws, then remove the inner cover.
Diagram showing power height and manual seat bolt locations at the seat cushion base
  • Bolt locations and quantities shown by black triangles.
    (Use TORX T40)
  1. Remove the bolts on each side at the seat cushion.
