Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

86M 1971 (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Wire harness and earth locations
Electrical86M 1971 · page 2 of 2

86M 1972

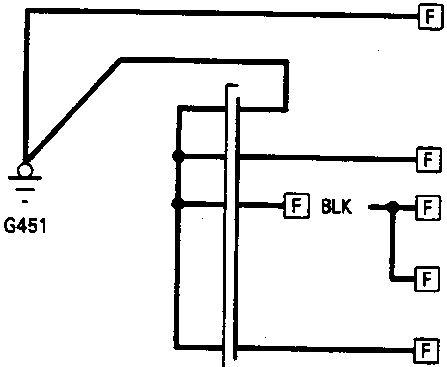

Electrical wiring diagram showing connections for left outer taillight, turn signal lights, power antenna motor, door lock actuators, key cylinder switch, and power mirror defogger. Includes ground point G451 and connectors labeled F and M.
  1. Left outer taillight
  2. Left side turn signal light
  3. Power antenna motor
  4. Left rear turn signal light
  5. Left rear door lock actuator
  6. With security alarm system
  7. Left front door lock actuator
  8. Key cylinder switch
  9. Left power mirror defogger

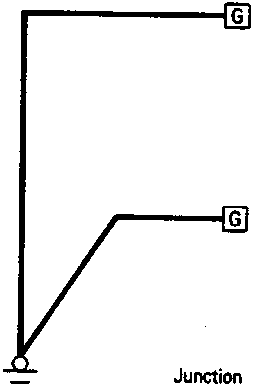

Electrical wiring diagram showing connections for power seat up-down motor, right rear door lock actuator, A/T gear position switch, key-off operation control unit, master power window switch, right side turn signal light, power window motor, door lock control unit, driver's door lock actuator, key cylinder switch, power mirror switch, and right power mirror defogger. Includes junction connector, ground point G501, and connectors labeled G, K, E, J, and M.
  1. Power seat up–down motor
  2. Right rear door lock actuator
  3. (With security alarm system)
  4. A/T gear position switch
  5. (Without security alarm system)
  6. Key–off operation control unit
  7. Master power window switch
  8. Right side turn signal light
  9. Power window motor
  10. Door lock control unit
  11. (Without keyless entry system)
  12. Driver's door lock actuator
  13. Key cylinder switch
  14. Power mirror switch
  15. Right power mirror defogger
E : Main wire harness K : Right rear door wire harness
F : Side wire harness L : Front passenger's door wire harness
G : Floor wire harness M : Left rear door wire harness
J : Driver's door wire harness
